yarn add react-native-safe-area-context

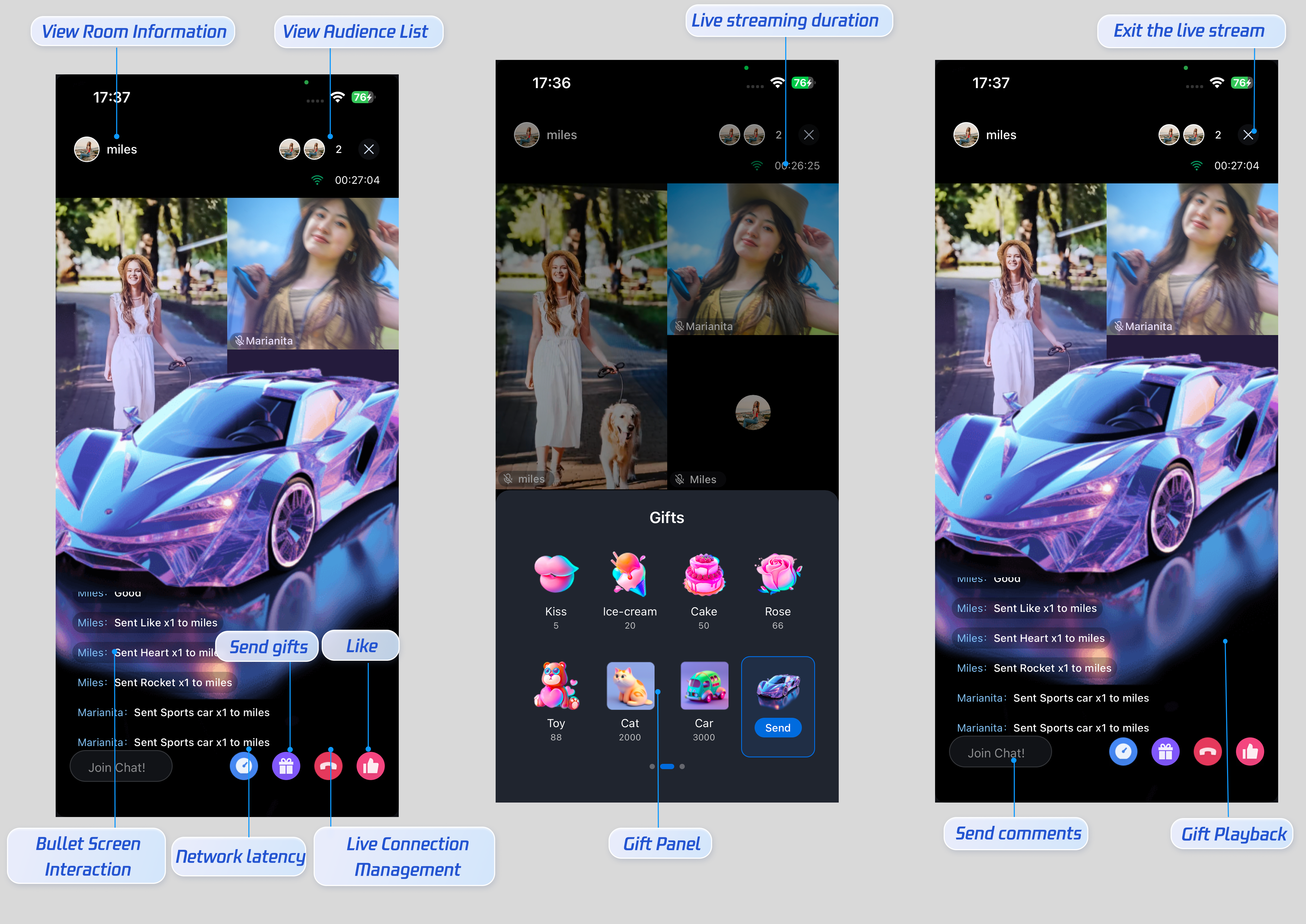

react-native-tuikit-live provides a complete audience-side UI and business logic for live streaming. To display the audience viewing page, configure the entry point for calling LiveAudiencePage based on your business logic, then follow these steps to navigate to the audience viewing page:useState for a simple page switching. For production apps, it is recommended to use navigation libraries like React Navigation for page management. To understand how to integrate navigation libraries, refer to React Navigation official documentation./*** Simple navigation example - manage page transitions using useState*/import React, { useState } from 'react';import { View, Button, StyleSheet } from 'react-native';import { SafeAreaProvider } from 'react-native-safe-area-context';import { LiveAudiencePage } from 'react-native-tuikit-live';import { useLiveListState } from 'react-native-tuikit-atomic-x';type PageType = 'home' | 'liveAudience' | 'liveEnd';function MyApp() {// In real scenarios, liveID is typically sourced from:// 1. Parameters when entering a live stream from the Live Stream List// 2. Route parameters// 3. Server API response// Here, '1234' is used as an exampleconst liveID = '1234'const { joinLive } = useLiveListState(liveID)const [currentPage, setCurrentPage] = useState<PageType>('home');const [endedLiveID, setEndedLiveID] = useState<string>('');// Navigate to the audience viewing pageconst handleJumpLiveAudience = async () => {await joinLive({liveID,onSuccess: () => {setCurrentPage('liveAudience');},onError: (error) => {console.error('Failed to join live room:', error);// Handle the error, e.g., notify the user}})};// Return from the audience viewing pageconst handleBackFromAudience = () => {setCurrentPage('home');};// End the live streamconst handleEndLive = (liveID?: string) => {setEndedLiveID(liveID || '');setCurrentPage('liveEnd');};return (<SafeAreaProvider>{currentPage === 'home' && (<View style={styles.container}><Button title="Enter Audience View" onPress={handleJumpLiveAudience} /></View>)}{currentPage === 'liveAudience' && (<LiveAudiencePageonBack={handleBackFromAudience}onEndLive={handleEndLive}/>)}{currentPage === 'liveEnd' && (<View style={styles.container}><Button title="Return to Home" onPress={() => setCurrentPage('home')} /></View>)}</SafeAreaProvider>);}const styles = StyleSheet.create({container: {flex: 1,justifyContent: 'center',alignItems: 'center',},});export default MyApp;
TUILiveKit supports extensive customization of the audience viewing page, so you can tailor features and styles to your business requirements.TUILiveKit are located in the tuikit-atomic-x/src/static/images directory. Some examples are listed below. To update an icon, simply replace the corresponding file in this directory.Icon Path | Description |
/static/images/dashboard.png | “Dashboard” icon in the bottom action bar |
/static/images/link-guest.png | “Apply for co-hosting” icon in the bottom action bar |
/static/images/live-gift.png | “Gift” icon in the bottom action bar |
/static/images/live-like.png | “Like” icon in the bottom action bar |
/static/images/close.png | “Leave live room” icon in the top action bar |

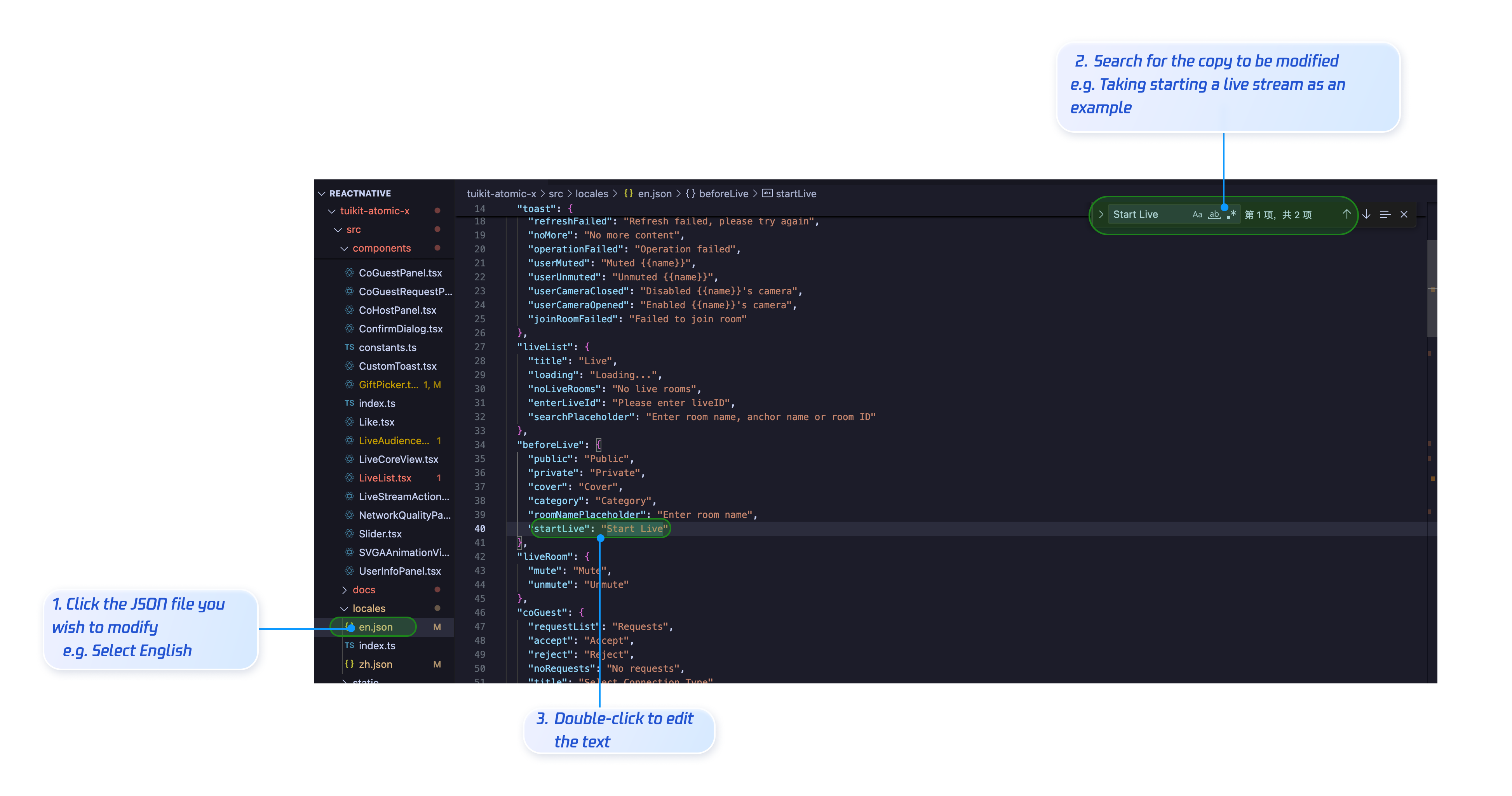

tuikit-atomic-x/src/locales/ directory.
zh.json - Chinese texten.json - English textlive/src/pages/LiveAudience/index.tsx and insert the following code:<View style={{ flex: 1 }}>{/* ...other content... */}<Viewstyle={{position: 'absolute',top: 100,left: 15,width: 100,height: 30,backgroundColor: 'rgba(0, 0, 0, 0.3)',borderRadius: 22.5,flexDirection: 'row',justifyContent: 'center',alignItems: 'center',}}>{/* Replace the image address with your resources */}<Imagestyle={{ width: 18, height: 18 }}source={require('/static/images/gift_heart0.png')}resizeMode="contain"/><Text style={{ color: '#fff', fontSize: 12 }}>8888</Text></View></View>

{/* <TouchableOpacitystyle={styles.actionBtn}onPress={showGiftPicker}activeOpacity={0.7}><Imagesource={require('react-native-tuikit-atomic-x/src/static/images/live-gift.png')}style={styles.actionBtnIcon}resizeMode="contain"/></TouchableOpacity> */}
Feature | Description | Integration Guide |
Host Live Start | Complete workflow for host live start, including pre-stream setup and post-stream interaction | |
Live Stream List | Displays the Live Stream List interface and features, including list and room details |
tuikit-atomic-x/src/components/LiveAudienceList.tsx component and add the audience level display code:<View style={styles.audienceInfo}>.......{/* Audience level */}<Text style={styles.audienceLevel}>{level}</Text><View style={styles.audienceAvatarContainer}><Image source={{ uri: avatarURL }} style={styles.audienceAvatar} /></View></View>
