This article introduces the overview of the Custom Speed monitoring module for the React Native platform and the usage of features. For detailed information, please refer to React Native Integration Guide.
Filter region
Metrics Overview

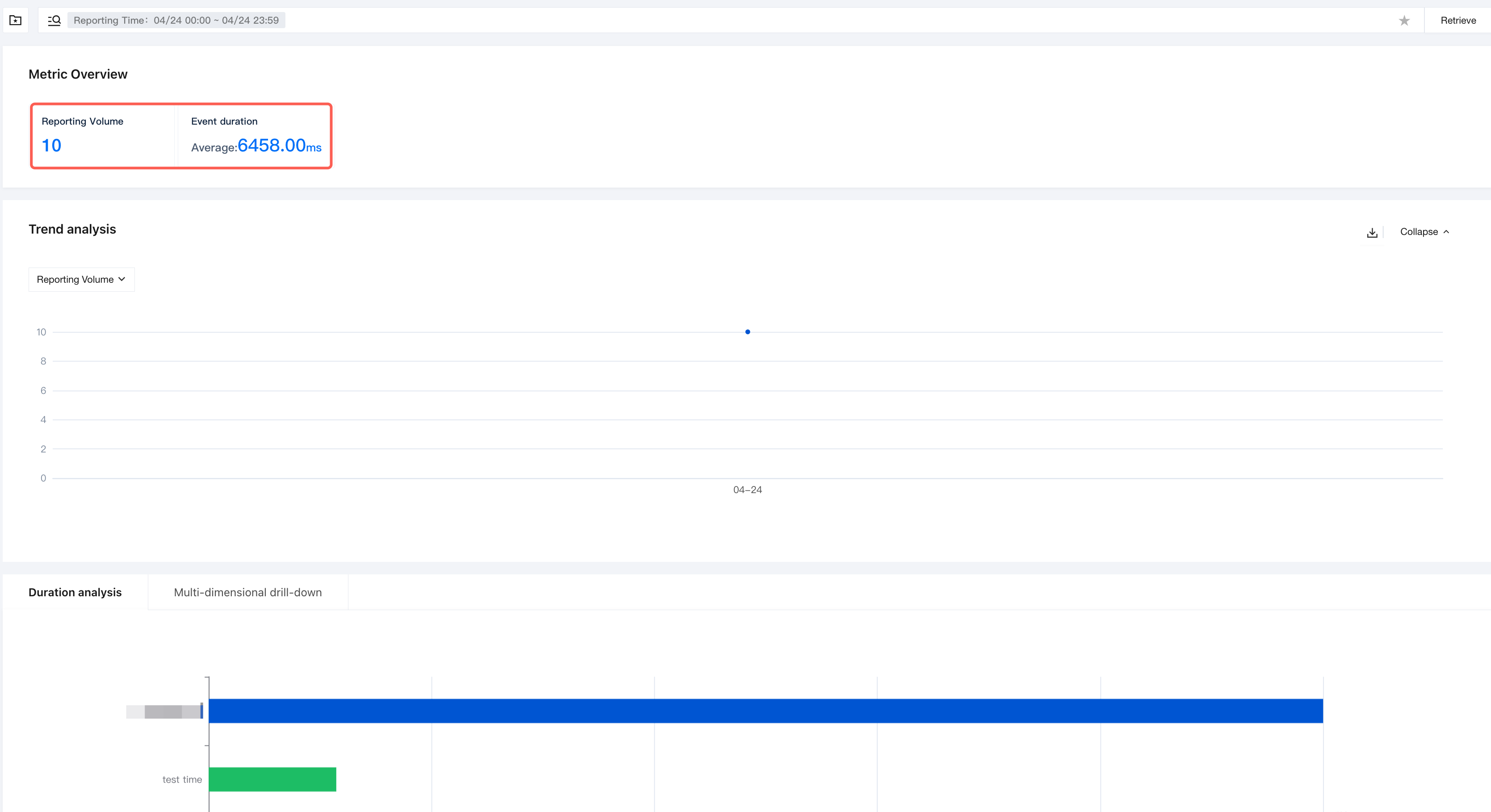

Display core baseline data of custom speed test events to rapidly assess the overall performance.
Metric Description:
Reporting Volume: indicates the total number of custom speed test events reported within the specified time range. For example, the 5 in the figure below indicates that a total of 5 custom speed test events were reported.
Event Duration: reflects the average duration of all reported events. A higher value indicates more sluggish operations, for example, 6458ms in the figure below.
Abnormality Identification: If the event duration average suddenly increases (such as exceeding 2000ms) or the reporting volume surges, you can directly go to the Trend analysis or Multi-dimensional drill-down module for further investigation.
Trend analysis
Analyze the trend of event reporting volume over time to determine whether the issue is sporadic or persistent.

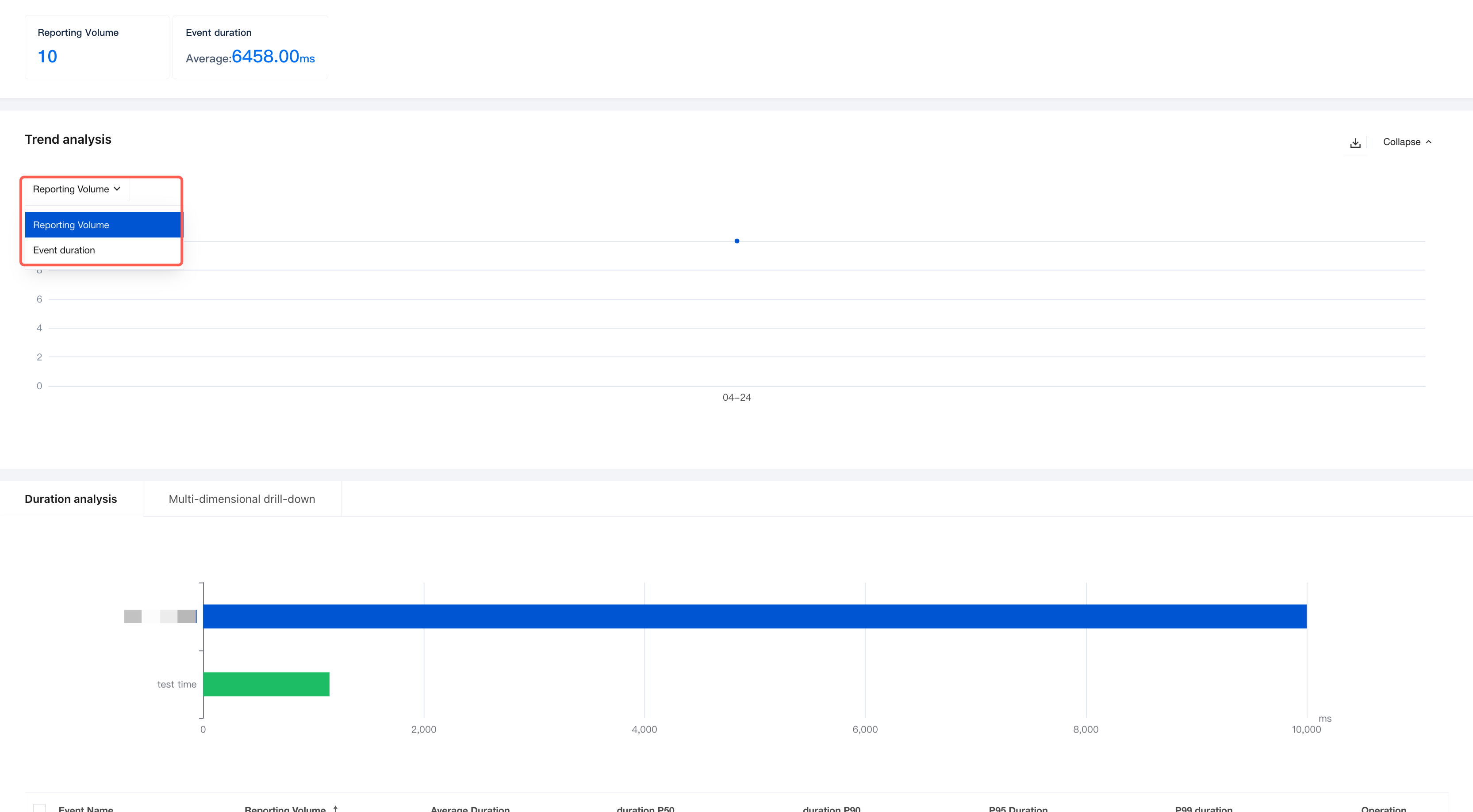

Metric Switching: Click the Reporting Volume dropdown to switch to the Event Duration metric and view temporal trends from different dimensions.
Timeline Interaction: Hover over data points on the timeline to view specific values at that time point. Supports zooming the timeline to adjust the time granularity, for example, switching from daily to hourly, and focusing on abnormal peak periods, such as the peak on 12-04 in the example below.
Abnormal Point Positioning: Focus on the peaks in the trend chart. Clicking on a peak data point will link to the multi-dimensional drill-down module, allowing you to view the specific event distribution during that time period.
Data Download: Click the Download icon on the right to export trend analysis data within the current time range.
Supports clicking Collapse and Expand to adjust the display state of the module.
Multi-dimensional drill-down
Displays the distribution of custom speed test events by event name dimension to locate abnormal events with excessive duration.

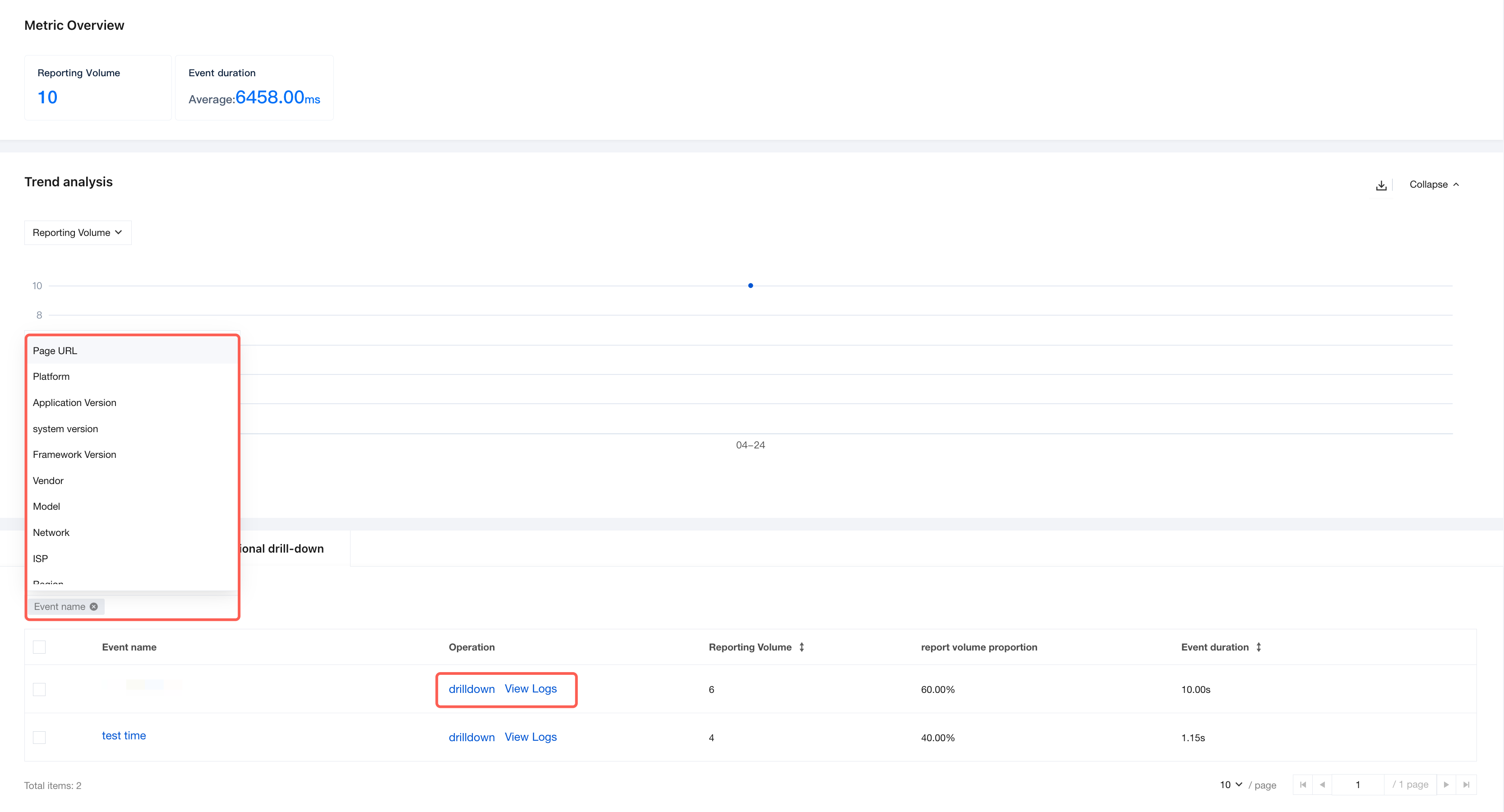

List View: Displays data by Event Name by default, including reporting volume, reporting volume percentage, and average event duration. In the example below, custom speed test is the most frequent event (60.00%), while complexOperation is the most time-consuming event (average 6.00s). Click the dropdown list on the left to drill down into other metrics.
Drill Down and Log Viewing:
Click the drilldown in the operation column to go to the multi-dimensional analysis of the event, for example, drill down by system version or application version.
Click View Logs in the operation column to obtain detailed reporting logs for the event, such as trigger scenarios and device information, to directly locate the technical cause of excessive duration.
