实现离线消息推送的过程如下:
华为 EMUI 是一款深度定制的 Android 系统,后台策略严格,默认情况下第三方 App 不具有自启动权限,App 在后台时很容易被系统强制 kill,因此推荐在华为设备上集成华为推送服务,华为推送服务是华为消息服务(HMS)的一部分,在 EMUI 中属于系统级服务,推送到达率相比第三方更高。目前,即时通信 IM 仅支持华为推送的通知栏消息。
注意:
- 此指引文档是直接参考华为推送官方文档所写,若华为推送有变动,请以 华为推送官网 为准。
- 如果不需要对华为设备做专门的离线推送适配,可以忽略此章节。
包名
、APP ID
、APP Secret
信息。
说明:

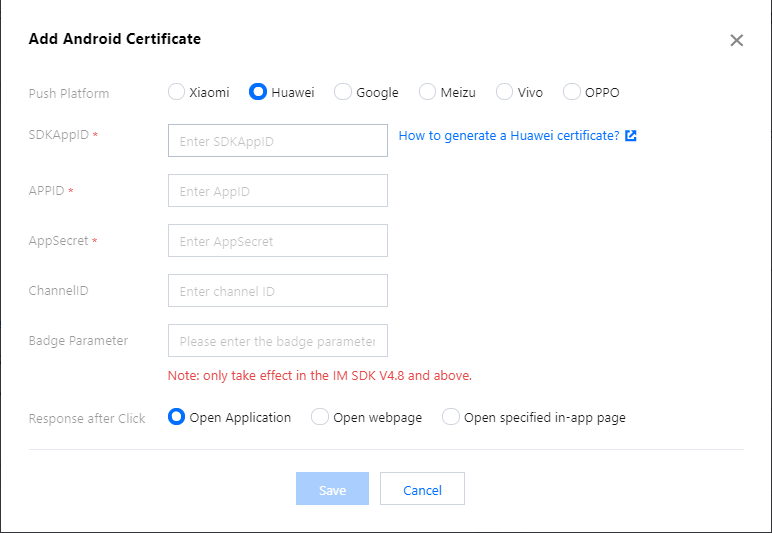

如果您原来已有证书只需变更信息,可以单击【Android平台推送设置】区域的【编辑】进行修改更新。
3. 根据 步骤1 中获取的信息设置以下参数:
Activity
类名,用作华为桌面应用角标显示,请参考 华为桌面角标开发指导书说明:
- 即时通信 IM 默认推送的通知标题为
a new message
。- 阅读此小节前,请确保您已经正常集成并使用即时通信 IM SDK。
- 您可以在我们的 demo 里找到华为推送的实现示例,请注意:华为推送版本更新时有可能会有功能调整,若您发现本节内容存在差异,烦请您及时查阅 华为推送官网,并将文档信息差异反馈给我们,我们会及时跟进修改。
hmsagents\src\main\java
文件夹内的文件拷贝到您项目的 src\main\java 目录中。allprojects {
repositories {
jcenter()
maven {url 'http://developer.huawei.com/repo/'}
}
}
dependencies {
// 华为推送 SDK,2.6.3.301可替换成实际所需要的版本
implementation 'com.huawei.android.hms:push:2.6.3.301'
// 如果碰到报错:com.huawei.hms.api 不存在,这条也需要加上,注意版本号必须相同
// implementation 'com.huawei.android.hms:base:2.6.3.301'
}
<!--HMS-SDK 引导升级 HMS 功能,访问 OTA 服务器需要网络权限-->
<uses-permission android:name="android.permission.INTERNET" />
<!--HMS-SDK 引导升级 HMS 功能,保存下载的升级包需要 SD 卡写权限-->
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<!--检测网络状态-->
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<!--检测 Wi-Fi 状态-->
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE"/>
<!--为了获取用户手机的 IMEI,用来唯一的标识用户。-->
<uses-permission android:name="android.permission.READ_PHONE_STATE"/>
<!--如果是Android 8.0,应用编译配置的 targetSdkVersion>=26,请务必添加以下权限 -->
<uses-permission android:name="android.permission.REQUEST_INSTALL_PACKAGES" />
<!--这里的 com.tencent.qcloud.tim.tuikit 改成您的 App 的包名-->
<permission
android:name="com.tencent.qcloud.tim.tuikit.permission.PROCESS_PUSH_MSG"
android:protectionLevel="signatureOrSystem"/>
<uses-permission android:name="com.tencent.qcloud.tim.tuikit.permission.PROCESS_PUSH_MSG" />
<!--这里的 com.tencent.qcloud.tim.tuikit 改成您的 App 的包名-->
<meta-data
android:name="com.huawei.hms.client.appid"
android:value="appid=1234567890"/> <!--这里的 appid 值修改为您的华为推送 App ID-->
<provider
android:name="com.huawei.hms.update.provider.UpdateProvider"
android:authorities="com.tencent.qcloud.tim.tuikit.hms.update.provider"
android:exported="false"
android:grantUriPermissions="true"/>
<provider
android:name="com.huawei.updatesdk.fileprovider.UpdateSdkFileProvider"
android:authorities="com.tencent.qcloud.tim.tuikit.updateSdk.fileProvider"
android:exported="false"
android:grantUriPermissions="true">
</provider>
<activity
android:name="com.huawei.android.hms.agent.common.HMSAgentActivity"
android:configChanges="orientation|locale|screenSize|layoutDirection|fontScale"
android:excludeFromRecents="true"
android:exported="false"
android:hardwareAccelerated="true"
android:theme="@android:style/Theme.Translucent" >
<meta-data
android:name="hwc-theme"
android:value="androidhwext:style/Theme.Emui.Translucent" />
</activity>
<activity
android:name="com.huawei.hms.activity.BridgeActivity"
android:configChanges="orientation|locale|screenSize|layoutDirection|fontScale"
android:excludeFromRecents="true"
android:exported="false"
android:hardwareAccelerated="true"
android:theme="@android:style/Theme.Translucent" >
<meta-data
android:name="hwc-theme"
android:value="androidhwext:style/Theme.Emui.Translucent" />
</activity>
<service
android:name="com.huawei.hms.support.api.push.service.HmsMsgService"
android:enabled="true"
android:exported="true"
android:process=":pushservice">
<intent-filter>
<action android:name="com.huawei.push.msg.NOTIFY_MSG" />
<action android:name="com.huawei.push.msg.PASSBY_MSG" />
</intent-filter>
</service>
为了接收消息,您需要自定义一个继承自PushReceiver
类的 BroadcastReceiver,我们只需要实现其中的onToken
方法,然后将此 receiver 注册到 AndroidManifest.xml 中。
以下为 Demo 中的示例代码:
public class HUAWEIPushReceiver extends PushReceiver {
private static final String TAG = "HUAWEIPushReceiver";
@Override
public void onToken(Context context, String token, Bundle extras) {
Log.i(TAG, "onToken:" + token);
ThirdPushTokenMgr.getInstance().setThirdPushToken(token); // token 在此处传入,后续推送信息上报时需要使用
ThirdPushTokenMgr.getInstance().setPushTokenToTIM();
}
}
将自定义的 BroadcastReceiver 注册到 AndroidManifest.xml:
<!--这里的 com.tencent.qcloud.tim.demo.thirdpush.HUAWEIPushReceiver 修改成您 App 中的完整类名-->
<receiver android:name="com.tencent.qcloud.tim.demo.thirdpush.HUAWEIPushReceiver"
android:permission="com.tencent.qcloud.tim.tuikit.permission.PROCESS_PUSH_MSG">
<intent-filter>
<!-- 必须,用于接收 token -->
<action android:name="com.huawei.android.push.intent.REGISTRATION" />
<!-- 必须, 用于接收透传消息 -->
<action android:name="com.huawei.android.push.intent.RECEIVE" />
<!-- 必须, 用于接收通知栏消息点击事件 此事件不需要开发者处理,只需注册就可以-->
<action android:name="com.huawei.intent.action.PUSH_DELAY_NOTIFY"/>
</intent-filter>
</receiver>
如果您选择启用华为推送服务,需要在 Application 的onCreate
中调用HMSAgent.init
来对华为推送服务进行初始化。
注册成功后,您将在 步骤3.3 自定义的 BroadcastReceiver 的onToken
中收到注册结果。其中token
为当前设备上当前 App 的唯一标识,请记录token
信息。
以下为 Demo 中的示例代码:
public class DemoApplication extends Application {
private static PojoApplication instance;
@Override
public void onCreate() {
super.onCreate();
// 判断是否是在主线程
if (SessionWrapper.isMainProcess(getApplicationContext())) {
/**
* TUIKit 的初始化函数
*
* @param context 应用的上下文,一般为对应应用的 ApplicationContext
* @param sdkAppID 您在腾讯云注册应用时分配的 SDKAppID
* @param configs TUIKit 的相关配置项,一般使用默认即可,需特殊配置参考 API 文档
*/
long current = System.currentTimeMillis();
TUIKit.init(this, Constants.SDKAPPID, BaseUIKitConfigs.getDefaultConfigs());
System.out.println(">>>>>>>>>>>>>>>>>>"+(System.currentTimeMillis()-current));
// 添加自定初始化配置
customConfig();
System.out.println(">>>>>>>>>>>>>>>>>>"+(System.currentTimeMillis()-current));
if(IMFunc.isBrandXiaoMi()){
// 小米离线推送
MiPushClient.registerPush(this, Constants.XM_PUSH_APPID, Constants.XM_PUSH_APPKEY);
}
if(IMFunc.isBrandHuawei()){
// 华为离线推送
HMSAgent.init(this);
}
if(MzSystemUtils.isBrandMeizu(this)){
// 魅族离线推送
PushManager.register(this, Constants.MZ_PUSH_APPID, Constants.MZ_PUSH_APPKEY);
}
if(IMFunc.isBrandVivo()){
// vivo 离线推送
PushClient.getInstance(getApplicationContext()).initialize();
}
}
instance = this;
}
}
在主界面中获取 token:
if (IMFunc.isBrandHuawei()) {
// 华为离线推送
HMSAgent.connect(this, new ConnectHandler() {
@Override
public void onConnect(int rst) {
QLog.i(TAG, "huawei push HMS connect end:" + rst);
}
});
getHuaWeiPushToken();
}
若您需要通过华为推送进行即时通信 IM 消息的推送通知,必须在用户登录成功后通过TIMManager
中的setOfflinePushToken
方法将您托管到即时通信 IM 控制台生成的证书 ID 及华为推送服务返回的 token 上报到即时通信 IM 服务端。
注意:
正确上报 token 与证书 ID 后,即时通信 IM 服务才能将用户与对应的设备信息绑定,从而使用华为推送服务进行推送通知。
以下为 Demo 中的示例代码:
定义证书 ID 常量
/**
* 我们先定义一些常量信息在 Constants.java
*/
/****** 华为离线推送参数 start ******/
// 使用您在即时通信 IM 控制台上华为推送证书信息里的证书 ID
public static final long HW_PUSH_BUZID = 6666;
// 华为开发者联盟给应用分配的应用 APPID
public static final String HW_PUSH_APPID = "1234567890"; // 见清单文件
/****** 华为离线推送参数 end ******/
上报推送的证书 ID 及 token
/**
* 在 ThirdPushTokenMgr.java 中对推送的证书 ID 及设备信息进行上报操作
*/
public class ThirdPushTokenMgr {
private static final String TAG = "ThirdPushTokenMgr";
private String mThirdPushToken;
public static ThirdPushTokenMgr getInstance () {
return ThirdPushTokenHolder.instance;
}
private static class ThirdPushTokenHolder {
private static final ThirdPushTokenMgr instance = new ThirdPushTokenMgr();
}
public void setThirdPushToken(String mThirdPushToken) {
this.mThirdPushToken = mThirdPushToken; // token 在此处传值,结合上文自定义 BroadcastReciever 类文档说明
}
public void setPushTokenToTIM(){
String token = ThirdPushTokenMgr.getInstance().getThirdPushToken();
if(TextUtils.isEmpty(token)){
QLog.i(TAG, "setPushTokenToTIM third token is empty");
mIsTokenSet = false;
return;
}
TIMOfflinePushToken param = null;
if(IMFunc.isBrandXiaoMi()){ // 判断厂商品牌,根据不同厂商选择不同的推送服务
param = new TIMOfflinePushToken(Constants.XM_PUSH_BUZID, token);
}else if(IMFunc.isBrandHuawei()){
param = new TIMOfflinePushToken(Constants.HW_PUSH_BUZID, token);
}else if(IMFunc.isBrandMeizu()){
param = new TIMOfflinePushToken(Constants.MZ_PUSH_BUZID, token);
}else if(IMFunc.isBrandOppo()){
param = new TIMOfflinePushToken(Constants.OPPO_PUSH_BUZID, token);
}else if(IMFunc.isBrandVivo()){
param = new TIMOfflinePushToken(Constants.VIVO_PUSH_BUZID, token);
}else{
return;
}
TIMManager.getInstance().setOfflinePushToken(param, new TIMCallBack() {
@Override
public void onError(int code, String desc) {
Log.d(TAG, "setOfflinePushToken err code = " + code);
}
@Override
public void onSuccess() {
Log.d(TAG, "setOfflinePushToken success");
mIsTokenSet = true;
}
});
}
}
成功上报证书 ID 及 token 后,即时通信 IM 服务端会在该设备上的即时通信 IM 用户 logout 之前、App 被 kill 之后,将消息通过华为推送通知到用户端。
说明:
- 华为推送并非100%必达。
- 华为推送可能会有一定延时,通常与 App 被 kill 的时机有关,部分情况下与华为推送服务有关。
- 若即时通信 IM 用户已经 logout 或被即时通信 IM 服务端主动下线(例如在其他端登录被踢等情况),则该设备上不会再收到消息推送。
您可以选择点击通知栏消息后打开应用、打开网页或打开应用内指定界面。
默认为点击通知栏消息打开应用。
您需要在 添加证书 时选择【打开网页】并输入以http://
或https://
开头的网址,例如https://www.tencentcloud.com/document/product/269?from_cn_redirect=1
。
在 manifest 中配置需要打开的 Activity 的intent-filter
,示例代码如下:
<activity
android:name="com.tencent.qcloud.tim.demo.chat.ChatActivity"
android:launchMode="singleTask"
android:screenOrientation="portrait"
android:windowSoftInputMode="adjustResize|stateHidden">
<intent-filter>
<action android:name="android.intent.action.VIEW" />
<data
android:host="com.tencent.qcloud.tim"
android:path="/detail"
android:scheme="pushscheme" />
</intent-filter>
</activity>
获取 intent URL,方式如下:
Intent intent = new Intent(this, ChatActivity.class);
intent.setData(Uri.parse("pushscheme://com.tencent.qcloud.tim/detail"));
intent.addFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP);
String intentUri = intent.toUri(Intent.URI_INTENT_SCHEME);
Log.i(TAG, "intentUri = " + intentUri);
// 打印结果
intent://com.tencent.qcloud.tim/detail#Intent;scheme=pushscheme;launchFlags=0x4000000;component=com.tencent.qcloud.tim.tuikit/com.tencent.qcloud.tim.demo.chat.ChatActivity;end

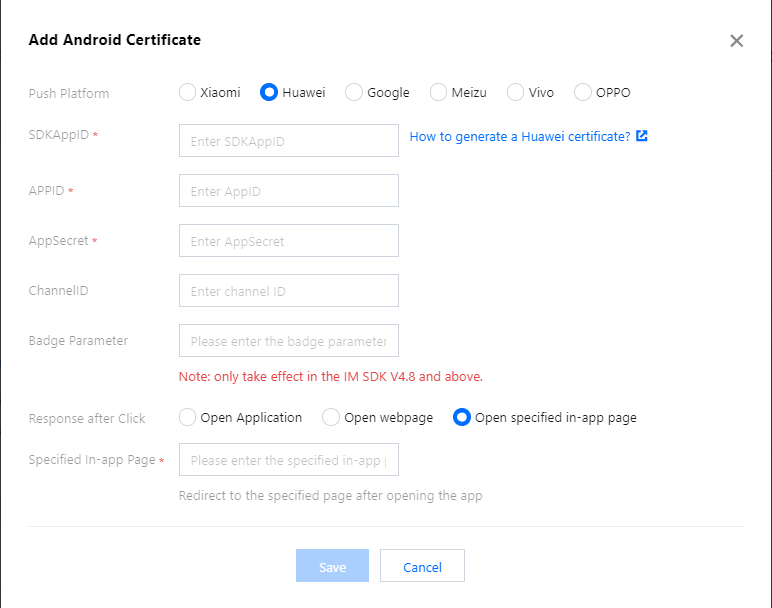

在 添加证书 时选择【打开应用内指定界面】并输入上述打印结果。
添加证书 时设置【点击通知后】为【打开应用】或【打开应用内指定界面】操作才支持透传自定义内容。
在发消息前设置每条消息的通知栏自定义内容。
Android 端示例:
String extContent = "ext content";
TIMMessageOfflinePushSettings settings = new TIMMessageOfflinePushSettings();
settings.setExt(extContent.getBytes());
timMessage.setOfflinePushSettings(settings);
mConversation.sendMessage(false, timMessage, callback);
服务端示例请参见 OfflinePushInfo 的格式示例。
点击通知栏的消息时,客户端在相应的 Activity
中获取自定义内容。
Bundle bundle = getIntent().getExtras();
String extContent = bundle.get("ext");
如果您的应用使用了混淆,为了防止华为离线推送功能异常,您需要 keep 自定义的 BroadcastReceiver,参考添加以下混淆规则:
说明:
以下代码为华为官方示例,请根据实际情况修改后再使用。
-ignorewarning
-keepattributes *Annotation*
-keepattributes Exceptions
-keepattributes InnerClasses
-keepattributes Signature
-keepattributes SourceFile,LineNumberTable
-keep class com.hianalytics.android.**{*;}
-keep class com.huawei.updatesdk.**{*;}
-keep class com.huawei.hms.**{*;}
-keep class com.huawei.android.hms.agent.**{*;}
# 请将 com.tencent.qcloud.tim.demo.thirdpush.HUAWEIPushReceiver 改成您 App 中定义的完整类名
-keep com.tencent.qcloud.tim.demo.thirdpush.HUAWEIPushReceiver {*;}
目前华为推送不支持自定义的提示音。
