    Using CFS Turbo on TKE Serverless Cluster

    Last updated: 2024-01-22 22:15:47
    Download PDF

      Overview

      You can mount a Cloud File Storage (CFS) Turbo storage for TKE Serverless Cluster. The add-on is used to mount the Tencent Cloud CFS Turbo file system to a workload based on a private protocol. Currently, only static configuration is supported. For more information about CFS storage classes, see Storage Classes and Performance.

      Prerequisites

      ‍A TKE Serverless Cluster of v1.14 or later has been created.

      Directions

      Creating a file system

      Create a CFS Turbo file system as instructed in Creating a File System and Mount Target.
      Note:
      After the file system is created, you need to associate the cluster network (vpc-xx) with the CCN instance of the file system. You can check the associated instance in the file system mount target information.

      Deploying a Node Plugin

      Step 1. Create a csidriver.yaml file

      Here is an example of a csidriver.yaml file:
      apiVersion: storage.k8s.io/v1beta1
      kind: CSIDriver
      metadata:
        name: com.tencent.cloud.csi.cfsturbo
      spec:
        attachRequired: false
        podInfoOnMount: false

      Step 2. Create a CSI driver

      Run the following command to create a CSI driver:
      kubectl apply -f csidriver.yaml

      Creating a CFS Turbo volume

      Step 1. Create a CFS Turbo type PV based on the following template

      apiVersion: v1
      kind: PersistentVolume
      metadata:
        name: pv-cfsturbo
      spec:
        accessModes:
        - ReadWriteMany
        capacity:
          storage: 10Gi
        csi:
          driver: com.tencent.cloud.csi.cfsturbo
          volumeHandle: pv-cfsturbo
          volumeAttributes:
            host: 10.0.0.1
            # Set host to the actual mount target IP
            fsid: d3816815
            # Set fsid to the actual FSID
            path: /
            # CFS Turbo subdirectory
        storageClassName: ""
      Parameters:
      metadata.name: The name of the created PV.
      spec.csi.volumeHandle: It must be consistent with the PV name.
      spec.csi.volumeAttributes.host: The IP address of the file system. You can check it in the file system mount target information.

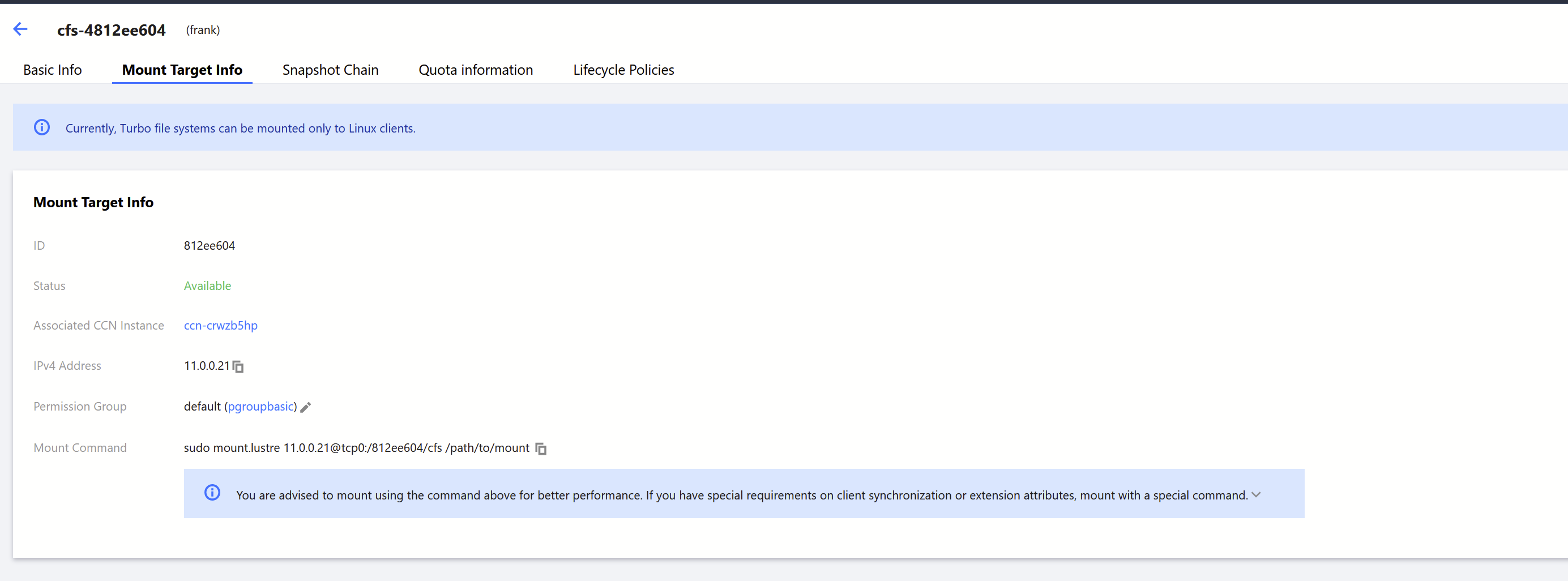

      spec.csi.volumeAttributes.fsid: The FSID of the file system (not the file system ID). You can check it in the file system mount target information. It is the string after "tcp0:/" and before "/cfs" in the mount command.
      spec.csi.volumeAttributes.path: File system subdirectory, which defaults to "/" if not specified. (To improve mounting performance, the plugin backend actually locates the "/cfs" directory for "/"). If you want to mount a subdirectory, ensure that the subdirectory exists in the file system "/cfs". After a subdirectory is mounted, the workload will not be able to access its upper-level directories. For example, if you want to set "path: /test", ensure that "/cfs/test" exists in the file system.


      Step 2. Create a PVC based on the following template to bind the PV

      apiVersion: v1
      kind: PersistentVolumeClaim
      metadata:
        name: pvc-cfsturbo
      spec:
        storageClassName: ""
        volumeName: pv-cfsturbo
        accessModes:
        - ReadWriteMany
        resources:
          requests:
            storage: 10Gi
      Parameters:
      metadata.name: The name of the created PVC.
      spec.volumeName: It must be consistent with the name of the PV created in Step 1.

      Using a CFS Turbo volume

      Create a Pod ‍and mount the PVC based on the following template.
      apiVersion: v1
      kind: Pod
      metadata:
        name: nginx
      spec:
        containers:
        - image: ccr.ccs.tencentyun.com/qcloud/nginx:1.9
          imagePullPolicy: Always
          name: nginx
          ports:
          - containerPort: 80
            protocol: TCP
          volumeMounts:
            - mountPath: /var/www
              name: data
        volumes:
        - name: data
          persistentVolumeClaim:
            claimName: pvc-cfsturbo
