Answering Your First Call
Last updated:2026-03-05 17:29:11
Answering Your First Call
Last updated: 2026-03-05 17:29:11
This guide walks you through implementing the "answer call" feature using the AtomicXCore SDK, leveraging its DeviceStore, CallStore, and the core UI component CallCoreView.


Core Features

To build multi-party Audio/Video Call scenarios with AtomicXCore, you’ll use the following core modules:
Module
Description
The main call UI component. It automatically observes CallStore data, renders video streams, and supports UI customization such as layout switching, avatar, and icon configuration.
Manages the call lifecycle: make call, answer call, reject call, hang up. Provides real-time access to participant audio/video status, call timer, call records, and related data.
Controls audio/video devices: microphone (toggle/volume), camera (toggle/switch/quality), screen sharing, and real-time device status monitoring.

Getting Started

Step 1: Activate the Service

Visit Activate the Service to obtain either a trial or paid version of the SDK.

Step 2: Integrate the SDK

1. Add Pod Dependency: Add pod 'AtomicXCore' to your project's Podfile.
target 'YourProjectTarget' do
pod 'AtomicXCore'
end
Tips:
If your project does not have a Podfile: In your terminal, navigate to your .xcodeproj directory and run pod init to generate a Podfile.
2. Install Components: In the terminal, navigate to the directory containing your Podfile and run:
pod install --repo-update
Tips:
After installation, open your project using the YourProjectName.xcworkspace file.

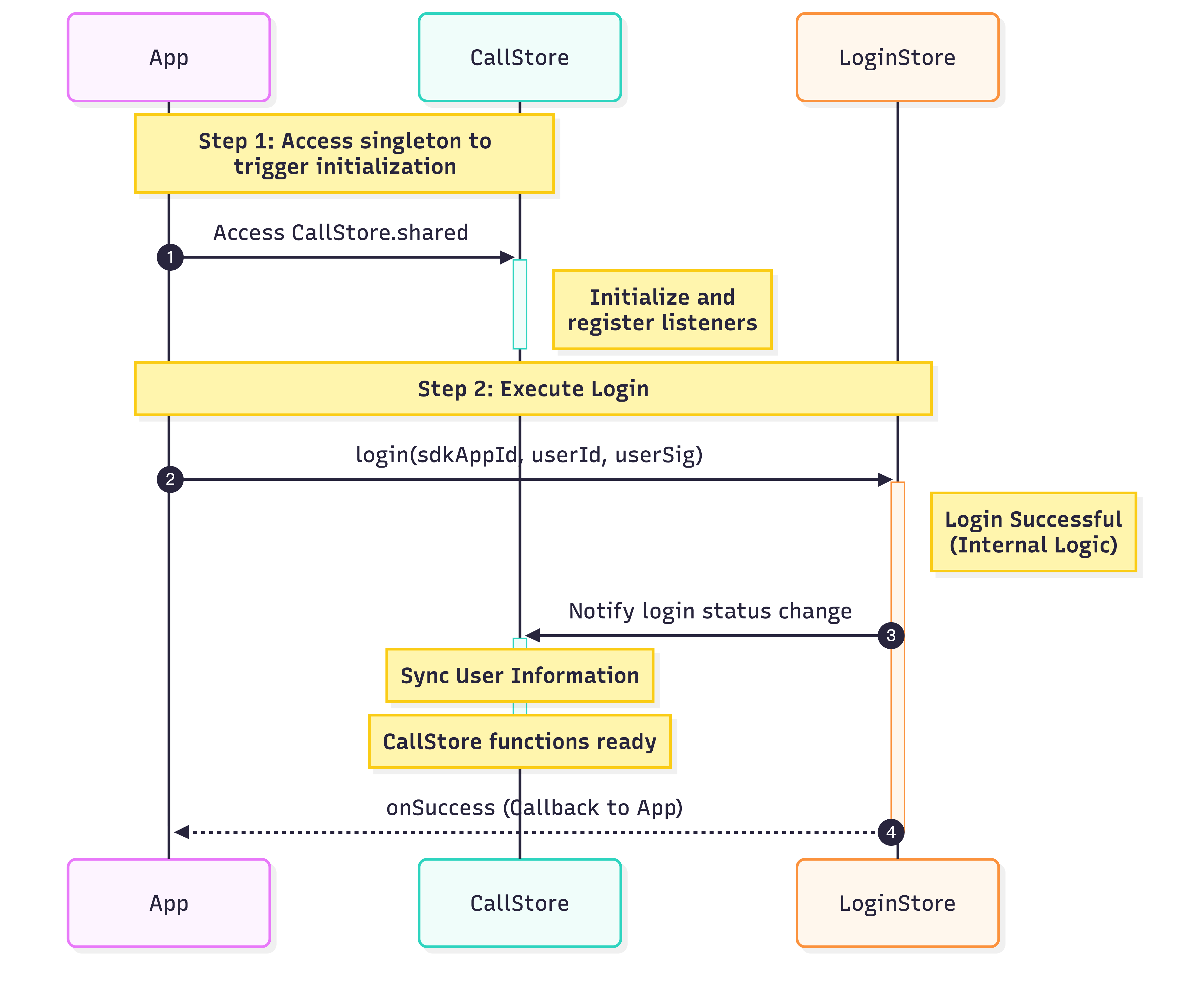

Step 3: Initialize and Log In

To start the call service, initialize CallStore and log in the user. CallStore will automatically sync user info after a successful login and enter the ready state. See the flowchart and sample code below:


import UIKit
import AtomicXCore
import Combine

class ViewController: UIViewController {
var cancellables = Set<AnyCancellable>()
override func viewDidLoad() {
super.viewDidLoad()
// Initialize CallStore
let _ = CallStore.shared
// Set your user info
let userID = "test_001" // Replace with your UserID
let sdkAppID: Int = 1400000001 // Replace with your SDKAppID from the console
let secretKey = "**************" // Replace with your SecretKey from the console
// Generate UserSig (for local testing only; use server generation in production)
let userSig = GenerateTestUserSig.genTestUserSig(
userID: userID,
sdkAppID: sdkAppID,
secretKey: secretKey
)
// Log in
LoginStore.shared.login(
sdkAppID: sdkAppID,
userID: userID,
userSig: userSig
) { result in
switch result {
case .success:
// Login succeeded
Log.info("login success")
case .failure(let error):
// Login failed
Log.error("login failed, code: \\(error.code), error: \\(error.message)")
}
}
}
}
Parameter
Type
Description
userID
String
Unique identifier for the current user. Only letters, numbers, hyphens, and underscores are allowed. Avoid simple IDs like 1 or 123 to prevent multi-device login conflicts.
sdkAppID
int
Get this from the console.
secretKey
String
SDKSecretKey for your audio/video application, available in the console.
userSig
String
Authentication token for TRTC.
Development: Use GenerateTestUserSig.genTestUserSig or UserSig Tool to generate a temporary UserSig.
Production: Always generate UserSig server-side to prevent secret key leakage. See Server-side UserSig Generation for details. For more info, see How to Calculate and Use UserSig.

Implement Answer Call

Important: Make sure the user is logged in before answering a call. This is required for the service to work. Follow these 6 steps to implement the answer call feature.

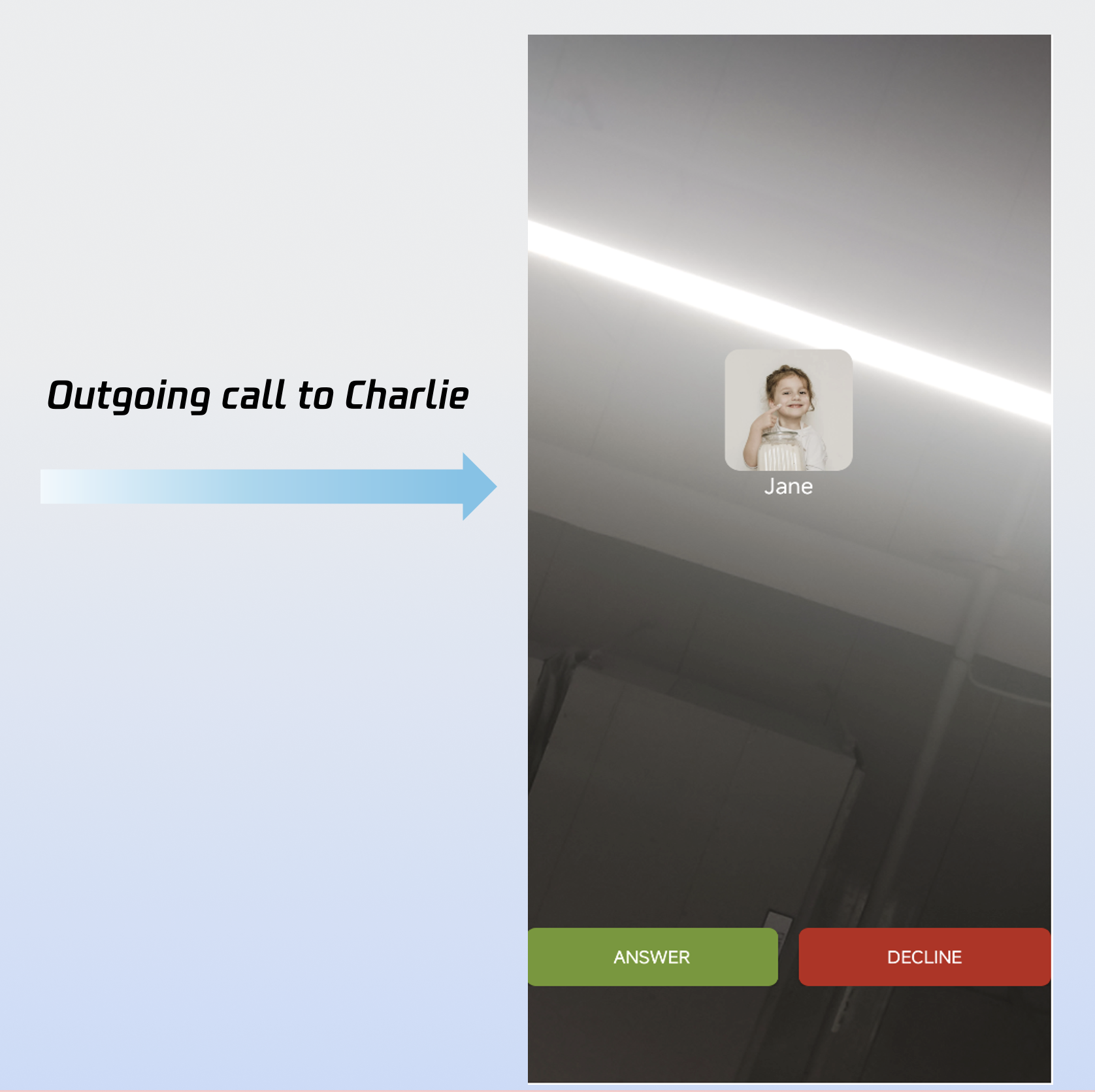

Step 1: Create Call Screen

You need a call screen that appears when a call is received.
1. Create the call screen: Implement a new UIViewController to serve as the call screen. This screen will be presented when an incoming call arrives.
2. Attach CallCoreView to the call screen: This core component observes CallStore data, renders video, and supports UI customization for layout, avatars, and icons.
import UIKit
import AtomicXCore

class CallViewController: UIViewController {
// 1. Create the call screen
override func viewDidLoad() {
super.viewDidLoad()
view.backgroundColor = .black
// 2. Attach CallCoreView to the call screen
callCoreView = CallCoreView(frame: view.bounds)
callCoreView?.autoresizingMask = [.flexibleWidth, .flexibleHeight]
if let callCoreView = callCoreView {
view.addSubview(callCoreView)
}
}
}

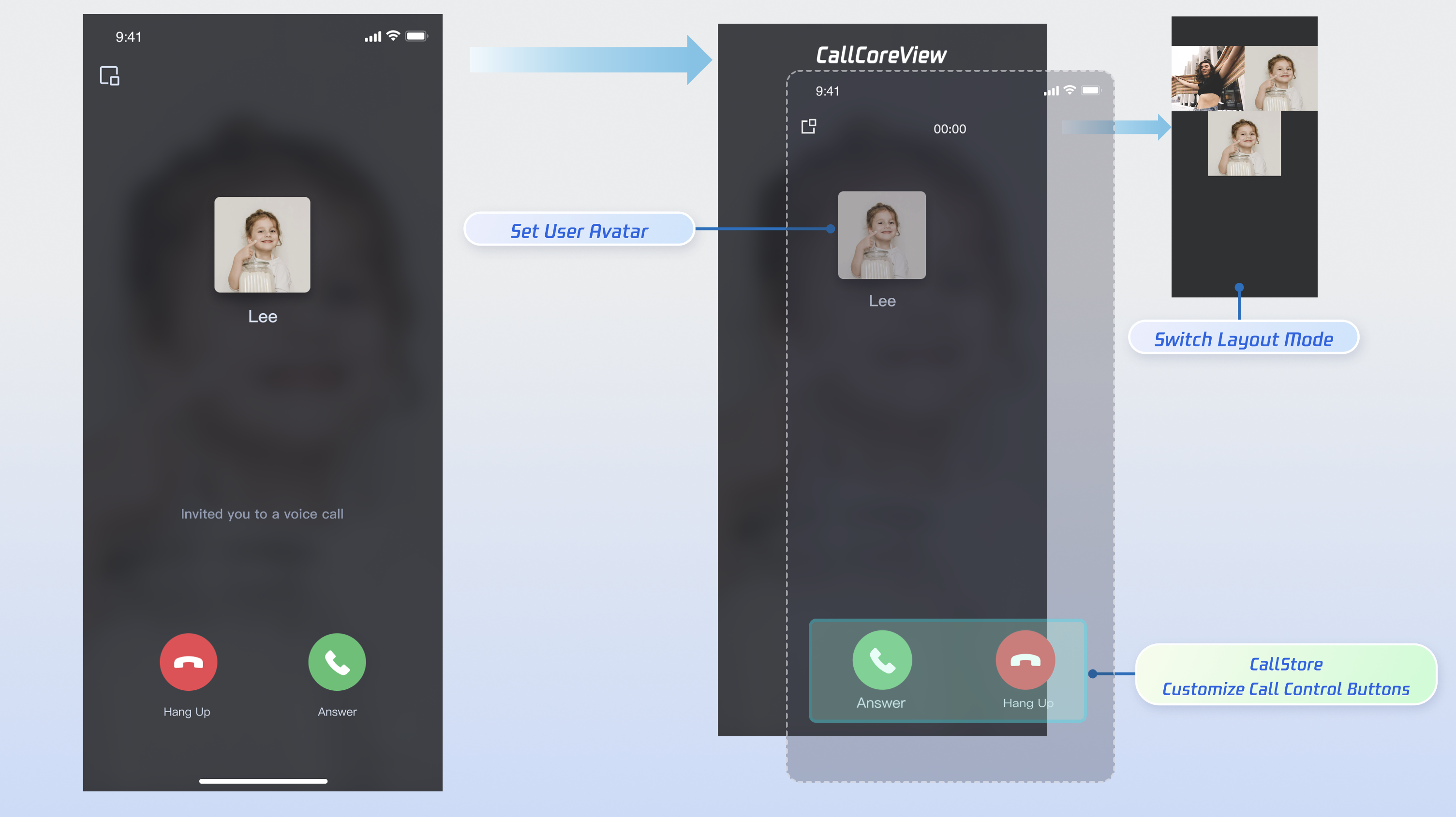

CallCoreView Feature Overview:
Feature
Description
Reference
Set layout mode
Switch between different layout modes. If not set, layout adapts automatically based on participant count.
Switch layout mode
Set avatar
Set custom avatars for specific users by providing avatar resource paths.
Customize default avatar

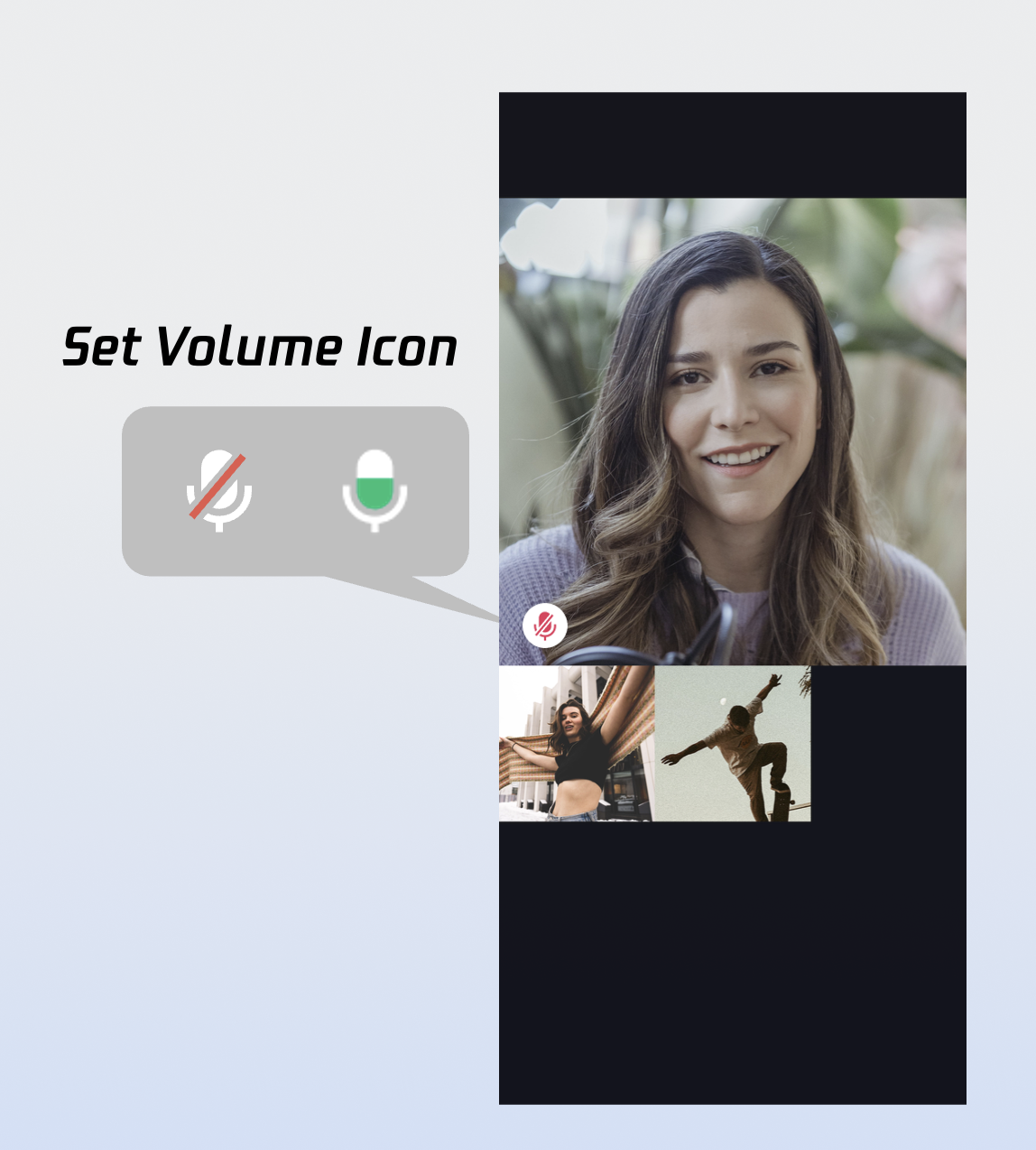

Set volume indicator icon
Display custom volume indicator icons for different volume levels.
Customize volume indicator icon

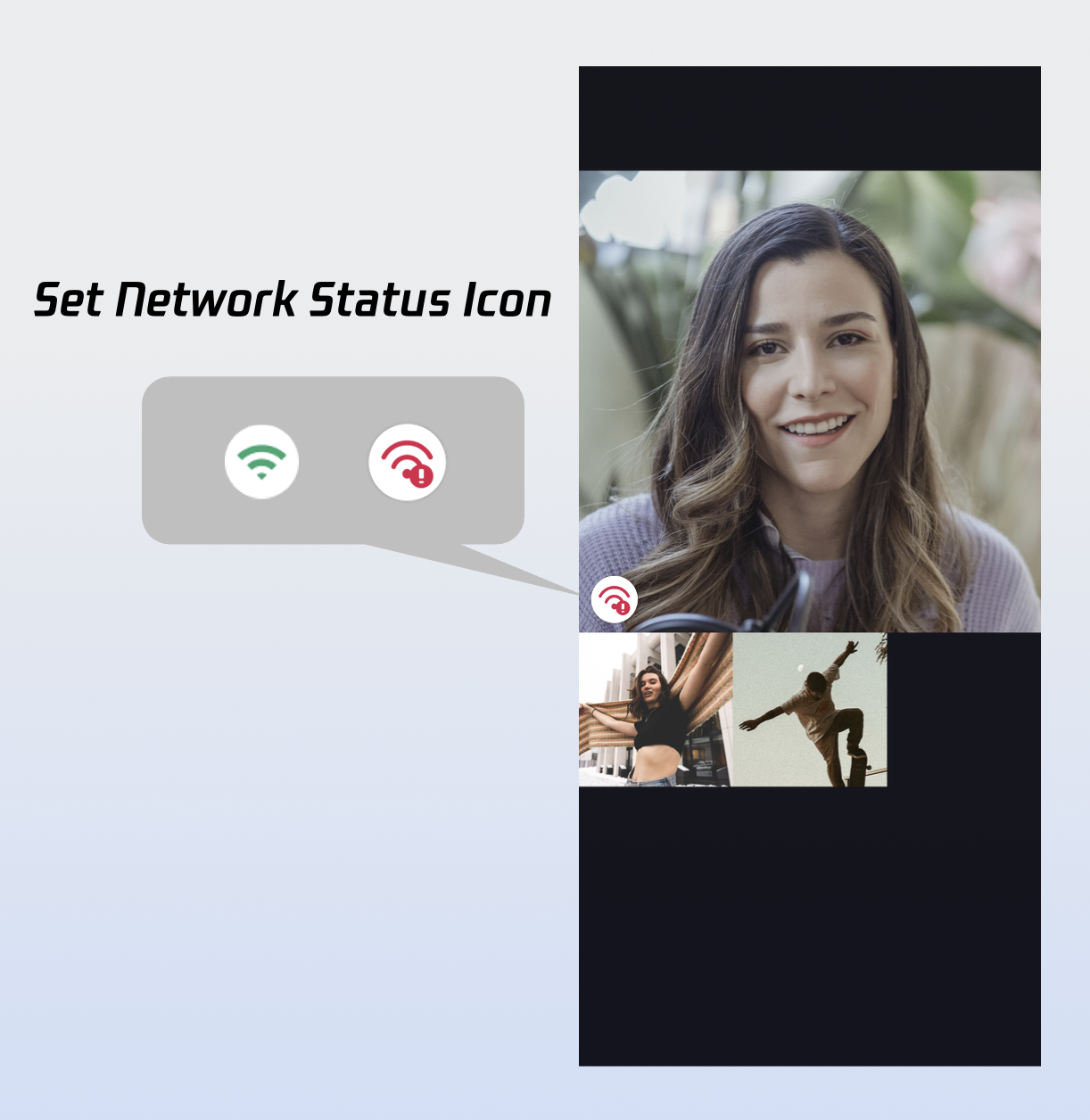

Set network status icon
Show network status icons based on real-time network quality.
Customize network status icon

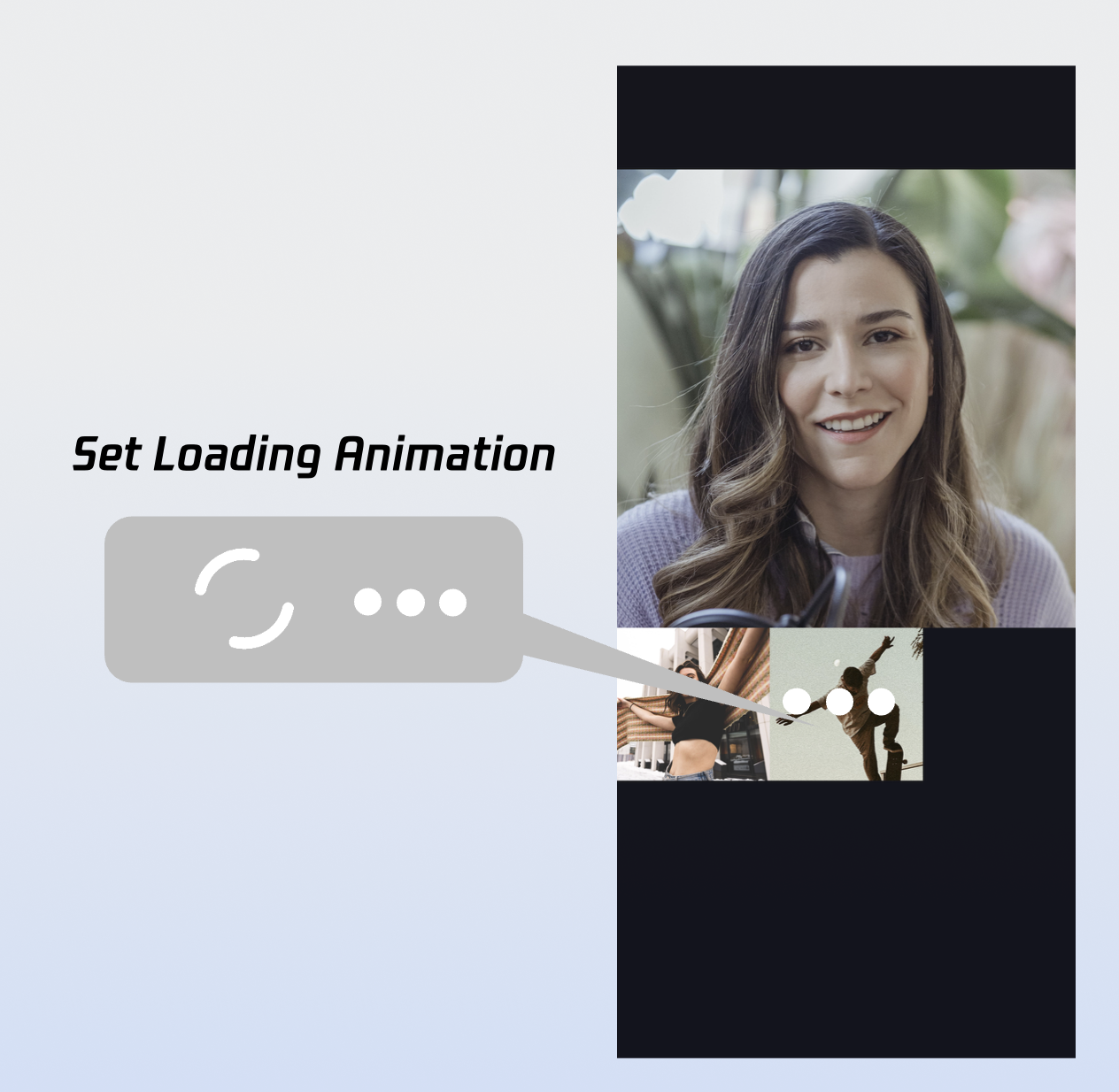

Set waiting animation for users
In multi-party calls, display a GIF animation for users in the waiting state.
Customize loading animation

Step 2: Add Answer and Reject Controls

Use the APIs from DeviceStore and CallStore to implement your call controls.
DeviceStore: Controls microphone (toggle/volume), camera (toggle/switch/quality), screen sharing, and monitors real-time device status. Bind these methods to button actions and update the UI in real time by listening for device status changes.
CallStore: Provides core call controls such as answer, hang up, and reject. Bind these methods to button actions and listen for call status changes to keep the UI in sync with the call state.
Icon resources: Download button icons from GitHub. These icons are designed for TUICallKit, copyright-free, and safe to use.
Icons
























Download
Sample implementation for adding Answer and Reject buttons:
1.1 Add Answer and Reject Buttons: Add "Answer" and "Reject" buttons, and bind their actions to the accept and reject methods.
import UIKit
import AtomicXCore

class CallViewController: UIViewController {
private var buttonReject: UIButton?
private var buttonAccept: UIButton?
override func viewDidLoad() {
super.viewDidLoad()
view.backgroundColor = .black
addControlButtons()
}
private func addControlButtons() {
let buttonWidth: CGFloat = 80
let buttonHeight: CGFloat = 80
let spacing: CGFloat = 60
let bottomMargin: CGFloat = 100
let totalWidth = buttonWidth * 2 + spacing
let startX = (view.bounds.width - totalWidth) / 2
let buttonY = view.bounds.height - bottomMargin - buttonHeight
// Answer button
buttonAccept = createButton(
frame: CGRect(x: startX, y: buttonY, width: buttonWidth, height: buttonHeight),
title: "Answer",
backgroundColor: .systemGreen
)
buttonAccept?.addTarget(self, action: #selector(touchAcceptButton), for: .touchUpInside)
view.addSubview(buttonAccept!)
// Reject button
buttonReject = createButton(
frame: CGRect(x: startX + buttonWidth + spacing, y: buttonY, width: buttonWidth, height: buttonHeight),
title: "Reject",
backgroundColor: .systemRed
)
buttonReject?.addTarget(self, action: #selector(touchRejectButton), for: .touchUpInside)
view.addSubview(buttonReject!)
}
@objc private func touchAcceptButton() {
CallStore.shared.accept(completion: nil)
}
@objc private func touchRejectButton() {
CallStore.shared.reject(completion: nil)
}
private func createButton(frame: CGRect, title: String, backgroundColor: UIColor) -> UIButton {
let button = UIButton(type: .system)
button.frame = frame
button.setTitle(title, for: .normal)
button.setTitleColor(.white, for: .normal)
button.backgroundColor = backgroundColor
button.layer.cornerRadius = frame.width / 2
button.titleLabel?.font = UIFont.systemFont(ofSize: 16)
return button
}
}
1.2 Close the call screen when the call ends: Whether the caller cancels or the callee rejects, the onCallEnded event is triggered. Listen for this event and close (dismiss) the call screen when the call ends.
import UIKit
import AtomicXCore
import Combine

class CallViewController: UIViewController {
private var cancellables = Set<AnyCancellable>()
override func viewDidLoad() {
super.viewDidLoad()
addListener()
}
private func addListener() {
CallStore.shared.callEventPublisher
.receive(on: DispatchQueue.main)
.sink { [weak self] event in
if case .onCallEnded = event {
self?.dismiss(animated: true)
}
}
.store(in: &cancellables)
}
}

Step 3: Request Audio/Video Permissions

Check audio and video permissions before connecting the call. If permissions are missing, prompt the user to grant them.
1. Declare permissions: Add the following entries to your Info.plist file with appropriate usage descriptions. These will be displayed when the system requests permissions.
<key>NSCameraUsageDescription</key>
<string>Camera access is required for video calls and group video calls.</string>
<key>NSMicrophoneUsageDescription</key>
<string>Microphone access is required for audio calls, group audio calls, video calls, and group video calls.</string>
2. Request permissions dynamically: Request audio/video permissions when an incoming call is received, or as needed by your business logic.
import AVFoundation
import UIKit

extension UIViewController {
// Check microphone permission
func checkMicrophonePermission(completion: @escaping (Bool) -> Void) {
let status = AVCaptureDevice.authorizationStatus(for: .audio)
switch status {
case .authorized:
completion(true)
case .notDetermined:
AVCaptureDevice.requestAccess(for: .audio) { granted in
DispatchQueue.main.async {
completion(granted)
}
}
case .denied, .restricted:
completion(false)
@unknown default:
completion(false)
}
}
// Check camera permission
func checkCameraPermission(completion: @escaping (Bool) -> Void) {
let status = AVCaptureDevice.authorizationStatus(for: .video)
switch status {
case .authorized:
completion(true)
case .notDetermined:
AVCaptureDevice.requestAccess(for: .video) { granted in
DispatchQueue.main.async {
completion(granted)
}
}
case .denied, .restricted:
completion(false)
@unknown default:
completion(false)
}
}
// Show permission alert
func showPermissionAlert(message: String) {
let alert = UIAlertController(
title: "Permission Request",
message: message,
preferredStyle: .alert
)
alert.addAction(UIAlertAction(title: "Go to Settings", style: .default) { _ in
if let url = URL(string: UIApplication.openSettingsURLString) {
UIApplication.shared.open(url)
}
})
alert.addAction(UIAlertAction(title: "Cancel", style: .cancel))
present(alert, animated: true)
}
}

Step 4: Handle Incoming Call Notifications

Listen for the current user's call status and play a ringtone or vibration when a call is incoming. Stop the notification when the call is answered or ends.
1. Subscribe to user status: Subscribe to CallStore.shared.state.value.selfInfo to reactively monitor the current user's status.
2. Play/stop ringtone or vibration: If selfInfo.status is .waiting, play a ringtone or vibration. If the status changes to .accept, stop the notification.
import UIKit
import AtomicXCore
import Combine
import AVFoundation

class MainViewController: UIViewController {
private var audioPlayer: AVAudioPlayer?
private var cancellables = Set<AnyCancellable>()
override func viewDidLoad() {
super.viewDidLoad()
observeSelfStatus()
}
private func observeSelfStatus() {
CallStore.shared.state
.subscribe(StatePublisherSelector<CallState, CallParticipantStatus>(keyPath: \\.selfInfo.status))
.removeDuplicates()
.receive(on: DispatchQueue.main)
.sink { [weak self] status in
self?.handleRingtoneByStatus(status)
}
.store(in: &cancellables)
}
private func handleRingtoneByStatus(_ status: CallParticipantStatus) {
switch status {
case .waiting:
// Start ringtone while waiting to answer
// playRingtone()
case .accept:
// Stop ringtone after answering
// stopRingtone()
default:
// Stop ringtone for other statuses
// stopRingtone()
}
}
}

Step 5: Enable Media Devices on Incoming Call

When an incoming call arrives, determine the media type via the onCallReceived event. Enable the appropriate media devices when the call UI is displayed.
1. Listen for incoming call event: Subscribe to the onCallReceived event.
2. Enable devices based on media type: For audio calls, enable the microphone only. For video calls, enable both the microphone and camera.
import UIKit
import AtomicXCore
import Combine

class MainViewController: UIViewController {
private var cancellables = Set<AnyCancellable>()
override func viewDidLoad() {
super.viewDidLoad()
addListener()
}
private func addListener() {
CallStore.shared.callEventPublisher
.receive(on: DispatchQueue.main)
.sink { [weak self] event in
if case .onCallReceived(_, let mediaType, _) = event {
self?.openDeviceForMediaType(mediaType)
}
}
.store(in: &cancellables)
}
private func openDeviceForMediaType(_ mediaType: CallMediaType) {
DeviceStore.shared.openLocalMicrophone(completion: nil)
if mediaType == .video {
let isFront = true
DeviceStore.shared.openLocalCamera(isFront: isFront, completion: nil)
}
}
}
openLocalCamera API Parameters:
Parameter
Type
Required
Description
isFront
Bool
Yes
Whether to use the front camera. - true: Front camera - false: Rear camera
completion
CompletionHandler
No
Completion callback, returns the result of enabling the camera. If it fails, returns error code and message.
openLocalMicrophone API Parameters:
Parameter
Type
Required
Description
completion
CompletionHandler
No
Completion callback, returns the result of enabling the microphone. If it fails, returns error code and message.

Step 6: Present Call UI on Incoming Call

Listen for the onCallReceived event. When an incoming call is received, present the call screen.
1. Subscribe to the incoming call event: Listen for onCallReceived.
2. Present the call screen: Show the call UI when an incoming call is detected.
import UIKit
import AtomicXCore
import Combine

class MainViewController: UIViewController {
private var cancellables = Set<AnyCancellable>()
override func viewDidLoad() {
super.viewDidLoad()
addListener()
}
private func addListener() {
CallStore.shared.callEventPublisher
.receive(on: DispatchQueue.main)
.sink { [weak self] event in
if case .onCallReceived(_, _, _) = event {
let callVC = CallViewController()
callVC.modalPresentationStyle = .fullScreen
self?.present(callVC, animated: true)
}
}
.store(in: &cancellables)
}
}
onCallReceived Event Parameters:
Parameter
Type
Description
callId
String
Unique identifier for the call.
mediaType
Specifies whether the call is audio or video.
CallMediaType.video: Video call
CallMediaType.audio: Audio call

Demo Effect

After completing the above 6 steps, your answer call feature will look like this:


Customize the Call UI

CallCoreView offers extensive UI customization, including support for custom avatars and volume indicator icons. To speed up your integration, you can download ready-to-use resources from GitHub. All resources are copyright-free.

Custom Volume Indicator Icons

Use setVolumeLevelIcons to assign different icons for each volume level.

// Set volume indicator icons
let volumeLevelIcons: [VolumeLevel: String] = [
.mute: "path to the corresponding icon resource"
]
callCoreView.setVolumeLevelIcons(icons: volumeLevelIcons)
setVolumeLevelIcons API Parameters:
Parameter
Type
Required
Description
icons
[VolumeLevel: String]
Yes
A dictionary mapping volume levels to icon resources.
Key (VolumeLevel):
VolumeLevel.mute: Microphone muted
VolumeLevel.low: Volume (0 ~ 25]
VolumeLevel.medium: Volume (25 ~ 50]
VolumeLevel.high: Volume (50 ~ 75]
VolumeLevel.peak: Volume (75 ~ 100]
Value (String): Path to the icon resource for each level.
Volume Indicator Icons:
Icon
Description
Download



Volume indicator icon. Recommended for VolumeLevel.low or VolumeLevel.medium.



Mute icon. Recommended for VolumeLevel.mute.

Custom Network Status Icons

Use setNetworkQualityIcons to set custom icons for different network states.

// Set network quality icons
let networkQualityIcons: [NetworkQuality: String] = [
.bad: "path to the corresponding icon"
]
callCoreView.setNetworkQualityIcons(icons: networkQualityIcons)
setNetworkQualityIcons API Parameters:
Parameter
Type
Required
Description
icons
[NetworkQuality: String]
Yes
Network Quality Icon Mapping Table. The dictionary structure is defined as follows:
Key ( NetworkQuality ) : NetworkQuality
NetworkQuality.unknown :Network status is undetermined.
NetworkQuality.excellent:Outstanding network connection.
NetworkQuality.good : Stable and good network connection.
NetworkQuality.poor : Weak network signal.
NetworkQuality.bad : Very weak or unstable network.
NetworkQuality.veryBad :Extremely poor network, near disconnection.
NetworkQuality.down :Network is disconnected.
Value ( String ) : The absolute path or resource name of the icon corresponding to each network status level.
Poor Network Indicator Icon:
Icon
Description
Download



Poor network indicator icon. Recommended for NetworkQuality.bad, NetworkQuality.veryBad, or NetworkQuality.down.

Custom Default Avatar

Use setParticipantAvatars to set user avatars. Listen to the allParticipants data to update avatars as needed. If an avatar is not set or fails to load, the default avatar is displayed.
// Set user avatars
var avatars: [String: String] = [:]
let userId = "" // User ID
let avatarPath = "" // Path to user's default avatar resource
avatars[userId] = avatarPath

callCoreView.setParticipantAvatars(avatars: avatars)
setParticipantAvatars API Parameters:
Parameter
Type
Required
Description
avatars
[String: String]
Yes
A dictionary mapping userID to the absolute path of the user's avatar resource.
Default Avatar Resource:
Icon
Description
Download



Default avatar. Use as the fallback when a user's avatar fails to load or is not set.

Custom Waiting Animation

Use setWaitingAnimation to display a waiting animation for users in the waiting state.

// Set waiting animation
let waitingAnimationPath = "" // Path to the waiting animation GIF resource
callCoreView.setWaitingAnimation(path: waitingAnimationPath)
setWaitingAnimation API Parameters:
Parameter
Type
Required
Description
path
String
Yes
Absolute path to the GIF animation resource.
Waiting Animation:
Icon
Description
Download



User waiting animation. Recommended for group calls; display when a user's status is waiting.

Add Call Timer

You can display the call duration in real time by subscribing to the activeCall field duration.
1. Subscribe to the active call: Listen to CallStore.observerState.activeCall for updates.
2. Bind duration to your UI: Bind activeCall.duration to your timer UI. This field is reactive and updates automatically; you do not need to manage a timer manually.
import UIKit
import AtomicXCore
import Combine

class TimerView: UILabel {
private var cancellables = Set<AnyCancellable>()
override init(frame: CGRect) {
super.init(frame: frame)
setupView()
}
required init?(coder: NSCoder) {
super.init(coder: coder)
setupView()
}
private func setupView() {
textColor = .white
textAlignment = .center
font = .systemFont(ofSize: 16)
}
override func didMoveToWindow() {
super.didMoveToWindow()
if window != nil {
registerActiveCallObserver()
} else {
cancellables.removeAll()
}
}
private func registerActiveCallObserver() {
CallStore.shared.state.subscribe()
.map { $0.activeCall }
.removeDuplicates { $0.duration == $1.duration }
.receive(on: DispatchQueue.main)
.sink { [weak self] activeCall in
self?.updateDurationView(activeCall: activeCall)
}
.store(in: &cancellables)
}
private func updateDurationView(activeCall: CallInfo) {
let currentDuration = activeCall.duration
let minutes = currentDuration / 60
let seconds = currentDuration % 60
text = String(format: "%02d:%02d", minutes, seconds)
}
}
Note:
For more reactive call status data, see CallState.

More Features

Set User Avatar and Nickname

Before a call starts, set your own nickname and avatar using setSelfInfo.
import AtomicXCore

var userProfile = UserProfile()
userProfile.userID = "" // Your userId
userProfile.avatarURL = "" // Avatar URL
userProfile.nickname = "" // Nickname

LoginStore.shared.setSelfInfo(userProfile: userProfile) { result in
switch result {
case .success:
// Successfully set
case .failure(let error):
// Failed to set
}
}
setSelfInfo API Parameters:
Parameter
Type
Required
Description
userProfile
Yes
User info struct:
userID: User ID
avatarURL: User avatar URL
nickname: User nickname
For more field details, please refer to the UserProfile class.
completion
CompletionHandler
No
Completion callback, returns the result of the operation.

Switch Layout Modes

CallCoreView supports three built-in layout modes. Use setLayoutTemplate to set the layout. If not set, CallCoreView will automatically use Float mode for 1v1 calls and Grid mode for multi-party calls.
Float Mode
Grid Mode
PIP Mode



Layout: While waiting, display your own video full screen. After answering, show the remote video full screen and your own video as a floating window.
Interaction: Drag the small window or tap to swap big/small video.
Layout: All participant videos are tiled in a grid. Best for 2+ participants. Tap to enlarge a video.
Interaction: Tap a participant to enlarge their video.
Layout: In 1v1, remote video is fixed; in multi-party, the active speaker is shown full screen.
Interaction: Shows your own video while waiting, displays call timer after answering.
// Create CallCoreView
let callCoreView = CallCoreView(frame: view.bounds)
callCoreView.autoresizingMask = [.flexibleWidth, .flexibleHeight]

// Set layout mode
let template = CallLayoutTemplate.grid
callCoreView.setLayoutTemplate(template)
setLayoutTemplate API Parameters:
Parameter
Type
Required
Description
template
Yes
CallCoreView's layout mode
CallLayoutTemplate.float
Layout: While waiting, display your own video full screen. After answering, show the remote video full screen and your own video as a floating window.
Interaction: Drag the small window or tap to swap big/small video.
CallLayoutTemplate.grid
Layout: All participant videos are tiled in a grid. Best for 2+ participants. Tap to enlarge a video.
Interaction: Tap a participant to enlarge their video.
CallLayoutTemplate.pip :
Layout: In 1v1, remote video is fixed; in multi-party, the active speaker is shown full screen.
Interaction: Shows your own video while waiting, displays call timer after answering.

Implement In-App Floating Window

The AtomicXCore SDK provides a CallPipView component for in-app floating windows. If your call UI is covered by other pages (e.g., user presses back while a call is ongoing), a floating window can be shown so users can always see call status and quickly return to the call UI.
Step 1: Create the floating window controller.
import UIKit
import AtomicXCore
import Combine

/**
* Floating Window Controller
* * Used to display the call floating window, containing a CallCoreView internally.
*/
class FloatWindowViewController: UIViewController {
var tapGestureAction: (() -> Void)?
private var cancellables = Set<AnyCancellable>()
private lazy var callCoreView: CallCoreView = {
let view = CallCoreView(frame: self.view.bounds)
view.autoresizingMask = [.flexibleWidth, .flexibleHeight]
view.setLayoutTemplate(.pip) // Set to Picture-in-Picture (PiP) layout mode
view.isUserInteractionEnabled = false // Disable interaction to allow touch events to pass through to the parent view
return view
}()
override func viewDidLoad() {
super.viewDidLoad()
view.backgroundColor = UIColor(white: 0.1, alpha: 1.0)
view.layer.cornerRadius = 10
view.layer.masksToBounds = true
view.addSubview(callCoreView)
// Add tap gesture recognizer
let tapGesture = UITapGestureRecognizer(target: self, action: #selector(handleTap))
view.addGestureRecognizer(tapGesture)
// Delay observing state changes to prevent the window from closing immediately upon creation
DispatchQueue.main.asyncAfter(deadline: .now() + 1.0) { [weak self] in
self?.observeCallStatus()
}
}
@objc private func handleTap() {
tapGestureAction?()
}
/**
* Observe call status changes
* Automatically closes the floating window when the call ends.
*/
private func observeCallStatus() {
CallStore.shared.state
.subscribe(StatePublisherSelector<CallState, CallParticipantStatus>(keyPath: \\.selfInfo.status))
.removeDuplicates()
.receive(on: DispatchQueue.main)
.sink { [weak self] status in
if status == .none {
// Call ended, post a notification to hide the floating window
NotificationCenter.default.post(name: NSNotification.Name("HideFloatingWindow"), object: nil)
}
}
.store(in: &cancellables)
}
deinit {
cancellables.removeAll()
}
}
Step 2: Add floating window management logic to your main UI.
import UIKit
import AtomicXCore

class MainViewController: UIViewController {
private var floatWindow: UIWindow?
override func viewDidLoad() {
super.viewDidLoad()
// Observe notification to display the floating window
NotificationCenter.default.addObserver(
self,
selector: #selector(showFloatingWindow),
name: NSNotification.Name("ShowFloatingWindow"),
object: nil
)
// Observe notification to hide the floating window
NotificationCenter.default.addObserver(
self,
selector: #selector(hideFloatingWindow),
name: NSNotification.Name("HideFloatingWindow"),
object: nil
)
}
/**
* Displays the in-app floating window
*/
@objc private func showFloatingWindow() {
// Check if a call is currently active/accepted
let selfStatus = CallStore.shared.state.value.selfInfo.status
guard selfStatus == .accept else {
return
}
// Prevent duplicate creation if the floating window already exists
guard floatWindow == nil else { return }
// ⚠️ CRITICAL: The window must be created using the current windowScene
guard let windowScene = UIApplication.shared.connectedScenes.first as? UIWindowScene else {
return
}
// Define floating window dimensions (9:16 aspect ratio)
let pipWidth: CGFloat = 100
let pipHeight: CGFloat = pipWidth * 16 / 9
let pipX = UIScreen.main.bounds.width - pipWidth - 20
let pipY: CGFloat = 100
// Initialize the floating UIWindow and associate it with the windowScene
let window = UIWindow(windowScene: windowScene)
window.windowLevel = .alert + 1 // Ensure it stays on top of the main UI
window.backgroundColor = .clear
window.frame = CGRect(x: pipX, y: pipY, width: pipWidth, height: pipHeight)
// Initialize the floating window controller
let floatVC = FloatWindowViewController()
floatVC.tapGestureAction = { [weak self] in
self?.openCallViewController()
}
window.rootViewController = floatVC
self.floatWindow = window
// Make the window visible
window.isHidden = false
window.makeKeyAndVisible()
// Immediately restore the main window as the key window to maintain proper focus
if let mainWindow = windowScene.windows.first(where: { $0 != window }) {
mainWindow.makeKey()
}
}
/**
* Hides the in-app floating window
*/
@objc private func hideFloatingWindow() {
floatWindow?.isHidden = true
floatWindow = nil
}
/**
* Opens the call interface (triggered by tapping the floating window)
*/
private func openCallViewController() {
// Dismiss the floating window first
hideFloatingWindow()
// Retrieve the current top-most ViewController
guard let topVC = getTopViewController() else {
return
}
let callVC = CallViewController()
callVC.modalPresentationStyle = .fullScreen
topVC.present(callVC, animated: true)
}
/**
* Helper method to find the top-most ViewController in the current view hierarchy
*/
private func getTopViewController() -> UIViewController? {
guard let windowScene = UIApplication.shared.connectedScenes.first as? UIWindowScene,
let keyWindow = windowScene.windows.first(where: { $0.isKeyWindow }),
let rootVC = keyWindow.rootViewController else {
return nil
}
var topVC = rootVC
while let presentedVC = topVC.presentedViewController {
topVC = presentedVC
}
return topVC
}
deinit {
NotificationCenter.default.removeObserver(self)
}
}
Step 3: Add floating window trigger logic in the call UI.
import UIKit
import AtomicXCore

class CallViewController: UIViewController {
override func viewWillAppear(_ animated: Bool) {
super.viewWillAppear(animated)
// Post a notification to hide the floating window when entering the call interface.
NotificationCenter.default.post(name: NSNotification.Name("HideFloatingWindow"), object: nil)
}
override func viewWillDisappear(_ animated: Bool) {
super.viewWillDisappear(animated)
// When leaving the call interface, check if the call is still active.
let selfStatus = CallStore.shared.state.value.selfInfo.status
if selfStatus == .accept {
// If the call is still ongoing, post a notification to display the floating window.
NotificationCenter.default.post(name: NSNotification.Name("ShowFloatingWindow"), object: nil)
}
}
}

Implement System Picture-in-Picture (PiP)

AtomicXCore SDK supports system PiP via the underlying TRTC engine. When the app goes to the background, the call video can float as a system PiP window above other apps, allowing users to continue video calls while multitasking.
Note:
1. Add the Background Modes capability in Xcode's Signing & Capabilities and enable Audio, AirPlay, and Picture in Picture.
2. Requires iOS 15.0 or later.
1. Configure PiP parameters: Set fill mode, user video regions, canvas parameters, etc.
import AtomicXCore

// Fill Mode Enumeration
enum PictureInPictureFillMode: Int, Codable {
case fill = 0 // Aspect Fill: Scales the content to fill the view (may crop)
case fit = 1 // Aspect Fit: Scales the content to fit the view (no cropping)
}

// User Video Region
struct PictureInPictureRegion: Codable {
let userId: String // Unique User ID
let width: Double // Width (0.0 - 1.0, relative to the canvas)
let height: Double // Height (0.0 - 1.0, relative to the canvas)
let x: Double // X-coordinate (0.0 - 1.0, relative to the top-left of the canvas)
let y: Double // Y-coordinate (0.0 - 1.0, relative to the top-left of the canvas)
let fillMode: PictureInPictureFillMode // Content fill mode
let streamType: String // Stream type ("high" for HD or "low" for SD)
let backgroundColor: String // Background color (e.g., Hex string)
}

// Canvas Configuration
struct PictureInPictureCanvas: Codable {
let width: Int // Canvas width in pixels
let height: Int // Canvas height in pixels
let backgroundColor: String // Background color
}

// Picture-in-Picture Parameters
struct PictureInPictureParams: Codable {
let enable: Bool // Toggle PiP functionality
let cameraBackgroundCapture: Bool? // Whether to continue camera capture in the background
let canvas: PictureInPictureCanvas? // Canvas configuration (Optional)
let regions: [PictureInPictureRegion]? // List of user video regions (Optional)
}

// Picture-in-Picture Request
struct PictureInPictureRequest: Codable {
let api: String // API name/identifier
let params: PictureInPictureParams // Parameter payload
}
2. Enable PiP: Use configPictureInPicture to enable or disable PiP.
let params = PictureInPictureParams(
enable: true,
cameraBackgroundCapture: true,
canvas: nil,
regions: nil
)

let request = PictureInPictureRequest(
api: "configPictureInPicture",
params: params
)

// Encode the request into a JSON string
let encoder = JSONEncoder()
if let data = try? encoder.encode(request),
let jsonString = String(data: data, encoding: .utf8) {
// Invoke the experimental API via the TUICallEngine instance
TUICallEngine.createInstance().callExperimentalAPI(jsonObject: jsonString)
}

Keep Screen Awake During Calls

To prevent the screen from sleeping during a call, set UIApplication.shared.isIdleTimerDisabled = true when the call UI appears, and restore it when the UI disappears.
class CallViewController: UIViewController {
override func viewDidLoad() {
super.viewDidLoad()
UIApplication.shared.isIdleTimerDisabled = true
}
override func viewWillDisappear(_ animated: Bool) {
super.viewWillDisappear(animated)
UIApplication.shared.isIdleTimerDisabled = false
}
}

Background Audio/Video Capture Issues

To allow your app to capture audio and video in the background (e.g., when locked or switched to another app), you must:
1. Configure iOS background modes: In Xcode, open your project, select your target, go to Signing & Capabilities, add Background Modes, and enable:
Audio, AirPlay, and Picture in Picture
Voice over IP
Remote notifications (optional, for offline push)
Your Info.plist will include:
<key>UIBackgroundModes</key>
<array>
<string>audio</string>
<string>voip</string>
<string>remote-notification</string>
</array>
2. Configure AVAudioSession: Set up the audio session before the call starts (e.g., in the call UI's viewDidLoad or before making/answering a call).
import AVFoundation

private func setupAudioSession() {
let audioSession = AVAudioSession.sharedInstance()
do {
try audioSession.setCategory(.playAndRecord, options: [.allowBluetooth, .allowBluetoothA2DP])
try audioSession.setActive(true)
} catch {
// Handle audio session configuration failure
}
}
3. Special handling for ringtone playback (optional): To play the ringtone through the speaker, temporarily switch the audio session to .playback mode.
private func setAudioSessionForRingtone() {
let audioSession = AVAudioSession.sharedInstance()
do {
try audioSession.setCategory(.playback, options: [.allowBluetooth, .allowBluetoothA2DP])
try audioSession.overrideOutputAudioPort(.speaker)
try audioSession.setActive(true)
} catch {
// Handle configuration failure
}
}

private func restoreAudioSessionForCall() {
let audioSession = AVAudioSession.sharedInstance()
do {
try audioSession.setCategory(.playAndRecord, options: [.allowBluetooth, .allowBluetoothA2DP])
try audioSession.setActive(true)
} catch {
// Handle restore failure
}
}

Next Steps

Congratulations! You have implemented the answer call feature. Next, see Making Your First Call to add call initiation to your app.

FAQs

If the callee is offline and comes online within the call invitation timeout, will they receive the incoming call event?

For one-on-one calls, if the callee comes online within the timeout, they will receive the incoming call invitation. For group calls, if the callee comes online within the timeout, up to 20 unprocessed group messages will be retrieved, and if there is a call invitation, the incoming call event will be triggered.

Contact Us

If you have any questions or suggestions during the integration or usage process, feel free to join our Telegram technical group or contact us for support.
Was this page helpful?
You can also Contact Sales or Submit a Ticket for help.
Yes
No

Feedback
