Integration Center

Last updated: 2022-10-11 16:32:05

    TMP integrates commonly used programming languages, middleware, big data, and infrastructure databases. It supports quick installation and custom installation. You only need to follow the instructions to monitor the corresponding components. It also provides out-of-the-box Grafana monitoring dashboards. The integration center covers three major monitoring scenarios of basic service monitoring, application layer monitoring, and TKE cluster monitoring, making it easier for you to integrate and use.

    List of Supported Services

    Service Type Service Monitoring Metric Quick Installation Integration Guide
    Big data Elasticsearch Cluster/Index/Node monitoring Supported Elasticsearch Exporter Integration
    Flink Cluster/Job/Task monitoring Not supported Flink Integration
    Development CVM The extended `cvm_sd_config` can be used to configure a CVM scrape task and collect Node Exporter or custom business metrics. Supported CVM Node Exporter
    Go GC/Heap/Thread/Goroutine monitoring Not supported Go Application Integration
    JVM Heap/Thread/GC/CPU/File monitoring Not supported JVM Integration
    Spring MVC HTTP API/Exception/JVM monitoring Not supported Spring Boot Integration
    Middleware Kafka Broker/Topic/Consumer group monitoring Supported Kafka Exporter Integration
    Consul Consul monitoring Supported Consul Exporter Integration
    Etcd Etcd monitoring Not supported -
    Istio Istio monitoring Not supported -
    Infrastructure Kubernetes API server/DNS/Workload/Network monitoring Supported Agent Management
    Database TencentDB for MongoDB File count/Read and write performance/Network traffic monitoring Supported MongoDB Exporter Integration
    TencentDB for MySQL Network/Connection count/Slow query monitoring Supported MySQL Exporter Integration
    TencentDB for PostgreSQL CPU/Memory/Transaction/Lock/Read/Write monitoring Supported PostgreSQL Exporter Integration
    TencentDB for Redis Memory utilization/Connection count/Command execution status monitoring Supported Redis Exporter Integration
    TencentDB for Memcached Memcached monitoring Supported Memcached Exporter Integration
    Inspection Health check Blackbox can be used to regularly test the connectivity of the target service, helping you stay up to date with the service health and discover exceptions in time. Supported Health Check
    CM CM Tencent Cloud service monitoring Supported -
    Custom Scrape task The native `static_config` can be used to configure a scrape task. Supported Scrape Configuration Description
    CVM scrape task The extended `cvm_sd_config` can be used to configure a CVM scrape task. Supported Scrape Configuration Description

    Directions

    Quick installation

    Some services support quick agent installation. For more information, see Integration Center > List of Supported Services.

    1. Log in to the TMP console.
    2. In the instance list, select the corresponding TMP instance.

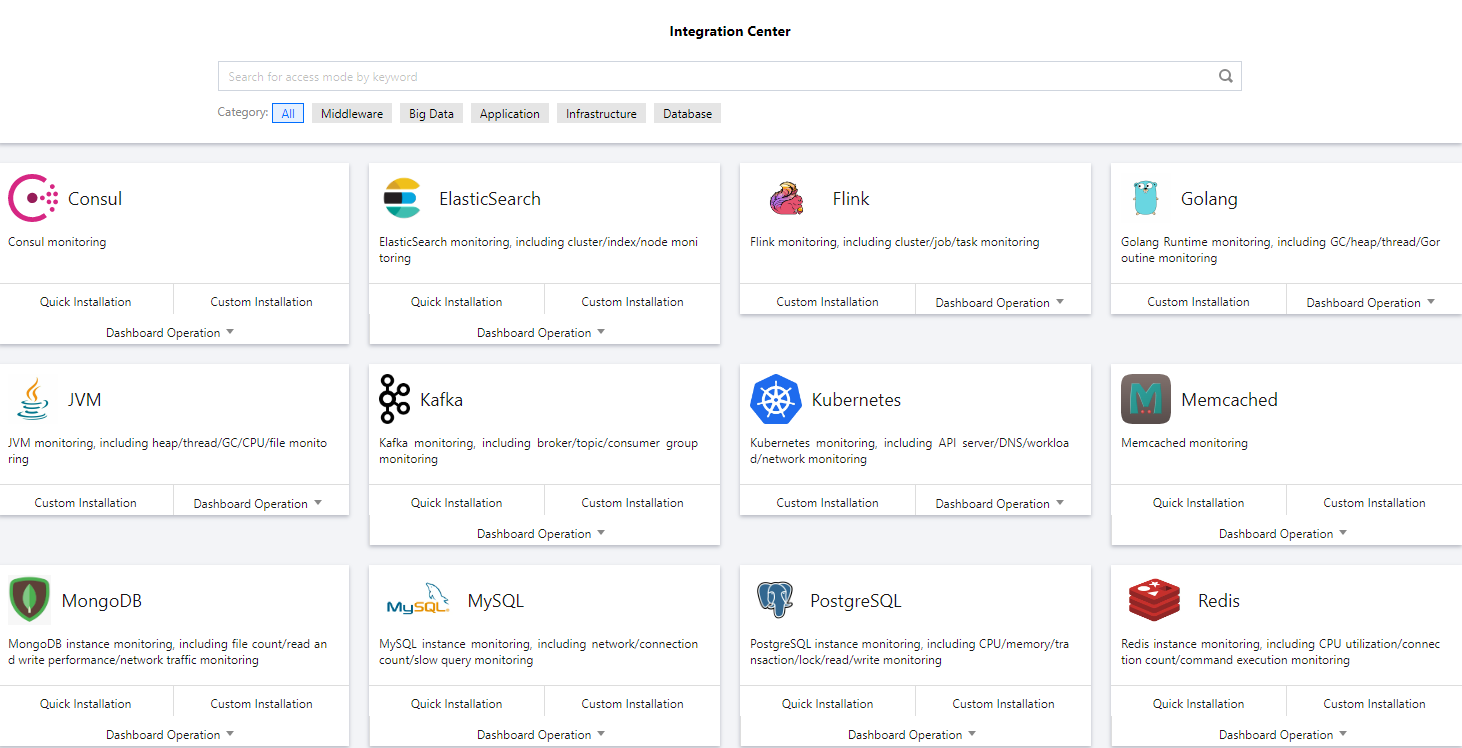

    3. Enter the instance details page and click Integration Center.

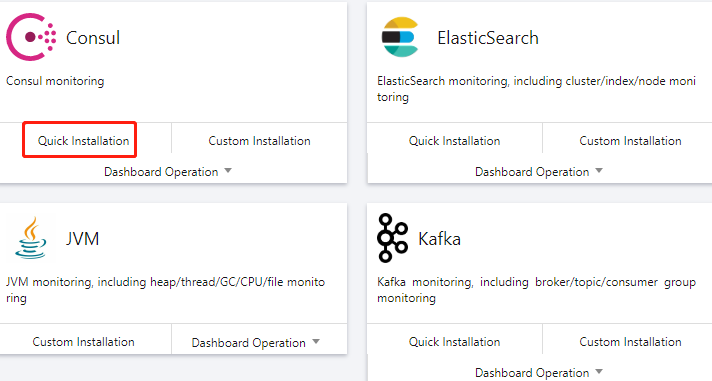

    4. In the Integration Center, select the service that supports quick installation and click Install in the bottom-left corner.

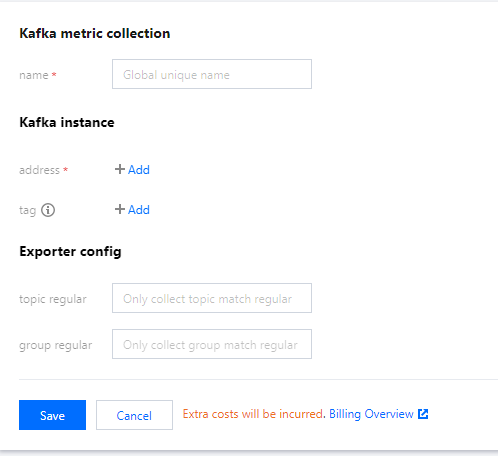

    5. On the Integration List page, enter the metric collection name and address and click Save. Below is a sample for Kafka:

    Custom installation

    1. Log in to the TMP console.
    2. In the instance list, select the corresponding TMP instance.
    3. Enter the instance details page and click Integration Center.
    4. Select the target service in the integration center. You can click Integration Guide to view the integration guide. After successful integration, you can monitor the corresponding service in real time. You can also click Install/Upgrade in Dashboard Operation to install or upgrade the Grafana dashboard for the service.
