Alarm Policy Migration

Last updated: 2021-04-09 10:21:51


    Elastic MapReduce upgraded its server and component service monitoring items on September 10, 2019. A new policy type "Elastic MapReduce" has been added, which covers hundreds of monitoring metrics. You can configure alarm policies under the Elastic MapReduce policy type in Cloud Monitor. The original policy type "EMR" will be deprecated at 23:00 on March 30, 2021, and all the configured "EMR" alarm policies will be invalidated. To add new alarm policies, please configure under the "Elastic MapReduce" policy type.

    Comparison of "EMR" and "Elastic MapReduce" policy types:

    Policy Type Metric Coverage Support and Maintenance
  • Cluster alarming (12 metrics)
  • Node alarming (8 metrics)
  • It will be deprecated at 23:00 on April 9, 2021 and no longer maintained.
    Elastic MapReduce
  • Server monitoring
  • Service monitoring
  • Cluster monitoring
  • It was released on September 10, 2019 and will be maintained.


    The "Elastic MapReduce" policy type covers all the metrics of the "EMR" policy type. For details, please see Comparison of New and Original Metrics.

    Alarm Policy Migration

    After the "EMR" policy type is deprecated, the system will automatically migrate existing alarm policies under the "EMR" policy type to the "Elastic MapReduce" policy type. Please see further notifications for specific rules and verification methods.


    A few users might need to migrate them manually.

    Steps for manual migration are as follows:

    1. Sort out exiting alarm metrics and policies.

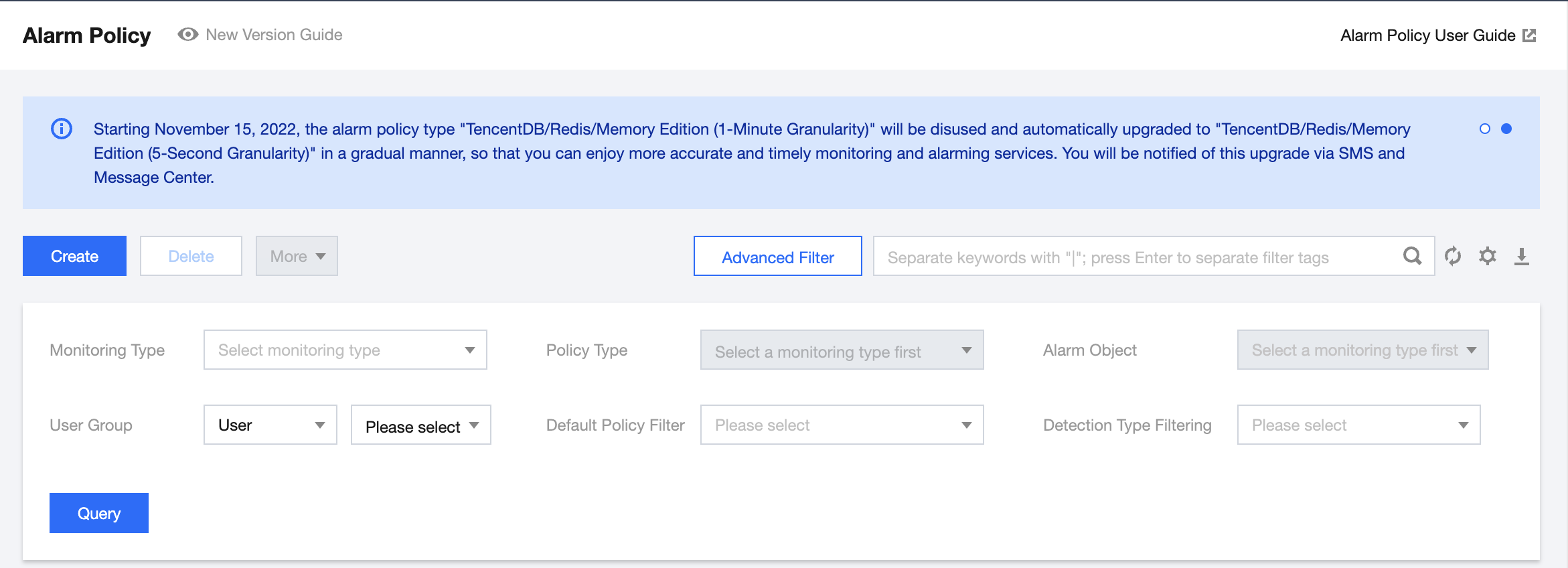

      Log in to the Cloud Monitor console, select Alarm Management > Alarm Configuration > Alarm Policy on the left sidebar, click Advanced Filter, select any sub-type of the "EMR" policy type in Policy Type, search for related alarm policies, and download them. Repeat this step to download the alarm policies under other sub-types of the "EMR" policy type.
    2. Configure alarm policies.
      Click Alarm Configuration in the cluster list to go to the Alarm Policy page, click Create, select Elastic MapReduce in Policy Type, and configure an alarm policy according to one of the policies sorted out and downloaded in step 1. Repeat this step to configure other alarm policies. For more information on the configuration method, see Configuring Alarms.
    3. Verify the new alarm policies.
      Verify that the "Elastic MapReduce" alarm policies are activated and can successfully trigger alarms. Set trigger thresholds in Metric Alarm, set recipient groups or recipients, and select receiving channels (email, SMS, or WeChat) for verification. Take memory zone percentage\_SO as an example: when the statistical period is five minutes, and the percentage is greater than or equal to 1% and lasts for five minutes, an alarm will be triggered once every five minutes.
    4. Delete original alarm policies.
      After verifying the new alarm policies, delete the original alarm policies configured under the "EMR" policy type. Select any sub-type of the "EMR" policy type in Policy Type, search for related alarm policies, and delete them. Repeat this step to delete the alarm policies under other sub-types of the "EMR" policy type.
      If you encounter any issues during the migration, submit a ticket to us for help.

    Original Policy Type Metric/Event Alarm Original Metric/Event Name New Policy Type New Metric/Event Name
    EMR-cluster alarm Metric alarm Used HDFS storage space Elastic MapReduce-HDFS-overview Cluster storage capacity_CapacityUsed
    Metric alarm HDFS storage utilization Elastic MapReduce-HDFS-overview HDFS storage space utilization_capacityused
    Metric alarm YARN app blocks Elastic MapReduce-YARN-overview Applications_pending
    Metric alarm Failed YARN apps Elastic MapReduce-YARN-overview Applications_failed
    Metric alarm Assigned cluster CPU cores Elastic MapReduce-YARN-overview Cores_allocatedVirtualCores
    Metric alarm Cluster CPU utilization Elastic MapReduce-YARN-overview CPU utilization_usageRatio
    Metric alarm Available cluster memory Elastic MapReduce-YARN-overview Memory_availableMB
    Metric alarm Cluster memory utilization Elastic MapReduce-YARN-overview Memory utilization_usageRatio
    Metric alarm Cluster container blocks Elastic MapReduce-YARN-overview Containers_containersPending
    Metric alarm HBase requests Elastic MapReduce-HBASE-overview Total cluster requests_clusterRequests
    Metric alarm Time taken for HBase sync No longer maintained -
    Metric alarm HBase sync log length No longer maintained -
    Event alarm Node monitoring heartbeat missing Elastic MapReduce-server monitoring-network Node monitoring heartbeat missing
    Event alarm Process restart Elastic MapReduce-server monitoring-process Process OOM
    EMR-node alarm Metric alarm Disk utilization Elastic MapReduce-server monitoring-disk Disk capacity utilization_used_all
    Metric alarm Memory usage Elastic MapReduce-server monitoring-memory Memory usage_MemFree
    Metric alarm Server restart No longer maintained Server restart
    Metric alarm Memory utilization Elastic MapReduce-server monitoring-memory Memory utilization_used_percent
    Metric alarm CPU utilization Elastic MapReduce-server monitoring-CPU CPU utilization_idle
    Metric alarm Inbound packets over private networks No longer maintained -
    Metric alarm Outbound packets over private networks No longer maintained -
    Metric alarm TCP connections Elastic MapReduce-server monitoring-network TCP connections
