    This document describes how to quickly integrate the TRTC Windows or macOS SDK into your project using Qt.




    Integration for Windows

    Development environment requirements

    OS: Windows 7 or later
    Development environment: Visual Studio 2015 or later (you need to set up a Qt development environment). Visual Studio 2015 is recommended.
    Note:
    If you are not sure how to set up a Qt development environment in Visual Studio, see step 4 in README.

    Directions

    The following describes how to integrate the TRTC Windows C++ SDK into a Qt project in Visual Studio.

    Step 1. Download the SDK

    Download the latest version of the TRTC SDK.
    You only need to import the SDK files for Windows C++ in the SDK folder. For example, you can find the SDK files for 64-bit Windows in ./SDK/CPlusPlus/Win64/. The folder contains the following files:
    Directory
    Description
    include
    API header files with comments
    lib
    The LIB file for compilation and DLL files to load

    Step 2. Create a project

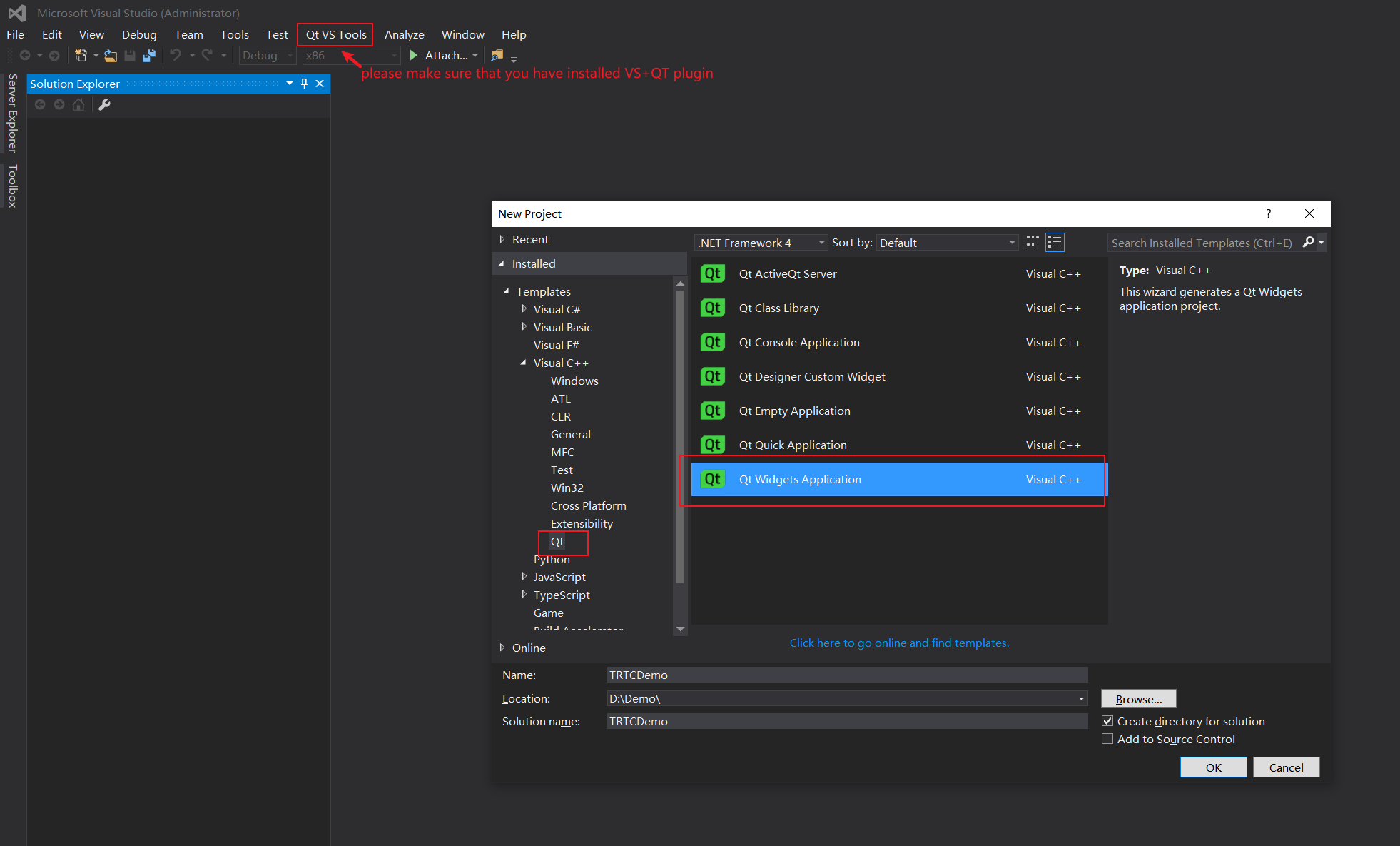

    Take Visual Studio 2015 for example. Make sure you have installed Qt and Qt Visual Studio Add-in. Then, open Visual Studio and create a Qt application named TRTCDemo.

    For the example in this guide, Qt Widgets Application is chosen. Click Add, and then click Next in subsequent steps until the project is created.

    Step 3. Copy and paste files

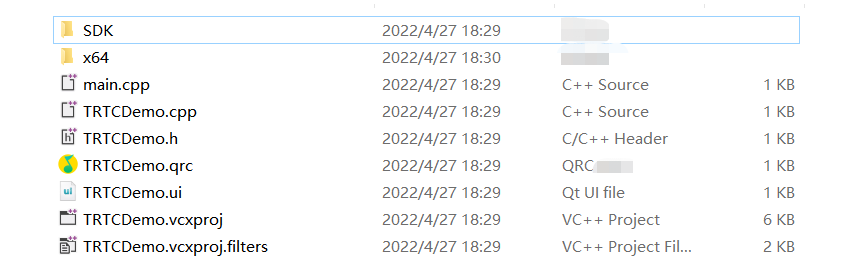

    Copy the SDK folder to the directory where TRTCDemo.vcxproj is located.
    Note:
    Because you will only need the C++ SDK, you can delete the CSharp folder in SDK.




    Step 4. Modify project configuration

    Select Solution Explorer, right-click TRTCDemo, and select Properties. Configure the project as follows:

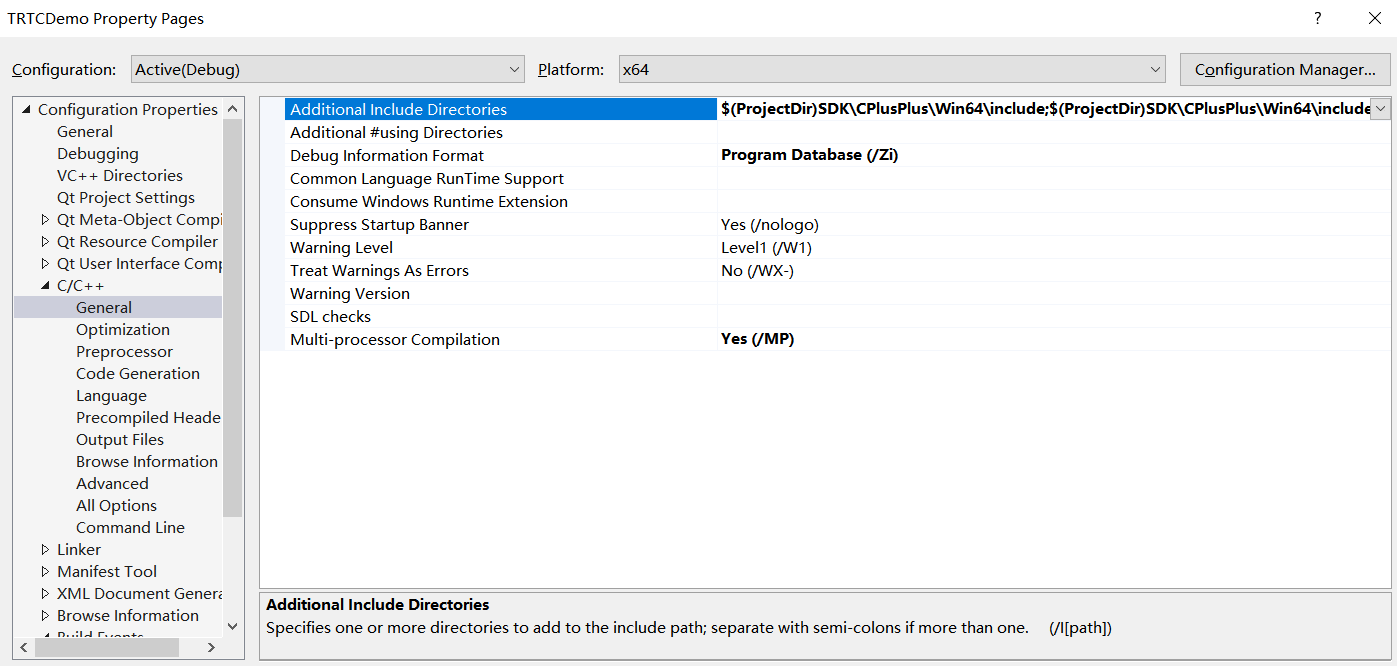

    1. Add include directories. Go C/C++ > General. Add the $(ProjectDir)SDK\\CPlusPlus\\Win64\\include and $(ProjectDir)SDK\\CPlusPlus\\Win64\\include\\TRTC header file directories (for 64-bit Windows) to Additional Include Directories.
    Note:
    For 32-bit Windows, add $(ProjectDir)SDK\\CPlusPlus\\Win32\\include and $(ProjectDir)SDK\\CPlusPlus\\Win32\\include\\TRTC.

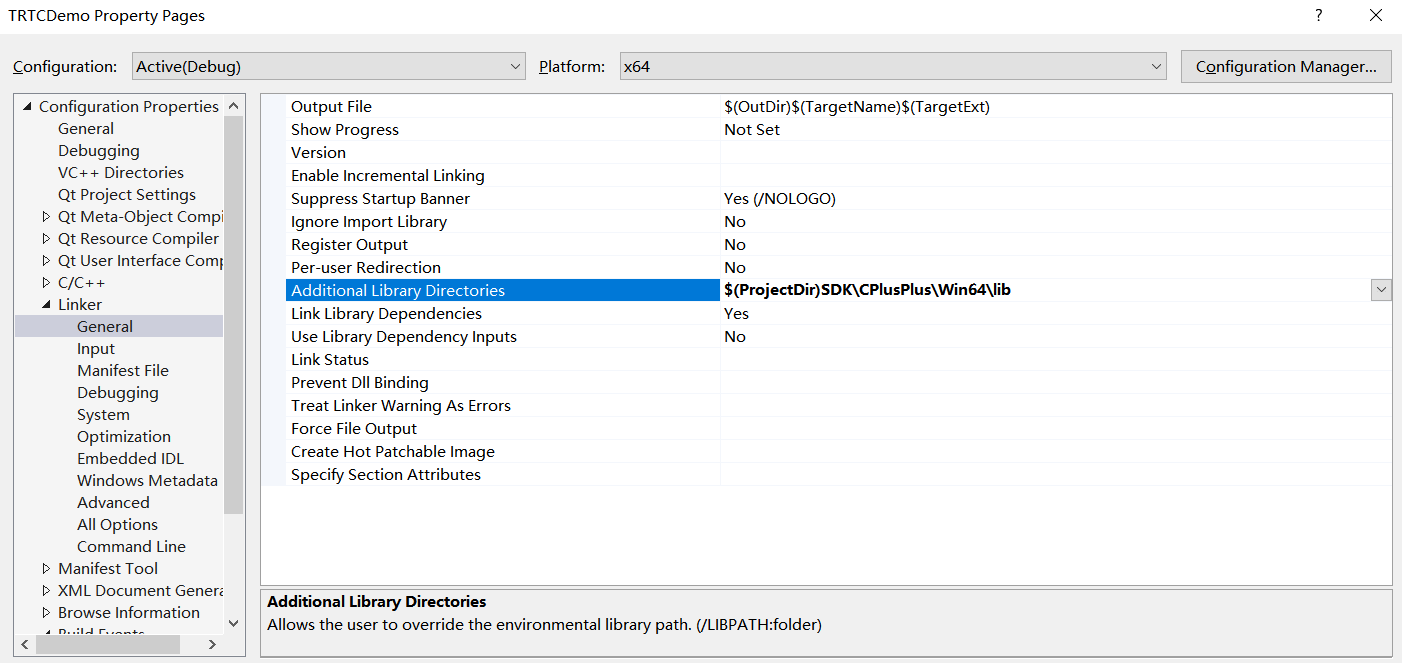

    2. Add additional library directories
    Go to Linker > General. Add the $(ProjectDir)SDK\\CPlusPlus\\Win64\\lib directory (for 64-bit Windows) to Additional Library Directories.
    Note:
    For 32-bit Windows, add $(ProjectDir)SDK\\CPlusPlus\\Win32\\lib.

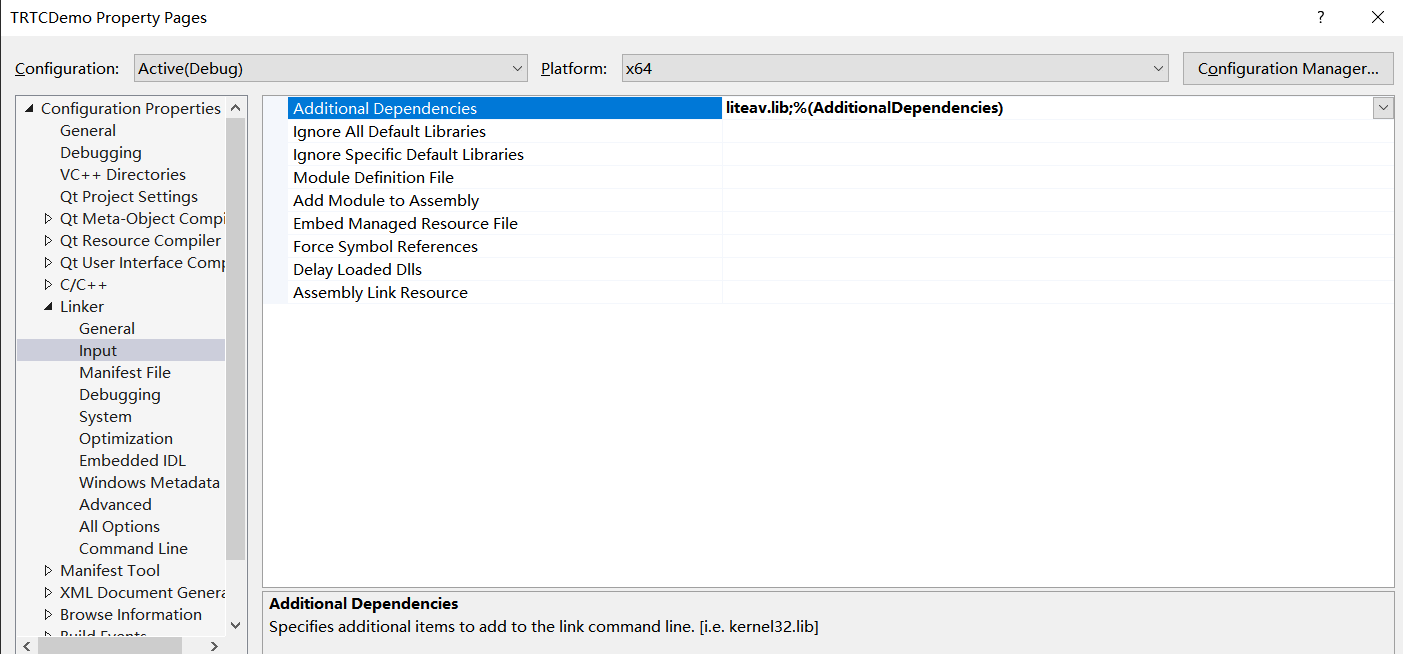

    3. Add the library file
    Go to Linker > Input, and add the library file liteav.lib to Additional Dependencies.

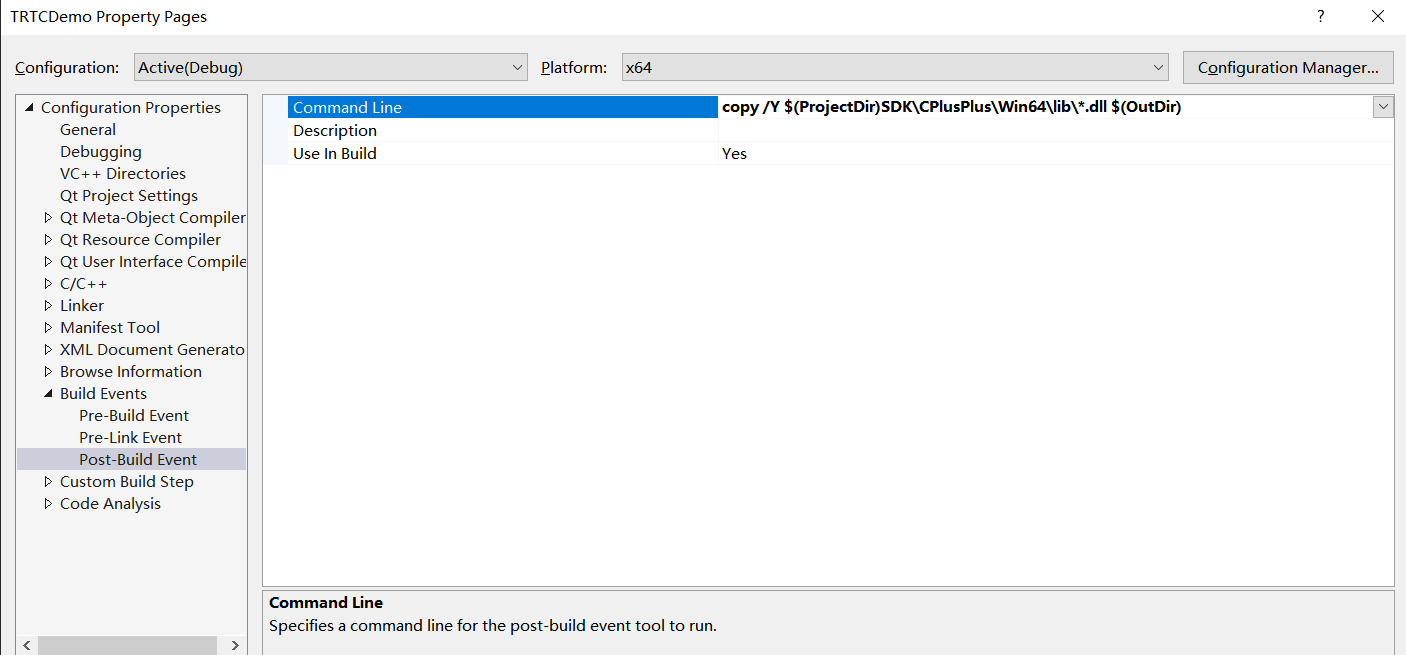

    4. Add the copy command
    Go to Build Events > Post-build Events and add the copy command copy /Y $(ProjectDir)SDK\\CPlusPlus\\Win64\\lib\\*.dll $(OutDir) (for 64-bit Windows) to Command Line. This ensures that the DLL files of the SDK are automatically copied to the project’s execution directory after compilation.
    Note:
    For 32-bit Windows, add copy /Y $(ProjectDir)SDK\\CPlusPlus\\Win32\\lib\\*.dll $(OutDir).




    Step 5. Print the SDK version number

    1. At the top of the TRTCDemo.cpp file, add the code below to import the header file:
    #include "ITRTCCloud.h"
    #include <QLabel>
    2. In the TRTCDemo::TRTCDemo constructor of TRTCDemo.cpp, add the following testing code:
    ITRTCCloud * pTRTCCloud = getTRTCShareInstance();
    std::string version(pTRTCCloud->getSDKVersion());

    QString sdk_version = QString("SDK Version: %1").arg(version.c_str());
    QLabel* label_text = new QLabel(this);
    label_text->setAlignment(Qt::AlignCenter);
    label_text->resize(this->width(), this->height());
    label_text->setText(sdk_version);
    3. Press F5 to run the project and print the version number of the SDK.




    Integration for macOS

    Development environment requirements

    OS: OS X 10.10 or later
    Development environment: Qt Creator 4.10.3 or later (Qt Creator 4.13.3 or later is recommended.)
    Development framework: Qt 5.10 or later

    Directions

    This section uses a QtTest project as an example to show you how to integrate the TRTC C++ SDK into your project in Qt Creator.

    1. Download the cross-platform C++ SDK
    1.1 Download the SDK, and decompress and open the file.
    1.2 Create an empty folder for the SDK in the same directory as your QtTest project, and copy TXLiteAVSDKTRTCMacx.x.x/SDK/TXLiteAVSDKTRTC_Mac.framework to the folder.
    2. Configure QTTest.pro Go to the directory of your QtTest project, open QTTest.pro with a text editor, and add the following SDK references.
    INCLUDEPATH += $$PWD/.
    DEPENDPATH += $$PWD/.

    LIBS += "-F$$PWD/base/util/mac/usersig"
    LIBS += "-F$$PWD/../SDK"
    LIBS += -framework TXLiteAVSDK_TRTC_Mac
    LIBS += -framework Accelerate
    LIBS += -framework AudioUnit

    INCLUDEPATH += $$PWD/../SDK/TXLiteAVSDK_TRTC_Mac.framework/Headers/cpp_interface

    INCLUDEPATH += $$PWD/base/util/mac/usersig/include
    DEPENDPATH += $$PWD/base/util/mac/usersig/include

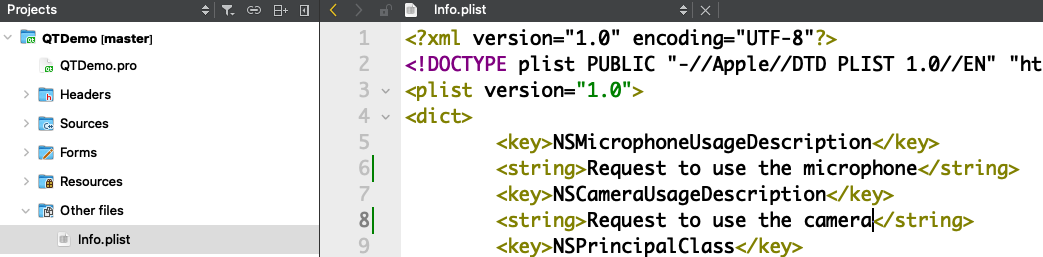

    3. Grant camera and mic permissions The TRTC SDK will use the device’s camera and mic, so you need to add permission requests to Info.plist.
    NSMicrophoneUsageDescription: requesting mic access
    NSCameraUsageDescription: requesting camera access
    As shown below:


    4. Reference the TRTC SDK
    Reference the SDK via the header file: #include "ITRTCCloud.h".
    Use the namespace: The methods and types of cross-platform C++ APIs are all defined in the trtc namespace. To simplify your code, we recommend you use the trtc namespace.
    Note:
    This concludes the integration process, and you can proceed to compile your project. You can download QTDemo to get more information on the use of cross-platform APIs of the SDK.

    FAQs

    If the following error occurs, check whether the SDK header file directories are correctly added as described in the project configuration step above.
    fatal error C1083: Could not open include file: “TRTCCloud.h”: No such file or directory
    If the following error occurs, check whether the SDK library directory and library file are correctly added as described in the project configuration step above.
    error LNK2019: unresolved external symbol "__declspec(dllimport) public: static class TXString __cdecl TRTCCloud::getSDKVersion(void)" (__imp_?getSDKVersion@TRTCCloud@@SA?AVTXString@@XZ), referenced in function "protected: virtual int __thiscall CTRTCDemoDlg::OnInitDialog(void)" (?OnInitDialog@CTRTCDemoDlg@@MAEHXZ)
