Web&H5 (Vue3)

Last updated: 2024-05-24 18:46:03
    This article will guide you through the quick integration of the TUICallKit component. You will complete several key steps within 10 minutes, ultimately obtaining a video call feature with a complete UI interface.




    TUICallKit Demo Experience

    If you want to experience audio and video calls, click to experience the Tencent RTC Demo.
    If you want to run a new project, please read Run Sample Demo.

    Environment preparations

    Node.js Version: Node.js ≥ v12.13.0 (the official LTS version is recommended, please ensure that the npm version matches the node version).
    Modern browser, supporting WebRTC APIs.

    Step 1. Activate the service

    Refer to Activate the Service to obtain SDKAppID, SDKSecretKey, which will be used as Mandatory Parameters in Step 4: Initialize the TUICallKit Component.

    Step 2. Create a Vue3 Project

    1. If you have not installed vue-cli, you can install it in terminal or cmd as follows. If you encounter installation issues, see FAQs.
    npm install -g @vue/cli
    2. Create a project through Vue CLI and select the configuration items depicted below.
    vue create callkit-demo



    3. After completing the project creation, switch to the project directory.
    cd callkit-demo

    Step 3. Download the TUICallKit Component

    1. Download the @tencentcloud/call-uikit-vue component.
    npm install @tencentcloud/call-uikit-vue
    2. Copy the debug directory to your project directory callkit-demo/src, it is necessary when generating userSig locally.
    MacOS
    Windows
    cp -r node_modules/@tencentcloud/call-uikit-vue/debug ./src
    xcopy node_modules\\@tencentcloud\\call-uikit-vue\\debug .\\src\\debug /i /e

    Step 4. Initialize the TUICallKit Component

    You can choose to import the sample code in the callkit-demo/src/App.vue file.The example code uses the Composition API approach.
    1. Call the TUICallKitServer.init API to log in to the component, you need to fill in SDKAppID, SDKSecretKey as two parameters in the code.
    <script setup>
    import { ref } from 'vue';
    import { TUICallKit, TUICallKitServer, TUICallType } from "@tencentcloud/call-uikit-vue";
    import * as GenerateTestUserSig from "./debug/GenerateTestUserSig-es"; // Refer to Step 3

    const SDKAppID = 0; // TODO: Replace with your SDKAppID (Notice: SDKAppID is of type number)
    const SDKSecretKey = ''; // TODO: Replace with your SDKSecretKey

    const callerUserID = ref('');
    const calleeUserID = ref('');

    //【1】Initialize the TUICallKit component
    const init = async () => {
    const { userSig } = GenerateTestUserSig.genTestUserSig({
    userID: callerUserID.value,
    SDKAppID,
    SecretKey: SDKSecretKey
    });
    await TUICallKitServer.init({
    userID: callerUserID.value,
    userSig,
    SDKAppID,
    });
    alert('TUICallKit init succeed');
    }
    </script>
    Parameter
    Type
    Note
    userID
    String
    From the definition of User ID, it is allowed to contain only upper and lower case letters (a-z, A-Z), numbers (0-9), underscores, and hyphens.
    SDKAppID
    Number
    The unique identifier for the audio and video application created in the Tencent RTC Console.
    SDKSecretKey
    String
    The SDKSecretKey of the audio and video application created in the Tencent RTC Console.
    userSig
    String
    A security protection signature used for user log in authentication to confirm the user's identity and prevent malicious attackers from stealing your cloud service usage rights.
    Explanation of userSig:
    Development environment: If you are running a demo locally and developing debugging, you can use the GenerateTestUserSig.genTestUserSig function in the debug file to generate a `userSig`. In this method, SDKSecretKey is vulnerable to decompilation and reverse engineering. Once your key is leaked, attackers can steal your Tencent Cloud traffic.
    Production environment: If your project is going live, please use the Server-side Generation of UserSig method.
    2. Introduce the TUICallKit component, which contains the complete UI interaction during a call.
    <template>
    <span> caller's ID: </span>
    <input type="text" v-model="callerUserID">
    <button @click="init"> step1. init </button> <br>
    <span> callee's ID: </span>
    <input type="text" v-model="calleeUserID">
    <button @click="call"> step2. call </button>
    <!--2】Import the TUICallKit component: Call interface UI -->
    <TUICallKit style="width: 650px; height: 500px " />
    </template>

    Step 5. Make your first call

    1. using the TUICallKitServer.call API to make a call.
    // 【3】Make a 1v1 video call
    const call = async () => {
    await TUICallKitServer.call({
    userID: calleeUserID.value,
    type: TUICallType.VIDEO_CALL,
    });
    };
    2. Enter npm run serve / npm run dev to run the project.
    Warning:
    For local environment, please access under localhost protocol. For public network experience, please access under HTTPS protocol. For details, see Description of Network Access Protocol.

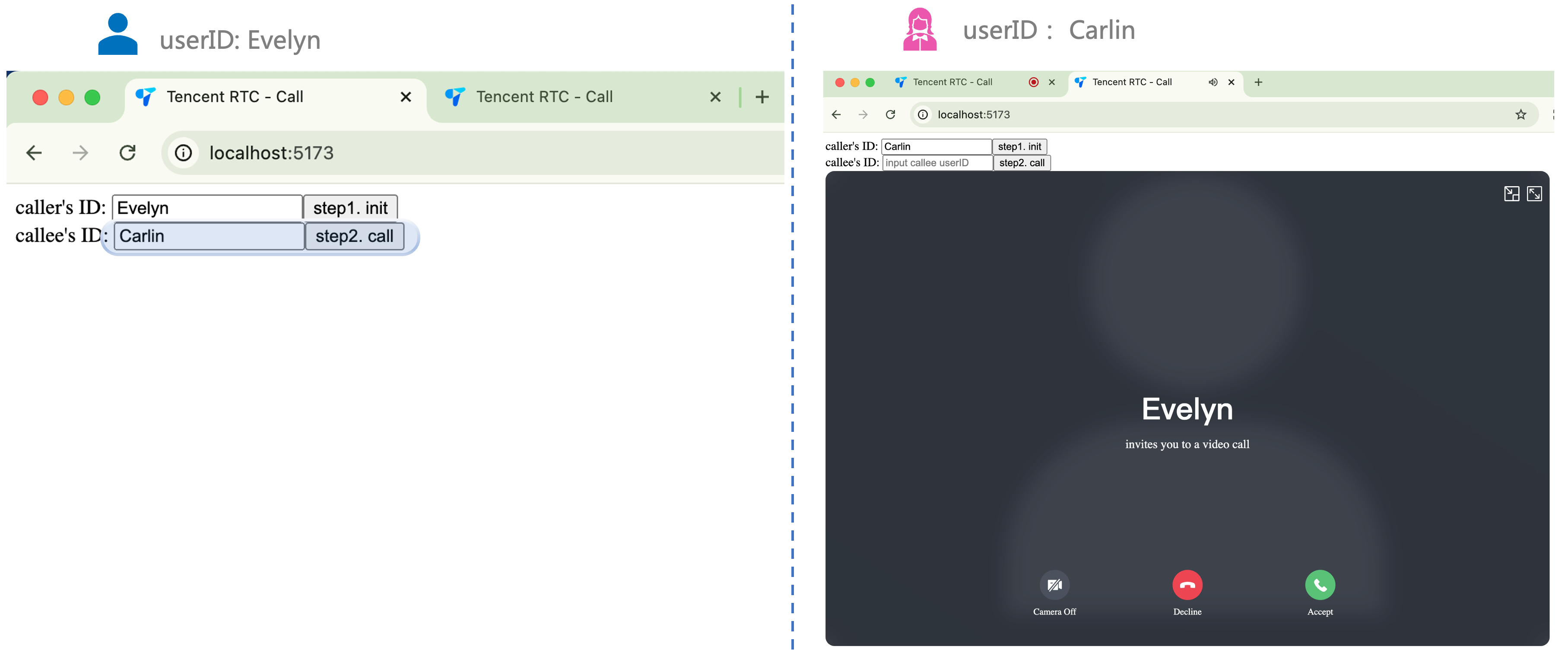

    3. Open two browser pages, enter different userID log in to (caller and callee), after both userID log in to successfully, click on step2. call to make a call.




    Additional Features

    FAQs

    If you encounter any problems with access and use, please refer to FAQs.

    Technical Consultation

    If you have any requirements or feedback, you can contact: info_rtc@tencent.com.
