Flutter
Last updated: 2025-11-12 18:07:07
Download PDF
This document describes how to rapidly integrate the TUICallKit component. You can complete the following key steps within 10 minutes and obtain a complete audio and video call interface.


Preparations

Environmental Requirements

Flutter Version: Flutter 3.10.0, Dart 3.0 and above.

Service Activation

Please refer to the Service Activation documentation to obtain your SDKAppID and SDKSecretKey. These credentials will be required in the subsequent login step.

Implementation

Step 1.Importing Components

Add the tencent_calls_uikit plugin dependency in your project's pubspec.yaml file:
flutter pub add tencent_calls_uikit

Step 2.Project Configuration

1. Native Project Configuration:
Android
iOS
1. Configure ProGuard Rules (Code Obfuscation):Since the SDK internally uses Java reflection, certain SDK classes must be added to the non-obfuscation list.
Enable Obfuscation Rules: In the android/app/build.gradle file, ensure that ProGuard rules are configured and enabled:
  android {
    ......
    buildTypes {
        release {
            ......
            minifyEnabled true
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}
Add Rules: Create a proguard-rules.pro file in the android/app directory (if it doesn't exist) and add the following code:
-keep class com.tencent.** { *; }
2. Configure and enable Multidex support in the android/app/build.gradle file.
  android {
    ......
    defaultConfig {
      ......
      multiDexEnabled true
    }
}
Grant Camera and Microphone Permissions:Because TUICallKit requires audio and video functionality, you must obtain authorization for the microphone and camera. Add the following two privacy usage descriptions to the top-level <dict> directory in your iOS project's Info.plist file:
<key>NSCameraUsageDescription</key>
<string>CallingApp requires access to your camera to display video during calls.</string>
<key>NSMicrophoneUsageDescription</key>
<string>CallingApp requires access to your microphone to capture audio during calls.</string>
Flutter Project Configuration:
Add TUICallKit.navigatorObserver to the navigatorObservers property of your Flutter application framework. Below is sample code using the MaterialApp framework:
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';

 ......

class XXX extends StatelessWidget {
  const XXX({super.key});

 @override
  Widget build(BuildContext context) {
    return MaterialApp(
      navigatorObservers: [TUICallKit.navigatorObserver],
      ......
    );
  }
}

Step 3. Login

This step is critical: you can only use the features provided by TUICallKit after successfully logging in by calling the login interface.
login
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';
import 'package:tencent_calls_uikit/debug/generate_test_user_sig.dart';
......

final String userID    = 'xxxxx';  // Replace with the UserID for the current user (required)
final int    sdkAppID  = 0;        // Replace with the SDKAppID obtained in the previous step
final String secretKey = 'xxxx';   // Replace with the UserSig for the current user (required)

void login() async {
    String userSig  = GenerateTestUserSig.genTestSig(userID, sdkAppID, secretKey);
    TUIResult result = await TUICallKit.instance.login(sdkAppID, userID, userSig);
    if (result.code.isEmpty) {
      print('Login success');
    } else {
      print('Login failed: ${result.code} ${result.message}');
    }
}
Parameter
Type
Description
userID
String
Only allowing a combination of uppercase and lowercase letters (a-z A-Z), numbers (0-9), hyphens, and underscores.
sdkAppID
int
The unique identifier SDKAppID of the audio and video application created in the Tencent Real-Time Communication (TRTC) Console.
secretKey
String
The SDKSecretKey of the audio/video application created in the Tencent Real-Time Communication (TRTC) Console.
userSig
String
A security protection signature used to authenticate user login, confirm whether the user is genuine, and prevent malicious attackers from misappropriating your cloud service usage rights.
Note：
Development environment: If you are in the local development and debugging stage, you can adopt the local GenerateTestUserSig.genTestSig function to generate userSig. In this method, the SDKSecretKey is very easy to decompile and reverse engineer. Once your key is leaked, attackers can steal your Tencent Cloud traffic.
Production environment: If your project is ready to launch, use server-side generation of UserSig.

Step 4.Set Nickname and Avatar [Optional]

After a successful login, you can call the setSelfInfo function to set your nickname and avatar. The set nickname and avatar will be displayed on the caller/callee interface.
setSelfInfo
Flutter（Dart）
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart

void _setSelfInfo() {
    String nickname = "jack"
    String avatar = "https:/****/user_avatar.png"
    TUIResult result = TUICallKit.instance.setSelfInfo(nickname, avatar);
}
Parameter
Type
Description
nickname
String
Target user's nickname
avatar
String
Target user's avatar

Step 5.Initiating a Call

The caller initiates a call by invoking the calls function and specifying the media type (voice or video) and the callee's User ID list (userIdList). The calls interface supports both one-to-one and group calls. A one-to-one call is initiated when the userIDList contains only a single User ID; a group call is initiated when it contains multiple User IDs.
calls
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';
......

void _call() {
    List<String> userIdList = ['vince'];
    TUICallMediaType mediaType = TUICallMediaType.audio;
    TUICallParams callParams = TUICallParams();
    TUICallKit.instance.calls(participantIds, mediaType, callParams);
}
Parameter
Type
Description
userIdList
List<String>
Target user ID list.
mediaType
Media type of the call, such as video call, voice call.
params
Call extension parameters, such as room number, call invitation timeout, offline push custom content.

Step 6.Answering a Call

Once the callee successfully logs in, the caller can initiate a call, and the callee will receive the call invitation, accompanied by a ringtone and vibration.

More Features

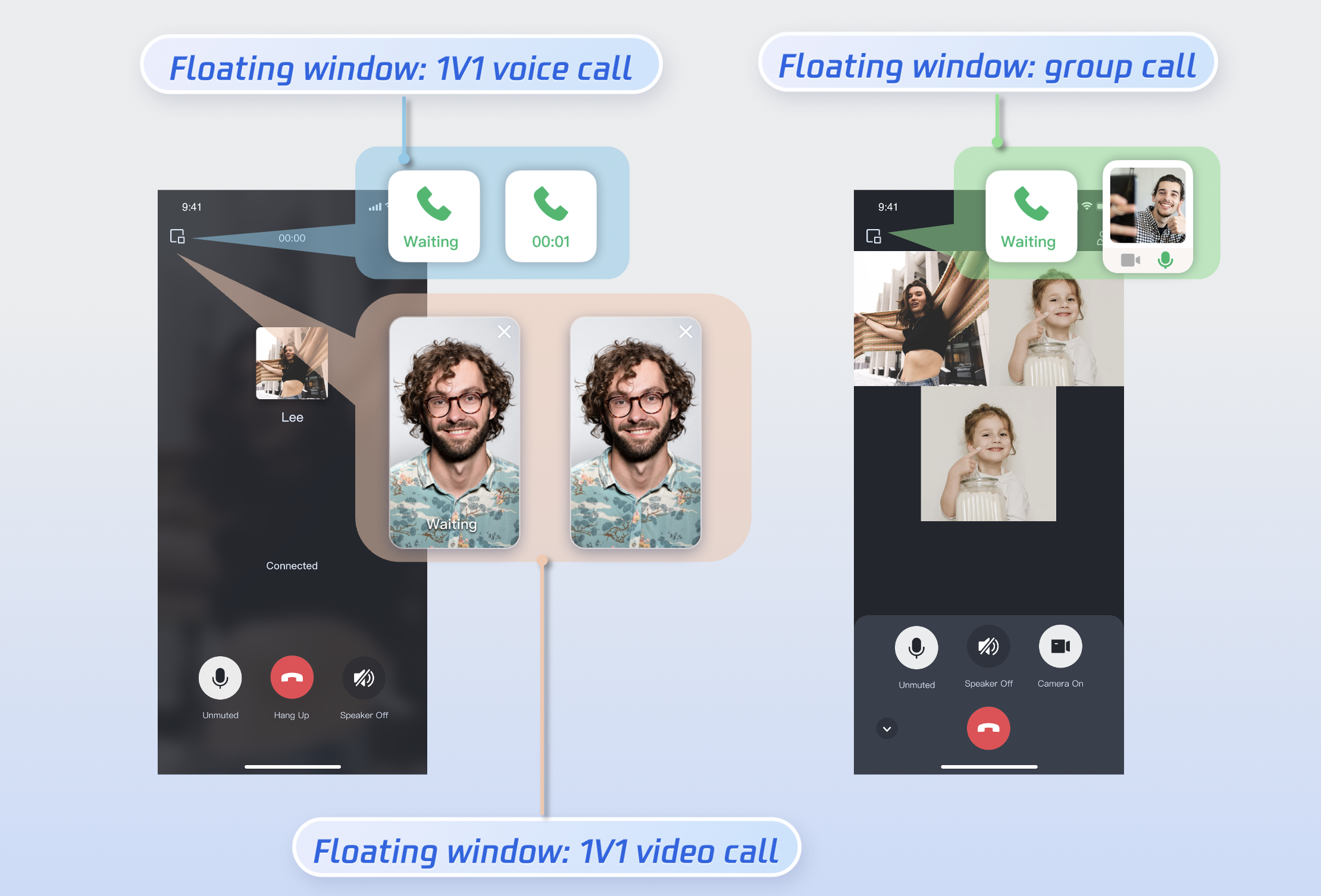

Enabling Floating Window

You can enable/disable the floating window feature by calling enableFloatWindow. This feature should be enabled when initializing the TUICallKit component, with the default status being Off (false).

enableFloatWindow
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';
......

void _enableFloatWindow() {
    TUICallKit.instance.enableFloatWindow(true);
}
Details: Default false, the floating window button in the top-left corner of the call interface is hidden. Set to true to display.

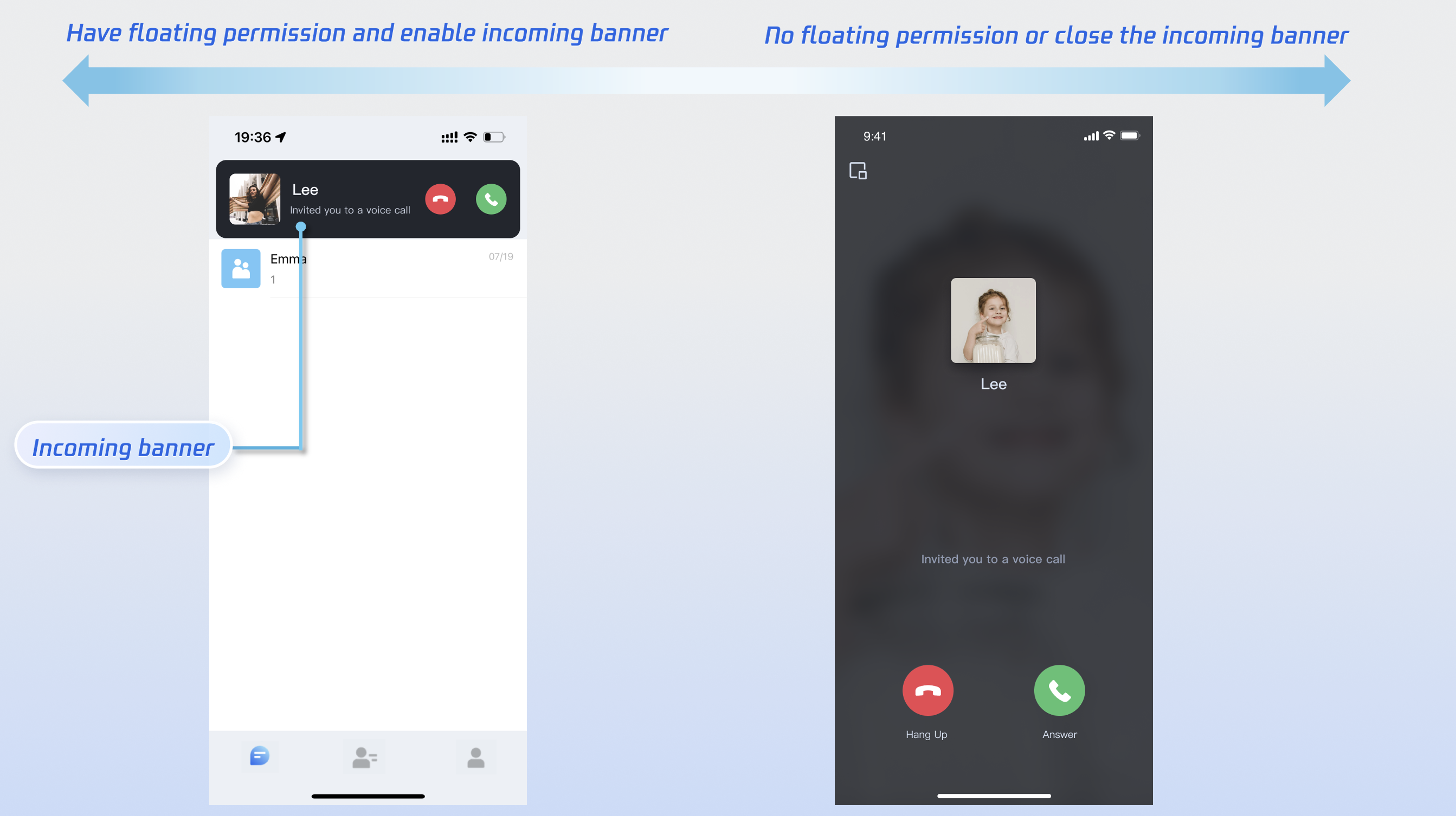

Enabling Banner

You can enable or disable the incoming call banner display by calling enableIncomingBanner. By default, this feature is disabled (false). When the callee receives an inbound call, the full-screen call waiting interface is shown first. When the banner is enabled, a notification banner will display initially, switching to the full-screen view as required. Note that displaying the banner requires floating window permission. The exact display behavior depends on permission settings and whether the app is running in the foreground or background.

enbalecomingBanner
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';
......

void _enableFloatWindow() {
    TUICallKit.instance.enableIncomingBanner(true);
}
Details: Default false. The callee side pops up the full-screen call waiting interface by default when receiving an invitation. When enabled, a banner is displayed first, then the full-screen call interface is pulled up as needed.

Multi-Person Calling

When the caller uses the calls method to initiate a call, if the list of called users exceeds one person, it is automatically recognized as a multi-person call. Other members can then join this multi-person call using the join method.
Initiating a Multi-person Call: When the calls method is used to initiate a call, if the callee User ID list (userIdList) contains more than one user, it will be automatically deemed a multi-person call.
calls
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';
......

void _call() {
    List<String> userIdList = ['vince','mike'];
    TUICallMediaType mediaType = TUICallMediaType.audio;
    TUICallParams callParams = TUICallParams();
    TUICallKit.instance.calls(participantIds, mediaType, callParams);
}
Parameter
Type
Description
userIdList
List<String>
Target user ID list.
mediaType
Media type of the call, such as video call, voice call.
params
Call extension parameters, such as room number, call invitation timeout, offline push custom content.
Joining a Multi-person Call: You can use the join method to enter the specified multi-person call.
join
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';

void join() {
    String callId = "123456";
    TUICallKit.instance.join(callId);
}
Parameter
Type
Description
callId
String
The unique ID for this call.

Language Settings

Supported Languages: We currently support Simplified Chinese, English, and Japanese. The default language is English.
Switching Languages: TUICallKit does not provide a separate language switching API. Its interface language will automatically align with the language setting used by the application's current root component (such as MaterialApp or CupertinoApp).
Note：
If you need to set up other languages, please contact us at info_rtc@tencent.com for assistance.

Ringtone Setting

You can set the default ringtone, incoming call silent mode, and Offline Push Ringtone in the following ways:
Setting Default Ringtone (Method 1): If you include TUICallKit component via source code, you can replace the resource file（ringtone when initiating a call、ringtone when initiating a call）to set a custom default ringtone.
Setting Default Ringtone (Method 2): Use the setCallingBell interface to set the incoming call ringtone received by the callee.
setCallingBell
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';
......

void _setCallingBell() {
    TUICallKit.instance.setCallingBell('flieName');
}
Details:The ringtone file must be placed in the main project's assets and configured in the main project's pubspec.yaml file.
Parameter
Type
Description
fileName
String
Ringtone Name.
Incoming call silent mode: You can set mute mode through enableMuteMode.
enableMuteMode
import 'package:tencent_calls_uikit/tencent_calls_uikit.dart';
......

void _setCallingBell() {
    TUICallKit.instance.enableMuteMode(true);
}
Details: When set to true, incoming call requests will not trigger ringtone playback (silent mode).
Custom Offline Push Ringtone: Please refer to the specific setup methods for iOS and Android below.
Android
iOS
For FCM, the push ringtone is set by the application's configured notification sound.
For Huawei, Xiaomi, and APNs push services, the push ringtone must be configured when calling the calls methods by setting the iOSSound and androidSound fields within TUIOfflinePushInfo.
VoIP push notifications do not support custom ringtones.
For APNs push notifications, you can modify the offline message ringtone on the iOS platform by setting the TUIOfflinePushInfo.iOSSound parameter, which is located in the params parameter of the calls interfaces.

Customizing Your UI

Replacing Icon Button

You can directly replace the icons under the assets/images folder to ensure the icon color and style remain consistent throughout the entire App. The following list shows basic feature buttons. You can replace the corresponding icons to fit your own business scenario.

FAQs

If you encounter any issues during integration and use, please refer to Frequently Asked Questions.

Contact Us

If you have any suggestions or feedback, please contact info_rtc@tencent.com.
