Feature Overview

TUILiveKit is a comprehensive voice chat room component. After integration, you can quickly implement the following key modules:

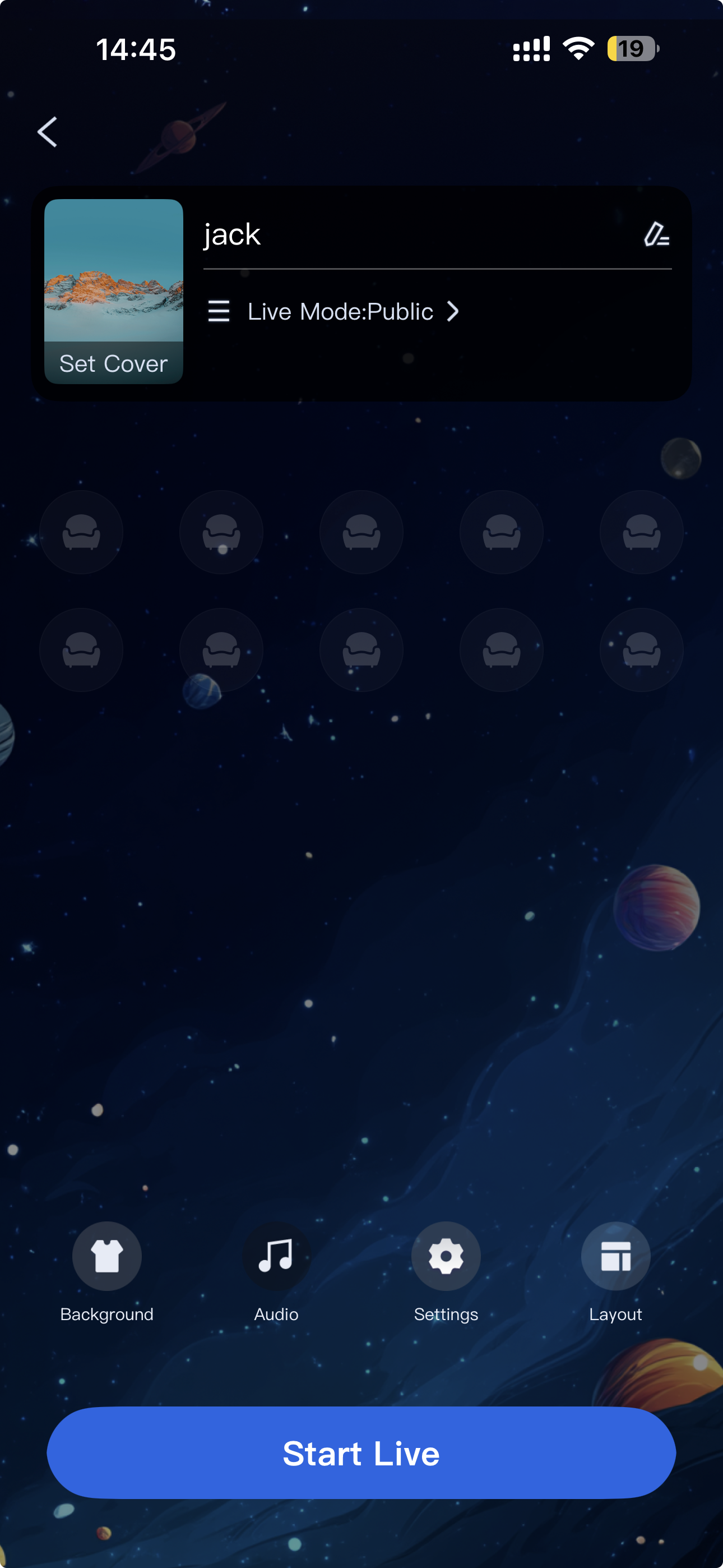

Host Preparation Page

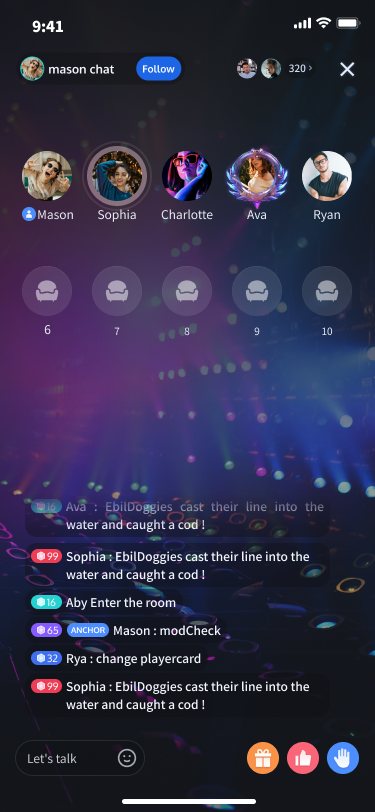

Host Live Page

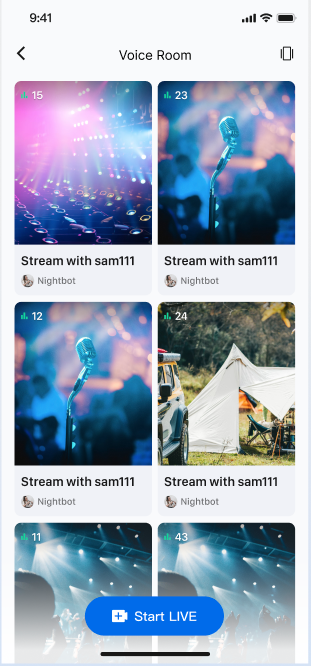

Live Stream List
Audience Viewing Page













Prerequisites

Activate Service

Before using TUILiveKit, please refer to Activate Service to get the TUILiveKit trial version or activate the paid version.

Environment Requirements

Xcode: Requires Xcode 15 or a later version.
iOS: Supports devices running iOS 13.0 or a later version.
CocoaPods environment: A CocoaPods environment must be installed. If you haven't installed it, please refer to the CocoaPods installation guide, or follow these steps:
Install CocoaPods using gem: execute the sudo gem install cocoapods command in the terminal to install.
Note:
During the sudo gem install cocoapods installation process, you may be prompted to enter your computer's password. Enter the administrator password as prompted.

Integrate TUIKit

Step 1: Add the Component via CocoaPods

1. Add Pod Dependency：
If your project already has a Podfile:
Add the pod 'TUILiveKit' dependency to your project's Podfile. For example:
target 'YourProjectTarget' do
  # Other existing Pod dependencies...
  # Add pod 'TUILiveKit' dependency
  pod 'TUILiveKit'
end
If your project does not have a Podfile:
Use the cd command in the terminal to navigate to your .xcodeproj directory, then run pod init to create a Podfile. After creation, add the pod 'TUILiveKit' dependency. For example:
# If your project directory is /Users/yourusername/Projects/YourProject

# 1. cd to your .xcodeproj project directory
cd /Users/yourusername/Projects/YourProject

# 2. Run pod init. After this command completes, a Podfile will be generated.
pod init

# 3. Edit the generated Podfile to add the dependency
target 'YourProjectTarget' do
  # Add pod 'TUILiveKit' dependency
  pod 'TUILiveKit'
end
2. Install the Component:
In the terminal, cd to the directory containing your Podfile, then run:
pod install

Step 2: Project Configuration

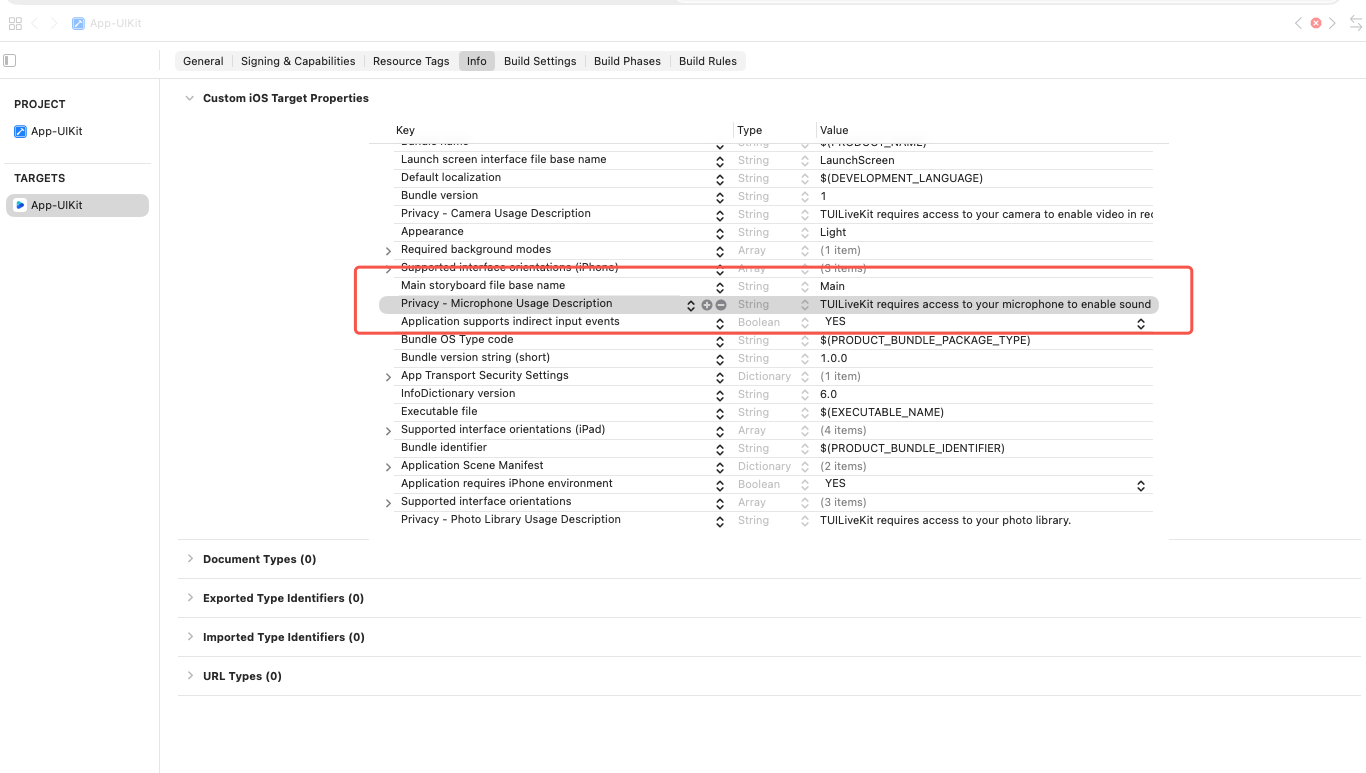

To use audio features, your app must request microphone permission. Add the following entries to your app's Info.plist file with appropriate usage descriptions. These descriptions are shown to users when the system requests permissions:
<key>NSMicrophoneUsageDescription</key>
<string>TUILiveKit requires access to your microphone. Enabling this allows recorded videos to have sound.</string>


Complete Login

After code integration, the next step is to complete the login. All TUILiveKit features require a successful login to function properly, so ensure your parameters are configured correctly.
Note:
In the example code, the login API is called directly. However, in a real-world application, it is highly recommended that you call the TUILiveKit login service only after your own user authentication and other internal login processes are complete. This prevents potential business logic confusion or data inconsistency caused by calling the login service too early, and it better aligns with your existing user management system.
Swift
Objective-C
//
//  AppDelegate.swift
//

// 1. Import TUICore
import TUICore

// 2. The example code completes login in didFinishLaunchingWithOptions. Recommendation for you: call the login service after completing your own login service.
func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {

    // 3. Call the login API
    TUILogin.login(1400000001,               // replace with the SDKAppID from the service console
            userID: "denny",                 // replace with your UserID
            userSig: "xxxxxxxxxxx") {        // You can calculate a UserSig in the console and fill it in this location
      print("login success")
    } fail: { (code, message) in
      print("login failed, code: \\(code), error: \\(message ?? "nil")")
    }

    return true
}
//
//  AppDelegate.m
//

// 1. Import TUICore
#import <TUICore/TUILogin.h>

// 2. The example code completes login in didFinishLaunchingWithOptions. Recommendation for you: call the login service after completing your own login service.
- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {

    // 3. Call the login API
    [TUILogin login:1400000001        // replace with the SDKAppID from the service console
             userID:@"denny"          // replace with your UserID
            userSig:@"xxxxxxxxxxx"    // You can calculate a UserSig in the console and fill it in this location
               succ:^{
        NSLog(@"login success");
    } fail:^(int code, NSString * _Nullable msg) {
        NSLog(@"login failed, code: %d, error: %@", code, msg);
    }];
    return YES;
}
Login API Parameter Description
Parameter
Type
Description
SDKAppID
Int
Get this from TRTC console > Application management.
UserID
String
The unique ID for the current user. Must contain only English letters, numbers, hyphens, and underscores.
userSig
String
A ticket for Tencent Cloud authentication. Please note:
Development Environment: You can use the local GenerateTestUserSig.genTestSig function to generate a UserSig or generate a temporary UserSig via the UserSig Generation Tool.
Production Environment: To prevent key leakage, you must use a server-side method to generate UserSig. For details, see Generating UserSig on the Server.
For more information, see How to Calculate and Use UserSig.

Handling Login Exception Status [Optional]

TUILogin provides a login status callback mechanism to help you handle possible login exceptions, mainly including "kicked offline" and "signature expired" callbacks:
Kicked Offline: If a user is kicked offline while online, the SDK will notify you via the onKickedOffline callback. At this point, you can display a UI prompt to the user and call TUILogin.login to login again.
Signature Expired: If a user receives the onUserSigExpired callback while online, it means the userSig previously issued for that user has expired. If the user's login session on your backend is still valid, you can have your app request a new userSig from your backend and call TUILogin.login to renew the login session.
Swift
Objective-C
// YourLoginService represents the business module responsible for login
class YourLoginService: NSObject {

    // Listen to login status callback
    func addLoginListener() {
        TUILogin.add(self)
    }
    // Cancel listening to login status callback
    func removeLoginListener() {
        TUILogin.remove(self)
    }
}

// Implement login callback TUILoginListener
extension YourLoginService: TUILoginListener {

    // User kicked offline callback
    func onKickedOffline() {
      // Your business code: UI prompt user, then log in again
    }


     // User signature expired callback
    func onUserSigExpired() {
      // Your business code: If the current user is still logged in on your backend, you can have your app request a new userSig from your backend and call TUILogin.login to renew the login status.
    }
}
@interface YourLoginService() <TUILoginListener>

// Listen to login status callback
- (void)addLoginListener;

// Cancel listening to login status callback
- (void)removeLoginListener;

@end

@implementation YourLoginService

// Listen to login status callback
- (void)addLoginListener {
    [TUILogin add:self];
}

// Cancel listening to login status callback
- (void)removeLoginListener {
    [TUILogin remove:self];
}

#pragma mark - TUILoginListener

// User kicked offline callback
- (void)onKickedOffline {
    // Your business code: UI interaction prompts user, then log in again
}

// User signature expired callback
- (void)onUserSigExpired {
    // Your business code: UI interaction prompts user, then log in again
}

@end

Next Steps

Congratulations! You have successfully integrated the Voice Chat Room component and completed login. Next, implement features such as Host Live, Audience Viewing, and Live Room List. See the table below for more details:
Feature
Description
Integration Guide
Host Live Streaming
The complete process for hosts to create a voice chat room, including preparation and all live interactions.
Integration Guide
Audience Viewing
Audience members can listen, request to join the mic, view bullet comments, and more after entering a voice chat room.
Integration Guide
Live Stream List
Displays the list of available voice chat rooms and their details.
Integration Guide

FAQs

After executing pod install, why can't I find the latest version of TUILiveKit locally?

If you are unable to install the latest version of TUILiveKit, please follow these steps:
1. In the directory where the Podfile is located, delete Podfile.lock and Pods. You can choose to delete them manually or execute the following command in the terminal:
// cd to the directory where Podfile is located

rm -rf Pods/
rm Podfile.lock
2. In the directory where Podfile is located, execute pod install --repo-update
// cd to the directory where Podfile is located

pod install --repo-update

Do I need to call the login method every time I enter a room?

No. You usually only need to complete one TUILogin.login call. We recommend associating TUILogin.loginand TUILogin.logout with your own application's login business logic.

Is there a sample configuration for the Podfile that I can refer to?

You can refer to the GitHub TUILiveKit Example project Podfile sample file.
