Overview

This document describes how to access CKafka to send/receive messages with the SDK for C++ in a VPC.

Prerequisites

• Install GCC
• Download the demo

Directions

Step 1. Install the C/C++ dependency library

1. Upload the cppkafkademo in the downloaded demo to the Linux server.
2. Log in to the Linux server and install librdkafka.

Step 2. Send a message

1. Create the producer.c file.

/*
* librdkafka - Apache Kafka C library
*
* Copyright (c) 2017, Magnus Edenhill
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions are met:
*
* 1. Redistributions of source code must retain the above copyright notice,
*    this list of conditions and the following disclaimer.
* 2. Redistributions in binary form must reproduce the above copyright notice,
*    this list of conditions and the following disclaimer in the documentation
*    and/or other materials provided with the distribution.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
* LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
* CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
* SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
* INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
* CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
* ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
* POSSIBILITY OF SUCH DAMAGE.
*/
/**
* Simple Apache Kafka producer
* using the Kafka driver from librdkafka
* (https://github.com/edenhill/librdkafka)
*/
#include <stdio.h>
#include <signal.h>
#include <string.h>
#include <librdkafka/rdkafka.h>
static volatile sig_atomic_t run = 1;
/**
* @brief Signal termination of program
*/
static void stop (int sig) {
  run = 0;
  fclose(stdin); /* abort fgets() */
}
/**
* @brief Message delivery report callback.
*
* This callback is called exactly once per message, indicating if
* the message was succesfully delivered
* (rkmessage->err == RD_KAFKA_RESP_ERR_NO_ERROR) or permanently
* failed delivery (rkmessage->err != RD_KAFKA_RESP_ERR_NO_ERROR).
*
* The callback is triggered from rd_kafka_poll() and executes on
* the application's thread.
*/
static void dr_msg_cb (rd_kafka_t *rk,
                     const rd_kafka_message_t *rkmessage, void *opaque) {
  if (rkmessage->err)
      fprintf(stderr, "%% Message delivery failed: %s\n",
              rd_kafka_err2str(rkmessage->err));
  else
      fprintf(stderr,
              "%% Message delivered (%zd bytes, "
              "partition %"PRId32")\n",
          rkmessage->len, rkmessage->partition);
   /* The rkmessage is destroyed automatically by librdkafka */
}

int main (int argc, char **argv) {
  rd_kafka_t *rk;         /* Producer instance handle */
  rd_kafka_conf_t *conf;  /* Temporary configuration object */
  char errstr[512];       /* librdkafka API error reporting buffer */
  char buf[512];          /* Message value temporary buffer */
  const char *brokers;    /* Argument: broker list */
  const char *topic;      /* Argument: topic to produce to */
  const char *user;          /* Argument: sasl username */
  const char *passwd;     /* Argument: sasl password */
   /*
   * Argument validation
   */
  if (argc < 3) {
      fprintf(stderr, "%% Usage: %s <broker> <topic> <username> <password>  \n Optional:username password\n", argv[0]);
      return 1;
  }
   brokers = argv[1];
  topic   = argv[2];
   if(argc == 5) {
      user = argv[3];
      passwd = argv[4];
  }
    /*
   * Create Kafka client configuration place-holder
   */
  conf = rd_kafka_conf_new();
   /* Set bootstrap broker(s) as a comma-separated list of
   * host or host:port (default port 9092).
   * librdkafka will use the bootstrap brokers to acquire the full
   * set of brokers from the cluster. */
  if (rd_kafka_conf_set(conf, "bootstrap.servers", brokers,
                        errstr, sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr, "%s\n", errstr);
      return 1;
  }
   /* Set sasl config*/
  if( user && passwd ) {
      if(rd_kafka_conf_set(conf,"security.protocol","sasl_plaintext",errstr,sizeof(errstr)) !=RD_KAFKA_CONF_OK) {
          fprintf(stderr,"%s\n",errstr);
          return 1;
      }
      if(rd_kafka_conf_set(conf, "sasl.mechanisms", "PLAIN", errstr, sizeof(errstr)) != RD_KAFKA_CONF_OK) {
          fprintf(stderr,"%s\n",errstr);
          return 1;
      }
      if(rd_kafka_conf_set(conf,"sasl.username",user,errstr,sizeof(errstr)) !=RD_KAFKA_CONF_OK) {
          fprintf(stderr,"%s\n",errstr);
          return 1;
       }
      if(rd_kafka_conf_set(conf,"sasl.password",passwd,errstr,sizeof(errstr)) !=RD_KAFKA_CONF_OK) {
          fprintf(stderr,"%s\n",errstr);
          return 1;
      }
   }
  /* Tencent Cloud recommended configuration parameters
    * https://www.tencentcloud.com/document/product/597/30203?from_cn_redirect=1
    */
  //if(rd_kafka_conf_set(conf,"debug","none",errstr,sizeof(errstr))!= RD_KAFKA_CONF_OK) {  // Note that you need to carefully evaluate whether to enable debugging in the production environment
      //fprintf(stderr,"%s\n",errstr);
      //return 1;
  //}
   if(rd_kafka_conf_set(conf,"acks","1",errstr,sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr,"%s\n",errstr);
      return 1;
  }
  if(rd_kafka_conf_set(conf,"request.timeout.ms","30000",errstr,sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr,"%s\n",errstr);
      return 1;
  }
  if(rd_kafka_conf_set(conf,"retries","3",errstr,sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr,"%s\n",errstr);
      return 1;
  }
   if(rd_kafka_conf_set(conf,"retry.backoff.ms","1000",errstr,sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr,"%s\n",errstr);
      return 1;
  }
   /* Set the delivery report callback.
   * This callback will be called once per message to inform
   * the application if delivery succeeded or failed.
   * See dr_msg_cb() above.
   * The callback is only triggered from rd_kafka_poll() and
   * rd_kafka_flush(). */
  rd_kafka_conf_set_dr_msg_cb(conf, dr_msg_cb);
   /*
   * Create producer instance.
   *
   * NOTE: rd_kafka_new() takes ownership of the conf object
   *       and the application must not reference it again after
   *       this call.
   */
  rk = rd_kafka_new(RD_KAFKA_PRODUCER, conf, errstr, sizeof(errstr));
  if (!rk) {
      fprintf(stderr,
              "%% Failed to create new producer: %s\n", errstr);
      return 1;
  }
   /* Signal handler for clean shutdown */
  signal(SIGINT, stop);
   fprintf(stderr,
          "%% Type some text and hit enter to produce message\n"
          "%% Or just hit enter to only serve delivery reports\n"
          "%% Press Ctrl-C or Ctrl-D to exit\n");
   while (run && fgets(buf, sizeof(buf), stdin)) {
      size_t len = strlen(buf);
      rd_kafka_resp_err_t err;
       if (buf[len-1] == '\n') /* Remove newline */
          buf[--len] = '\0';
       if (len == 0) {
          /* Empty line: only serve delivery reports */
          rd_kafka_poll(rk, 0/*non-blocking */);
          continue;
      }
       /*
       * Send/Produce message.
       * This is an asynchronous call, on success it will only
       * enqueue the message on the internal producer queue.
       * The actual delivery attempts to the broker are handled
       * by background threads.
       * The previously registered delivery report callback
       * (dr_msg_cb) is used to signal back to the application
       * when the message has been delivered (or failed).
       */
      retry:
      err = rd_kafka_producev(
              /* Producer handle */
              rk,
              /* Topic name */
              RD_KAFKA_V_TOPIC(topic),
              /* Make a copy of the payload. */
              RD_KAFKA_V_MSGFLAGS(RD_KAFKA_MSG_F_COPY),
              /* Message value and length */
              RD_KAFKA_V_VALUE(buf, len),
              /* Per-Message opaque, provided in
               * delivery report callback as
               * msg_opaque. */
              RD_KAFKA_V_OPAQUE(NULL),
              /* End sentinel */
              RD_KAFKA_V_END);
       if (err) {
          /*
           * Failed to *enqueue* message for producing.
           */
          fprintf(stderr,
                  "%% Failed to produce to topic %s: %s\n",
                  topic, rd_kafka_err2str(err));
           if (err == RD_KAFKA_RESP_ERR__QUEUE_FULL) {
              /* If the internal queue is full, wait for
               * messages to be delivered and then retry.
               * The internal queue represents both
               * messages to be sent and messages that have
               * been sent or failed, awaiting their
               * delivery report callback to be called.
               *
               * The internal queue is limited by the
               * configuration property
               * queue.buffering.max.messages */
              rd_kafka_poll(rk, 1000/*block for max 1000ms*/);
              goto retry;
          }
      } else {
          fprintf(stderr, "%% Enqueued message (%zd bytes) "
                          "for topic %s\n",
                  len, topic);
      }
        /* A producer application should continually serve
       * the delivery report queue by calling rd_kafka_poll()
       * at frequent intervals.
       * Either put the poll call in your main loop, or in a
       * dedicated thread, or call it after every
       * rd_kafka_produce() call.
       * Just make sure that rd_kafka_poll() is still called
       * during periods where you are not producing any messages
       * to make sure previously produced messages have their
       * delivery report callback served (and any other callbacks
       * you register). */
      rd_kafka_poll(rk, 0/*non-blocking*/);
  }
    /* Wait for final messages to be delivered or fail.
   * rd_kafka_flush() is an abstraction over rd_kafka_poll() which
   * waits for all messages to be delivered. */
  fprintf(stderr, "%% Flushing final messages..\n");
  rd_kafka_flush(rk, 10*1000 /* wait for max 10 seconds */);
   /* If the output queue is still not empty there is an issue
   * with producing messages to the clusters. */
  if (rd_kafka_outq_len(rk) > 0)
      fprintf(stderr, "%% %d message(s) were not delivered\n",
              rd_kafka_outq_len(rk));
   /* Destroy the producer instance */
  rd_kafka_destroy(rk);
   return 0;
}

2. Run the following command to compile producer.c.

gcc -lrdkafka ./producer.c -o producer

3. Run the following command to send the message.

./produce <broker> <topic>

Parameter	Description
broker	Accessed network, which can be copied from the Network column in the Access Mode section on the Instance Details page in the console.
topic	Topic name, which can be copied from the Topic Management page in the console.

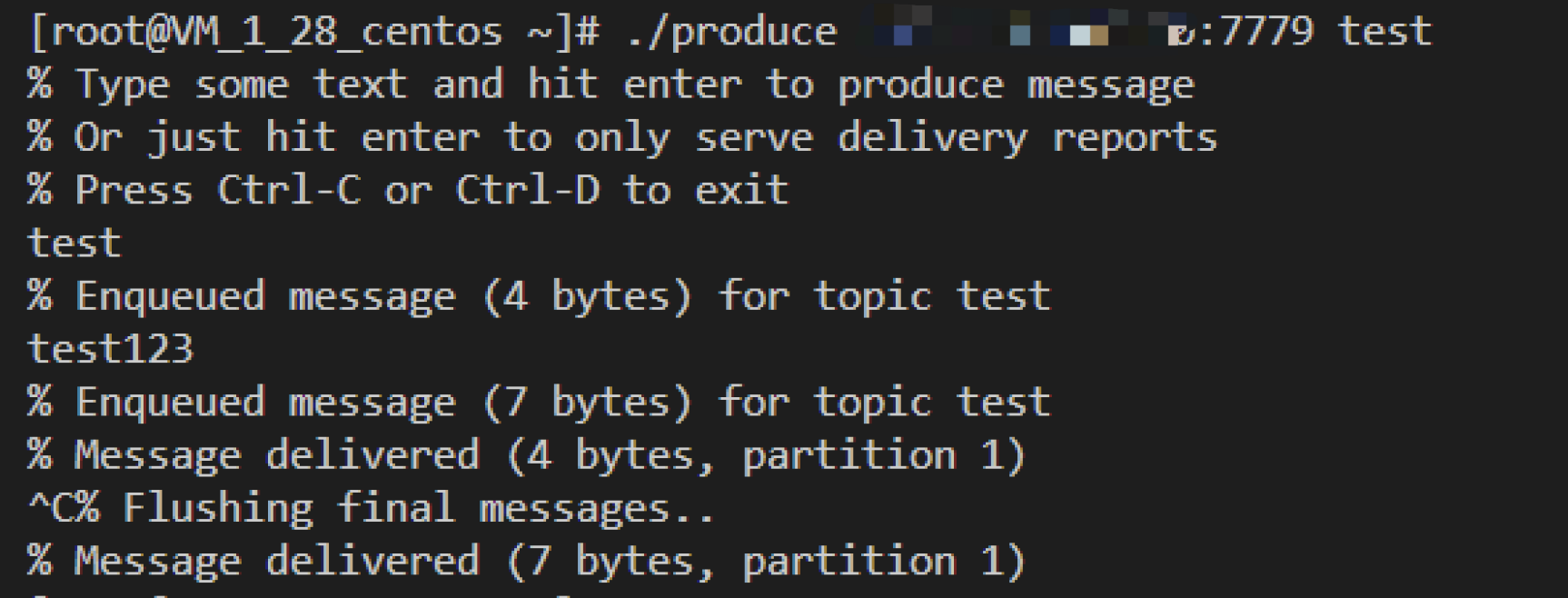

The execution result is as follows:

4. On the Topic Management page in the CKafka console, select the corresponding topic and click More > Message Query to view the just sent message.


Step 3. Consume the message

1. Create the consumer.c file.

/*
* librdkafka - Apache Kafka C library
*
* Copyright (c) 2019, Magnus Edenhill
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions are met:
*
* 1. Redistributions of source code must retain the above copyright notice,
*    this list of conditions and the following disclaimer.
* 2. Redistributions in binary form must reproduce the above copyright notice,
*    this list of conditions and the following disclaimer in the documentation
*    and/or other materials provided with the distribution.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
* IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
* ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE
* LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
* CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
* SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
* INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
* CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
* ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
* POSSIBILITY OF SUCH DAMAGE.
*/
/**
* Simple high-level balanced Apache Kafka consumer
* using the Kafka driver from librdkafka
* (https://github.com/edenhill/librdkafka)
*/
#include <stdio.h>
#include <signal.h>
#include <string.h>
#include <ctype.h>
#include <librdkafka/rdkafka.h>
static volatile sig_atomic_t run = 1;
/**
* @brief Signal termination of program
*/
static void stop (int sig) {
  run = 0;
}

/**
* @returns 1 if all bytes are printable, else 0.
*/
static int is_printable (const char *buf, size_t size) {
  size_t i;
   for (i = 0 ; i < size ; i++)
      if (!isprint((int)buf[i]))
          return 0;
   return 1;
}
int main (int argc, char **argv) {
  rd_kafka_t *rk;          /* Consumer instance handle */
  rd_kafka_conf_t *conf;   /* Temporary configuration object */
  rd_kafka_resp_err_t err; /* librdkafka API error code */
  char errstr[512];        /* librdkafka API error reporting buffer */
  const char *brokers;     /* Argument: broker list */
  const char *groupid;     /* Argument: Consumer group id */
  char **topics;           /* Argument: list of topics to subscribe to */
  int topic_cnt;           /* Number of topics to subscribe to */
  rd_kafka_topic_partition_list_t *subscription; /* Subscribed topics */
  int i;
   /*
   * Argument validation
   */
  if (argc < 4) {
      fprintf(stderr,
              "%% Usage: "
              "%s <broker> <group.id> <topic1> <topic2>..\n",
              argv[0]);
      return 1;
  }
   brokers   = argv[1];
  groupid   = argv[2];
  topics    = &argv[3];
  topic_cnt = argc - 3;
    /*
   * Create Kafka client configuration place-holder
   */
  conf = rd_kafka_conf_new();
   /* Set bootstrap broker(s) as a comma-separated list of
   * host or host:port (default port 9092).
   * librdkafka will use the bootstrap brokers to acquire the full
   * set of brokers from the cluster. */
  if (rd_kafka_conf_set(conf, "bootstrap.servers", brokers,
                        errstr, sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr, "%s\n", errstr);
      rd_kafka_conf_destroy(conf);
      return 1;
  }
   /* Set the consumer group id.
   * All consumers sharing the same group id will join the same
   * group, and the subscribed topic' partitions will be assigned
   * according to the partition.assignment.strategy
   * (consumer config property) to the consumers in the group. */
  if (rd_kafka_conf_set(conf, "group.id", groupid,
                        errstr, sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr, "%s\n", errstr);
      rd_kafka_conf_destroy(conf);
      return 1;
  }
   /* If there is no previously committed offset for a partition
   * the auto.offset.reset strategy will be used to decide where
   * in the partition to start fetching messages.
   * By setting this to earliest the consumer will read all messages
   * in the partition if there was no previously committed offset. */
  if (rd_kafka_conf_set(conf, "auto.offset.reset", "earliest",
                        errstr, sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr, "%s\n", errstr);
      rd_kafka_conf_destroy(conf);
      return 1;
  }
  /* Tencent Cloud recommended configuration parameters
    * https://www.tencentcloud.com/document/product/597/30203?from_cn_redirect=1
    */
  if(rd_kafka_conf_set(conf,"debug","all",errstr,sizeof(errstr))!= RD_KAFKA_CONF_OK) {
      fprintf(stderr,"%s\n",errstr);
      return 1;
  }
   if(rd_kafka_conf_set(conf,"session.timeout.ms","10000",errstr,sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr,"%s\n",errstr);
      return 1;
  }
  if(rd_kafka_conf_set(conf,"heartbeat.interval.ms","3000",errstr,sizeof(errstr)) != RD_KAFKA_CONF_OK) {
      fprintf(stderr,"%s\n",errstr);
      return 1;
  }
   /*
   * Create consumer instance.
   *
   * NOTE: rd_kafka_new() takes ownership of the conf object
   *       and the application must not reference it again after
   *       this call.
   */
  rk = rd_kafka_new(RD_KAFKA_CONSUMER, conf, errstr, sizeof(errstr));
  if (!rk) {
      fprintf(stderr,
              "%% Failed to create new consumer: %s\n", errstr);
      return 1;
  }
   conf = NULL; /* Configuration object is now owned, and freed,
                    * by the rd_kafka_t instance. */
    /* Redirect all messages from per-partition queues to
   * the main queue so that messages can be consumed with one
   * call from all assigned partitions.
   *
   * The alternative is to poll the main queue (for events)
   * and each partition queue separately, which requires setting
   * up a rebalance callback and keeping track of the assignment:
   * but that is more complex and typically not recommended. */
  rd_kafka_poll_set_consumer(rk);
    /* Convert the list of topics to a format suitable for librdkafka */
  subscription = rd_kafka_topic_partition_list_new(topic_cnt);
  for (i = 0 ; i < topic_cnt ; i++)
      rd_kafka_topic_partition_list_add(subscription,
                                        topics[i],
              /* the partition is ignored
               * by subscribe() */
                                        RD_KAFKA_PARTITION_UA);
   /* Subscribe to the list of topics */
  err = rd_kafka_subscribe(rk, subscription);
  if (err) {
      fprintf(stderr,
              "%% Failed to subscribe to %d topics: %s\n",
              subscription->cnt, rd_kafka_err2str(err));
      rd_kafka_topic_partition_list_destroy(subscription);
      rd_kafka_destroy(rk);
      return 1;
  }
   fprintf(stderr,
          "%% Subscribed to %d topic(s), "
          "waiting for rebalance and messages...\n",
          subscription->cnt);
   rd_kafka_topic_partition_list_destroy(subscription);
    /* Signal handler for clean shutdown */
  signal(SIGINT, stop);
   /* Subscribing to topics will trigger a group rebalance
   * which may take some time to finish, but there is no need
   * for the application to handle this idle period in a special way
   * since a rebalance may happen at any time.
   * Start polling for messages. */
   while (run) {
      rd_kafka_message_t *rkm;
       rkm = rd_kafka_consumer_poll(rk, 100);
      if (!rkm)
          continue; /* Timeout: no message within 100ms,
                                 *  try again. This short timeout allows
                                 *  checking for `run` at frequent intervals.
                                 */
       /* consumer_poll() will return either a proper message
       * or a consumer error (rkm->err is set). */
      if (rkm->err) {
          /* Consumer errors are generally to be considered
           * informational as the consumer will automatically
           * try to recover from all types of errors. */
          fprintf(stderr,
                  "%% Consumer error: %s\n",
                  rd_kafka_message_errstr(rkm));
          rd_kafka_message_destroy(rkm);
          continue;
      }
       /* Proper message. */
      printf("Message on %s [%"PRId32"] at offset %"PRId64":\n",
              rd_kafka_topic_name(rkm->rkt), rkm->partition,
              rkm->offset);
       /* Print the message key. */
      if (rkm->key && is_printable(rkm->key, rkm->key_len))
          printf(" Key: %.*s\n",
                 (int)rkm->key_len, (const char *)rkm->key);
      else if (rkm->key)
          printf(" Key: (%d bytes)\n", (int)rkm->key_len);
       /* Print the message value/payload. */
      if (rkm->payload && is_printable(rkm->payload, rkm->len))
          printf(" Value: %.*s\n",
                 (int)rkm->len, (const char *)rkm->payload);
      else if (rkm->payload)
          printf(" Value: (%d bytes)\n", (int)rkm->len);
       rd_kafka_message_destroy(rkm);
  }
    /* Close the consumer: commit final offsets and leave the group. */
  fprintf(stderr, "%% Closing consumer\n");
  rd_kafka_consumer_close(rk);
    /* Destroy the consumer */
  rd_kafka_destroy(rk);
   return 0;
}

2. Run the following command to compile consumer.c.

gcc -lrdkafka ./consumer.c -o consumer

3. Run the following command to send the message.

./consumer <broker> <group.id> <topic1> <topic2>..

Parameter	Description
broker	Accessed network, which can be copied from the Network column in the Access Mode section on the Instance Details page in the console.
group.id	Consumer group name. You can customize it. After the demo runs successfully, you can see the consumer on the Consumer Group page.
topic1 topic2..	Topic name, which can be copied from the Topic Management page in the console.

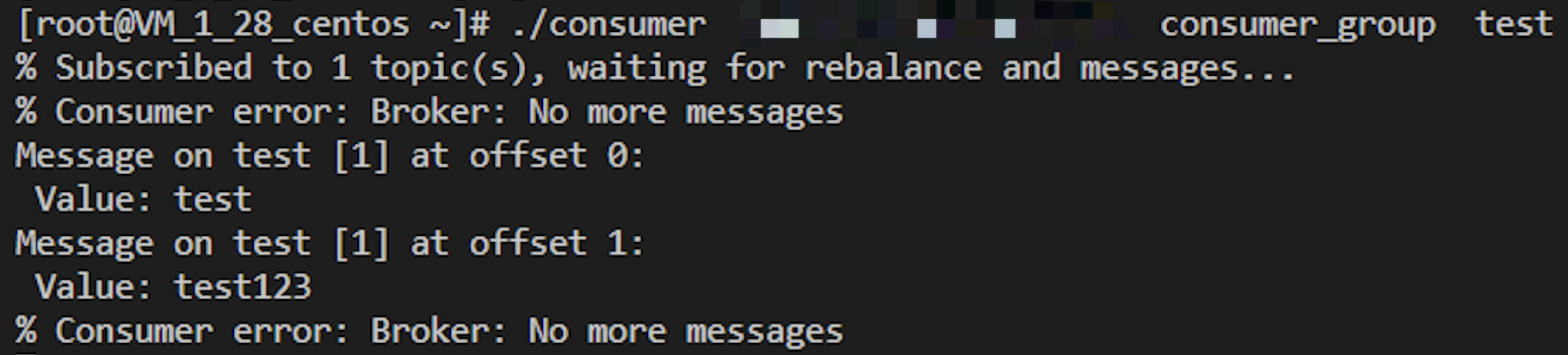

The execution result is as follows:

4. On the Consumer Group page in the CKafka console, select the corresponding consumer group, enter the topic name in Topic Name, and click Query Details to view the consumption details.
