VPC Access
Last updated: 2024-01-09 15:00:32
Download PDF

Overview

This document describes how to access CKafka to send/receive messages with the SDK for Node.js in a VPC.

Prerequisites

You have installed GCC.
You have installed Node.js.
You have downloaded the demo.

Directions

Preparations

1. Upload the nodejskafkademo in the downloaded demo to the Linux server.
2. Log in to the Linux server and enter the nodejskafkademo directory.

Step 1. Install the C++ dependent library

1. Run the following command to switch to the yum source configuration directory /etc/yum.repos.d/.
cd /etc/yum.repos.d/
2. Create the yum source configuration file confluent.repo.
[Confluent.dist]
name=Confluent repository (dist)
baseurl=https://packages.confluent.io/rpm/5.1/7
gpgcheck=1
gpgkey=https://packages.confluent.io/rpm/5.1/archive.key
enabled=1
[Confluent]
name=Confluent repository
baseurl=https://packages.confluent.io/rpm/5.1
gpgcheck=1
gpgkey=https://packages.confluent.io/rpm/5.1/archive.key
enabled=1
3. Run the following command to install the C++ dependent library.
yum install librdkafka-devel

Step 2. Install the Node.js dependent library

1. Run the following command to specify the OpenSSL header file path for the preprocessor.
export CPPFLAGS=-I/usr/local/opt/openssl/include
2. Run the following command to specify the OpenSSL library path for the connector.
export LDFLAGS=-L/usr/local/opt/openssl/lib
3. Run the following command to install the Node.js dependent library.
npm install i --unsafe-perm node-rdkafka

Step 3. Prepare configurations

Create the CKafka configuration file setting.js.
module.exports = {
    'bootstrap_servers': ["xxx.xx.xxx:xxxx"],
    'topic_name': 'xxx',
    'group_id': 'xxx'
}
Parameter
Description
bootstrap_servers
Accessed network, which can be copied from the Network column in the Access Mode section in Basic Info on the instance details page in the console.

topic_name

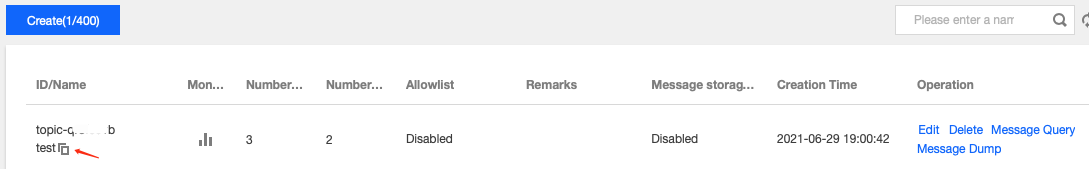

Topic name, which can be copied on the Topic Management page in the console.

group_id
You can customize it. After the demo runs successfully, you can see the consumer group on the Consumer Group page.

Step 4. Send messages

1. Write a message production program named producer.js.
const Kafka = require('node-rdkafka');
   const config = require('./setting');
   console.log("features:" + Kafka.features);
   console.log(Kafka.librdkafkaVersion);

   var producer = new Kafka.Producer({
       'api.version.request': 'true',
       // To set the entry service, obtain the corresponding service address in the console.
       'bootstrap.servers': config['bootstrap_servers'],
       'dr_cb': true,
       'dr_msg_cb': true,

       // Number of retries upon request error. We recommend that you set the parameter to a value greater than 0 to enable retries and guarantee that messages are not lost to the greatest extent possible.
       'retries': '0',
       // Interval between a request failure and the next retry
       "retry.backoff.ms": 100,
       // Network request timeout of the producer
       'socket.timeout.ms': 6000,
   });

   var connected = false

   producer.setPollInterval(100);

   producer.connect();

   producer.on('ready', function() {
   connected = true
   console.log("connect ok")
   });

   producer.on("disconnected", function() {
   connected = false;
   producer.connect();
   })

   producer.on('event.log', function(event) {
       console.log("event.log", event);
   });

   producer.on("error", function(error) {
       console.log("error:" + error);
   });

   function produce() {
       try {
           producer.produce(
           config['topic_name'],
           null,
           new Buffer('Hello CKafka Default'),
           null,
           Date.now()
           );
       } catch (err) {
           console.error('Error occurred when sending message(s)');
           console.error(err);
       }

   }

   producer.on('delivery-report', function(err, report) {
       console.log("delivery-report: producer ok");
   });

   producer.on('event.error', function(err) {
       console.error('event.error:' + err);
   })

   setInterval(produce, 1000, "Interval");
2. Run the following command to send messages.
node producer.js

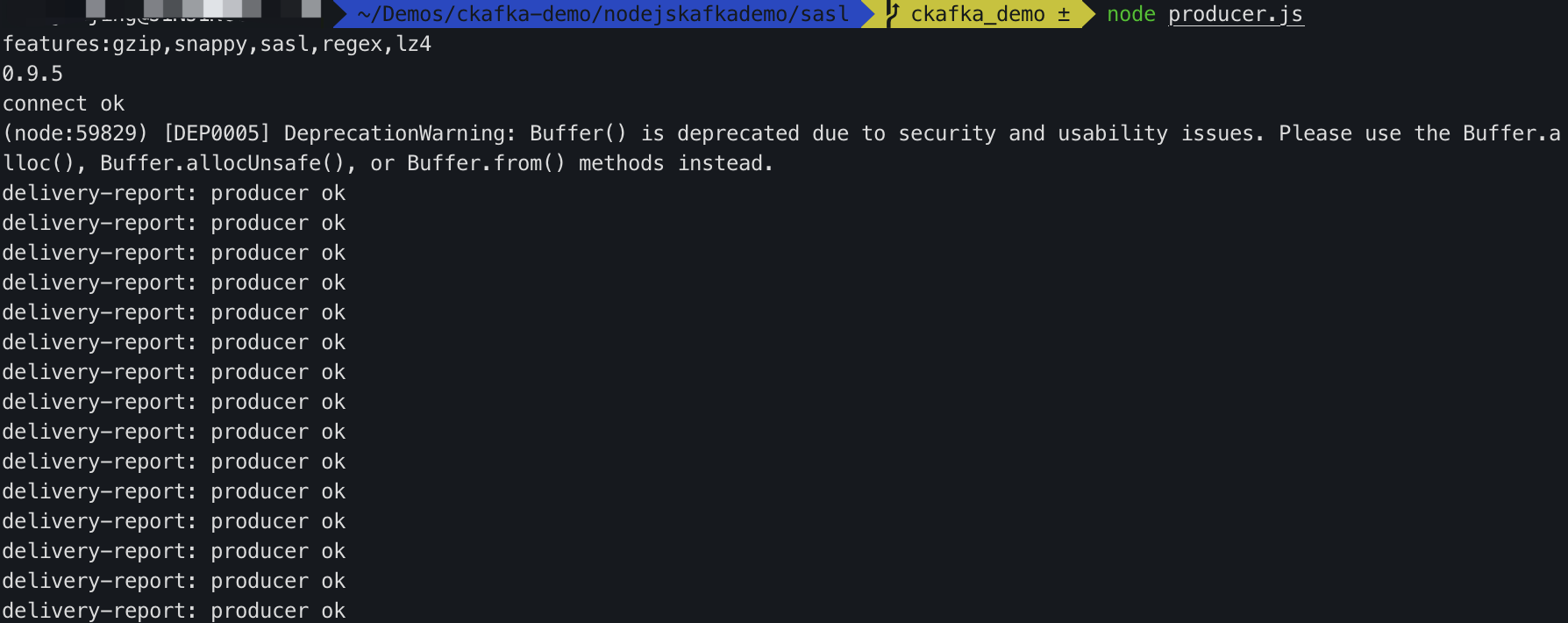

3. View the execution result.

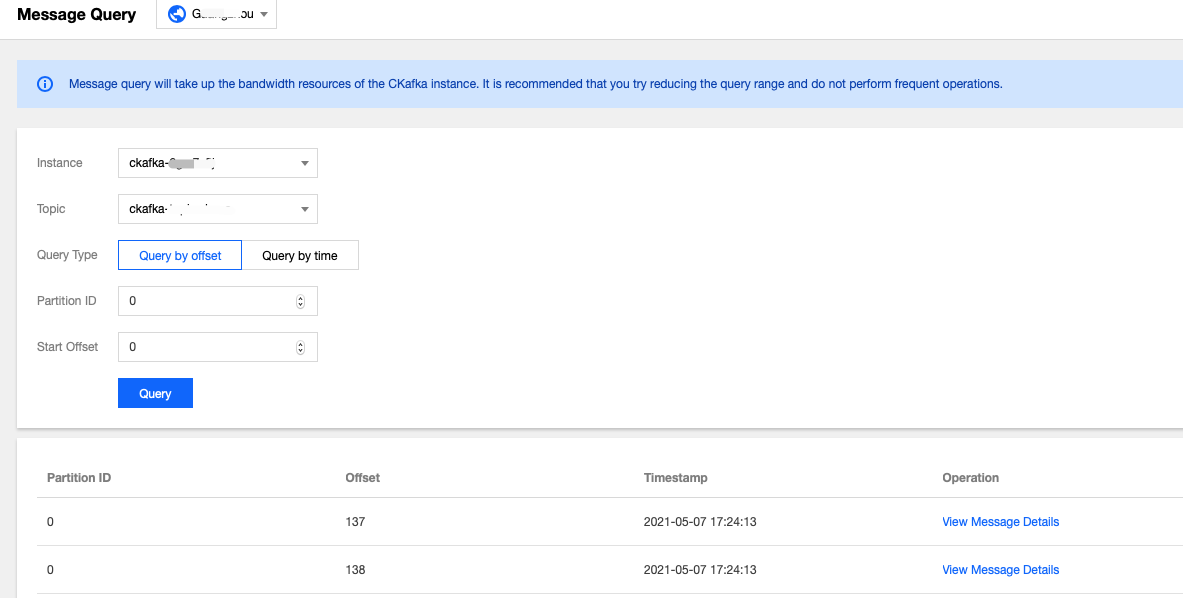

4. On the Topic Management tab on the instance details page in the CKafka console, select the target topic and click More > Message Query to view the message just sent.




Step 5. Subscribe to messages

1. Create the message consumption program consumer.js.
const Kafka = require('node-rdkafka');
   const config = require('./setting');
   console.log(Kafka.features);
   console.log(Kafka.librdkafkaVersion);
   console.log(config)

   var consumer = new Kafka.KafkaConsumer({
       'api.version.request': 'true',
       // To set the entry service, obtain the corresponding service address in the console.
       'bootstrap.servers': config['bootstrap_servers'],
       'group.id' : config['group_id'],

       // Consumer timeout period when the Kafka consumer grouping mechanism is used. If the broker does not receive the heartbeat of the consumer within this period,
       // the consumer will be considered to have failed and the broker will initiate rebalancing again.
       'session.timeout.ms': 10000,
       // Client request timeout period. If no response is received after this time elapses, the request will time out and fail.
       'metadata.request.timeout.ms': 305000,
       // Set the internal retry interval of the client
       'reconnect.backoff.max.ms': 3000

   });

   consumer.connect();

   consumer.on('ready', function() {
   console.log("connect ok");
   consumer.subscribe([config['topic_name']]);
   consumer.consume();
   })

   consumer.on('data', function(data) {
   console.log(data);
   });

   consumer.on('event.log', function(event) {
       console.log("event.log", event);
   });

   consumer.on('error', function(error) {
       console.log("error:" + error);
   });

   consumer.on('event', function(event) {
           console.log("event:" + event);
   });
2. Execute the following command to send messages.
node consumer.js

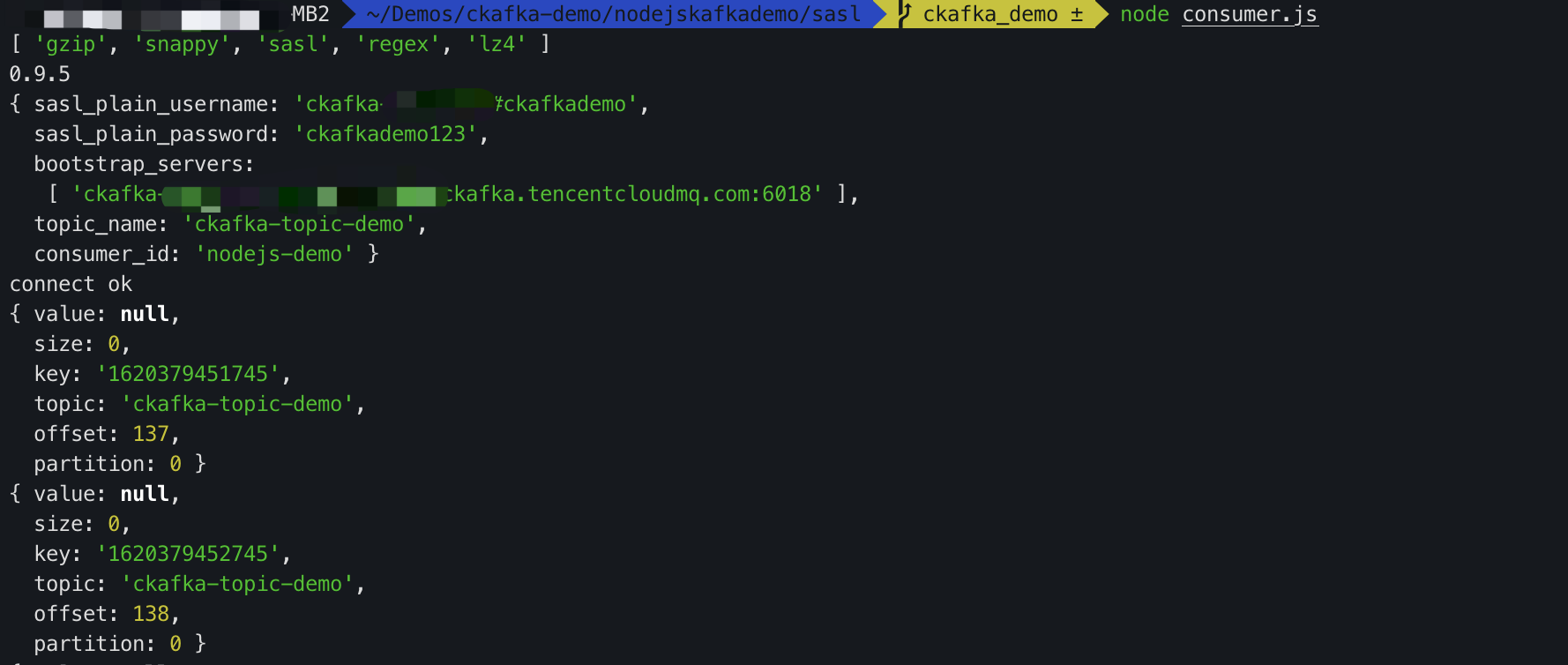

3. View the execution result.

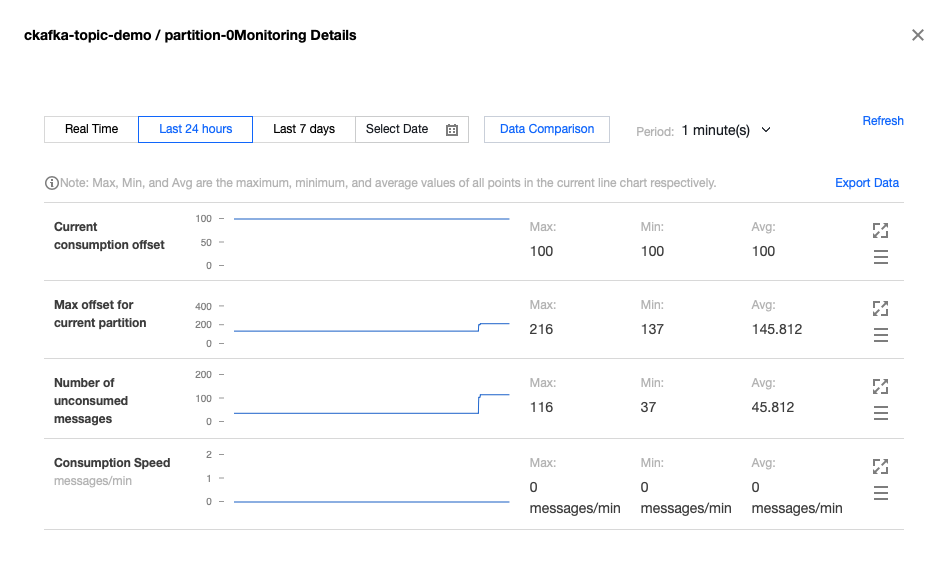

4. On the Consumer Group page in the Ckafka console, click the triangle icon on the left of the target consumer group name, enter the topic name in the search box, and click View Details to view the consumption details.
5.
