Recording Event Notification

Last updated: 2024-07-24 10:32:13
    The live recording feature records live streams in real time according to the recording template bound to the push domain name, and then stores the recording files in VOD. A recording callback notifies you of the information of a recording file, including the start and end time of recording, the recording file ID, the file size, and the download URL. To receive recording callbacks, you need to configure a callback template, specify a server address for the callback, and bind the template to your push domain name. When a recording event occurs, the CSS backend will send the recording file information to the specified server.
    This document describes the fields in a callback notification sent by CSS after a recording file event occurs.

    Notes

    This document assumes you already know how to configure and receive callbacks.
    Recording files are stored in the VOD console by default. Therefore, you need to activate VOD first and make sure it does not have overdue payments.
    If a recording task is created by the CreateRecordTask API, the recording callback returned will not include the stream_param parameters of the push URL. They will be included if a task is created using another method.
    If HLS recording resumption is enabled, a callback will be triggered only for the final recording file. No callbacks will be sent when push is interrupted.

    Recording Event Parameters

    Event type

    Event Type
    Value
    Live recording (files)
    event_type = 100

    Common callback parameters

    Parameter
    Type
    Description
    t
    int64
    The time (Unix timestamp) when the notification signature expires.
    The default validity period of a callback notification from Tencent Cloud is 10 minutes. After the time specified by the t value elapses, a notification will be considered invalid. This can prevent network replay attacks.
    The value of t is a decimal Unix timestamp, which is the number of seconds that have elapsed since 00:00:00 (UTC/GMT time), January 1, 1970.
    sign
    string
    The security signature, sign = MD5(key + t). Tencent Cloud splices the encryption key and t, generates an MD5 hash of the spliced string, and embeds it in callback notifications. Your backend server performs the same calculation when it receives a callback, and if the signature matches, it indicates that the notification is from Tencent Cloud.
    Note:

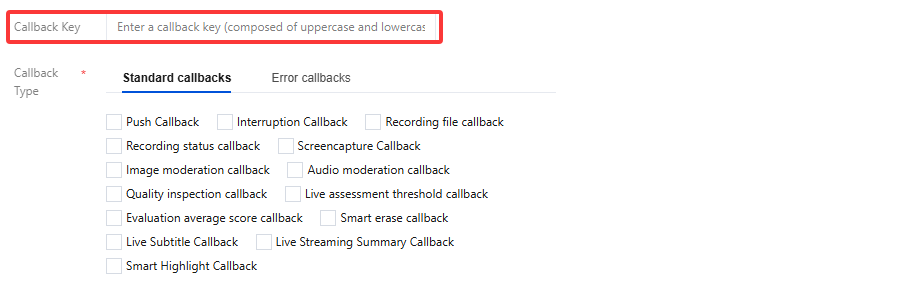

    You can set the callback key in Feature Configuration > Live Stream Callback, which is used for authentication. We recommend you set this field to ensure data security.




    Recording callback parameters

    Parameter
    Type
    Description
    appid
    int
    The user APPID.
    app
    string
    The push domain.
    appname
    string
    The push path.
    stream_id
    string
    The live stream name.
    channel_id
    string
    Same as the stream ID.
    file_id
    string
    The VOD file ID, which uniquely identifies a file in VOD.
    record_file_id
    string
    The recording file ID.
    file_format
    string
    The file format. Valid values: flv, hls, mp4, aac.
    task_id
    string
    The ID of a recording task, which is returned by the CreateRecordTask API and is valid only if the task is created by the API.
    start_time
    int64
    The recording start time.
    end_time
    int64
    The recording end time.
    start_time_usec
    int
    The recording start time (microseconds).
    end_time_usec
    int
    The recording end time (microseconds).
    duration
    int64
    The duration of the recording file, in seconds. The difference between start_time and end_time may be different from the duration value under normal circumstances, especially in cases of weak network connections and stream pushing anomalies.
    file_size
    uint64
    The recording file size, in bytes.
    stream_param
    string
    The push URL parameters (custom).
    video_url
    string
    The download URL of the recording file.
    media_start_time
    int
    The PTS when the stream is first pulled for recording. This is not necessarily the PTS of the first frame of the recording file.
    record_bps
    int
    The bitrate, in kbps, of the transcoding output recorded.
    callback_ext
    The JSON object string.
    The JSON object includes multiple fields:
    video_codec indicates the video codec.
    resolution indicates the resolution of the pushed stream.
    session_id indicates the recording task ID.
    These are all additional fields of a recording callback. We recommend you do not rely your business logic too much on them.

    Sample callback

    {
    "event_type": 100,

    "appid": 12345678,

    "app": "yourapp",

    "callback_ext": "{\\"video_codec\\":\\"h264\\",\\"resolution\\":\\"640x480\\"}",

    "appname": "yourappname",

    "stream_id":"stream_test",

    "channel_id":"stream_test",

    "file_id":"1234567890",

    "record_file_id": "1234567890",

    "file_format":"hls",

    "task_id":"UpTbk5RSVhRQ********************0xTSlNTQltlRVRLU1JAWW9EUb",

    "start_time":1642089445,

    "end_time":1642089598,

    "start_time_usec": 316441,

    "end_time_usec": 618577,

    "duration":154,

    "file_size":277941079,

    "stream_param":"stream_param=test",

    "video_url":"http://12345678.vod2.myqcloud.com/xxxx/yyyy/zzzz.m3u8",

    "media_start_time": 135802,

    "record_bps": 0,

    "sign":"ca3e25e**********09a9ae7281e300d",

    "t":1545030873
    }
