    Live Broadcasting Image Audit Event Notification

    Last updated: 2024-01-30 15:07:04
    Download PDF
      If you have configured an image moderation callback address, the server will return the moderation results in JSON to the specified callback address after the image moderation is complete. You can then proceed with subsequent file processing operation based on the callback content.
      This document describes the notification fields of the callback message sent by Tencent Cloud Streaming Services (CSS) to the user after the image moderation callback event is triggered.

      Note

      You need to understand how to configure callbacks and how you will receive messages via Tencent Cloud CSS before reading this document. For more information, see How to Receive Event Notifications.
      In streaming image moderation, only potentially non-compliant results are called back by default, not normal results.
      It is recommended that you employ the type, score, and suggestion parameters from the callback message to moderate non-compliant images. The moderation system does not provide 100% accuracy, so a few images may be identified as potentially non-compliant or incorrectly identified. You can determine whether manual check is required based on the actual application scenario.
      The image moderation service has been upgraded, and some callback message parameters have been adjusted. You are advised to refer to the latest version and the following parameter description. To ensure compatibility with old versions for users, we will still call back some parameters that are currently not used to the receiving server, including: tid, abductionRisk, confidence, normalScore, hotScore, pornScore, terrorScore, polityScore, illegalScore, similarScore, abuseScore, teenagerScore, adScore, and customScore.

      Screencapturing Event Parameters

      Event Type Parameter

      Event Type
      Parameter Value
      Live porn detection
      event_type = 317

      Common Callback Parameters

      Parameter
      Type
      Description
      t
      int64
      Expiration time, which is the Unix timestamp when the event notification signature expires.
      The default validity period of a message notification from Tencent Cloud is 10 minutes. If the time specified by the t value in a message notification has elapsed, then this notification is considered invalid, thereby preventing network replay attacks.
      The format of t is a decimal Unix timestamp, i.e., the number of seconds that have elapsed since 00:00:00 (UTC/GMT time), January 1, 1970.
      sign
      string
      Event notification security signature sign = MD5(key + t).
      Note: Tencent Cloud concatenates the encryption key and t, calculates the sign value through MD5, and places it in the notification message. When your backend server receives the notification message, it can confirm whether the sign is correct based on the same algorithm and then determine whether the message is indeed from the Tencent Cloud backend.
      Note

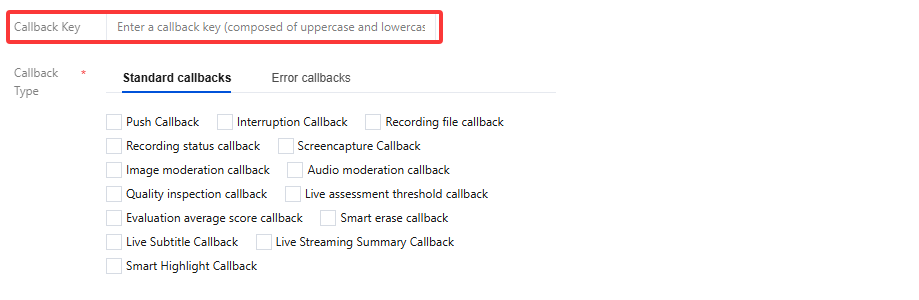

      You can set the callback key in Event Center > Live Stream Callback, which is used for authentication. We recommend you set this field to ensure data security.


      ###Callback message parameters

      Parameter
      Required or Not
      Data Type
      Description
      streamId
      No
      String
      Stream name.
      channelId
      No
      String
      Channel ID.
      Yes
      String
      Link to the alerted image
      type
      Yes
      Array
      Categories of negative labels with the highest priority in the detection result. For details, see the description of label.
      score
      Yes
      Array
      Scores of type
      ocrMsg
      No
      String
      OCR result (if any)
      suggestion
      Yes
      String
      Suggestion. Valid values:
      Block
      Review
      Pass
      label
      Yes
      String
      Negative label with the highest priority in the detection result ( LabelResults). This is the moderation result suggested by the model. We recommend you handle different types of violations and suggestions based on your business needs.
      subLabel
      Yes
      String
      Sub-label under the negative label with the highest priority in the detection result, such as porn - sexual acts. If no content is sub-labeled, this parameter will be empty.
      labelResults
      No
      Negative label hit details of the category model, including the detected porn content, ads, terrorism content, and politically sensitive content.
      Note: This field may return null , indicating that no valid values can be obtained.
      objectResults
      No
      Detection result of the object model, including label name, hit score, coordinates, scenario, and suggested operation regarding objects, advertising logos, QR codes, etc. For details, see the description of the data structure of ObjectResults. Note: This field may return null , indicating that no valid values can be obtained.
      ocrResults
      No
      OCR result, including text coordinates, recognized text, suggested operation, etc. For details, see the description of the data structure of OcrResults.
      Note: This field may return null , indicating that no valid values can be obtained.
      libResults
      No
      Blocklist/Allowlist moderation result
      screenshotTime
      Yes
      Number
      Screenshot time
      sendTime
      Yes
      Number
      Time when the request was sent, in Unix timestamp format
      stream_param
      No
      String
      Push parameters
      app
      No
      String
      Push domain name.
      appid
      No
      Number
      Application ID
      appname
      No
      String
      Push path

      LabelResult

      Hit result of the category model
      Parameter
      Type
      Description
      Scene
      String
      Scenario identified by the model, such as advertising, pornographic, and harmful
      Suggestion
      String
      Operation suggested by the system for the current negative label. We recommend you handle different types of violations and suggestions based on your business needs. Returned values:
      Block
      Review
      Pass
      label
      String
      Negative label in the detection result
      SubLabel
      String
      Sub-label name
      Score
      Integer
      Hit score of the label model
      Details
      Sub-label hit details of the category model

      LabelDetailItem

      Sub-label hit details of the category model
      Parameter
      Type
      Description
      Id
      Integer
      ID
      Name
      String
      Sub-label name
      Score
      Integer
      Sub-label score. Value range: 0-100

      ObjectResult

      Object detection result
      Parameter
      Type
      Description
      Scene
      String
      Object scenario identified, such as QR code, logo, and OCR
      Suggestion
      String
      Operation suggested by the system for the current negative label. We recommend you handle different types of violations and suggestions based on your business needs. Returned values:
      Block
      Review
      Pass
      label
      String
      Negative label in the detection result
      SubLabel
      String
      Sub-label name
      Score
      Integer
      Sub-label hit score of the scenario model. Value range: 0-100
      Names
      Array of String
      List of object names
      Details
      Array of ObjectDetail
      Object detection details

      ObjectDetail

      Object detection details. When the detection scenario is object, advertising logo, or QR code, it returns the label name, label value, label score, and location information of the detection frame.
      Parameter
      Type
      Description
      Id
      Integer
      ID of the object identified
      Name
      String
      Object label identified
      Value
      String
      Value or content of the object label identified. For example, if the label is QR code ( QrCode), this parameter is the URL of the QR code.
      Score
      Integer
      Hit score of the object label. Value range: 0-100. For example, QrCode 99 indicates a high likelihood that the content is a QR code.
      Location
      Coordinates (of the top-left corner), dimensions, and rotation of the object detection frame

      Location

      Coordinates and other information of the detection frame
      Parameter
      Type
      Description
      X
      Float
      Horizontal coordinate of the top-left corner
      Y
      Float
      Vertical coordinate of the top-left corner
      Width
      Float
      Width
      Height
      Float
      Height
      Rotate
      Float
      Rotation angle of the detection frame

      OcrResult

      OCR result
      Parameter
      Type
      Description
      Scene
      String
      Recognition scenario. Default value: OCR
      Suggestion
      String
      Operation suggested by the system for the negative label with the highest priority. We recommend you handle different types of violations and suggestions based on your business needs. Returned values:
      Block
      Review
      Pass
      label
      String
      Negative label in the detection result
      SubLabel
      String
      Sub-label name
      Score
      Integer
      Sub-label hit score of the scenario model. Value range: 0-100
      Text
      String
      Text
      Details
      Array of OcrTextDetail
      OCR details

      OcrTextDetail

      OCR details
      Parameter
      Type
      Description
      Text
      String
      Text recognized (up to 5,000 bytes)
      label
      String
      Negative label in the detection result
      Keywords
      Array of String
      Keywords hit under the label
      Score
      Integer
      Hit score of the label model. Value range: 0-100
      Location
      OCR text coordinates

      LibResult

      Blocklist/Allowlist result
      Parameter
      Type
      Description
      Scene
      String
      Scenario recognition result of the model. Default value: Similar
      Suggestion
      String
      Operation suggested by the system. We recommend you handle different types of violations and suggestions based on your business needs. Returned values:
      Block
      Review
      Pass
      label
      String
      Negative label in the detection result
      SubLabel
      String
      Sub-label name
      Score
      Integer
      Recognition score of the image search model. Value range: 0-100
      Details
      Array of LibDetail
      Blocklist/Allowlist details

      LibDetail

      Custom list or blocklist/allowlist details
      Parameter
      Type
      Description
      Id
      Integer
      ID
      ImageId
      String
      Image ID
      label
      String
      Negative label in the detection result
      Tag
      String
      Custom label
      Score
      Integer
      Model recognition score. Value range: 0-100

      Callback Message Example

      {
              "ocrMsg": "",
              "type": [1],
              "socre": 99,
              "screenshotTime": 1610640000,
              "level": 0,
              "img": "http://1.1.1.1/download/porn/test.jpg",
              "abductionRisk": [],
              "faceDetails": [],
              "sendTime": 1615859827,
              "suggestion": "Block",
              "label": "Porn",
              "subLabel": "PornHigh",
              "labelResults": [{
                      "HitFlag": 0,
                      "Scene": "Illegal",
                      "Suggestion": "Pass",
                      "Label": "Normal",
                      "SubLabel": "",
                      "Score": 0,
                      "Details": []
              }, {
                      "HitFlag": 1,
                      "Scene": "Porn",
                      "Suggestion": "Block",
                      "Label": "Porn",
                      "SubLabel": "PornHigh",
                      "Score": 99,
                      "Details": [{
                              "Id": 0,
                              "Name": "PornHigh",
                              "Score": 99
                      }, {
                              "Id": 1,
                              "Name": "WomenChest",
                              "Score": 99
                      }]
              }, {
                      "HitFlag": 0,
                      "Scene": "Sexy",
                      "Suggestion": "Pass",
                      "Label": "Normal",
                      "SubLabel": "",
                      "Score": 0,
                      "Details": []
              }, {
                      "HitFlag": 0,
                      "Scene": "Terror",
                      "Suggestion": "Pass",
                      "Label": "Normal",
                      "SubLabel": "",
                      "Score": 0,
                      "Details": []
              }],
              "objectResults": [{
                      "HitFlag": 0,
                      "Scene": "QrCode",
                      "Suggestion": "Pass",
                      "Label": "Normal",
                      "SubLabel": "",
                      "Score": 0,
                      "Names": [],
                      "Details": []
              }, {
                      "HitFlag": 0,
                      "Scene": "MapRecognition",
                      "Suggestion": "Pass",
                      "Label": "Normal",
                      "SubLabel": "",
                      "Score": 0,
                      "Names": [],
                      "Details": []
              }, {
                      "HitFlag": 0,
                      "Scene": "PolityFace",
                      "Suggestion": "Pass",
                      "Label": "Normal",
                      "SubLabel": "",
                      "Score": 0,
                      "Names": [],
                      "Details": []
              }],
              "ocrResults": [{
                      "HitFlag": 0,
                      "Scene": "OCR",
                      "Suggestion": "Pass",
                      "Label": "Normal",
                      "SubLabel": "",
                      "Score": 0,
                      "Text": "",
                      "Details": []
              }],
              "streamId": "teststream",
              "channelId": "teststream",
              "stream_param": "txSecret=40f38f69f574fd51126c421a3d96c374&txTime=5DEBEC80",
              "app": "5000.myqcloud.com",
              "appname": "live",
              "appid": 10000,
              "event_type": 317,
              "sign": "ac920c3e66**********78cf1b5de2c63",
              "t": 1615860427
      }
