Recording Status Event Notification

Last updated: 2024-01-17 17:52:58

Live recording is to record live stream images in real time according to the recording template that has been bound to the push domain name, subsequently generating the corresponding recording files and storing them in Video on Demand. The recording status callback serves to deliver recording status data, which include successful recording startup, failed recording startup, recording pause, successful recording continuation, recording anomalies, and ended recording. To receive callbacks for recording events, you should configure a server address of callback message for the recording events in the callback template and associate it with your push domain name. Once a recording event in the live stream is triggered, the backend of Tencent's Cloud Streaming Services will dispatch the recording event data back to your designated receiving server.
This document mainly describes the callback notification fields sent to users by Tencent's Cloud Streaming Services upon a recording status callback event is triggered.
Notes
Before reading this document, you should know about how Tencent's Cloud Streaming Services configures callback functions and how you can receive these callback messages. For more information, please refer to How to Receive Event Notifications.
In the relay recording callback, the stream ID refers to the Task ID of the relay task.
Description of recording status callback parameters
Event type
Event Type
Explanation of Field Value
LVB recording
event_type = 332
Common callback parameters
Field Name
Type
Description
t
int64
Expiration Time: UNIX timestamp when the event notification signature expires.
By default, the expiration time for notifications from Tencent Cloud is 10 minutes. If the time specified by the t value in a notification has expired, it can be concluded that the notification is invalid and thus can prevent network replay attacks.
The format of t is a decimal UNIX timestamp, which is the number of seconds that have elapsed since January 1, 1970 (midnight UTC/GMT).
sign
string
The security signature of sign = MD5 (key + t) of an event notification. Explanation: Tencent Cloud concatenates the encrypted key and t strings, calculates the sign value through MD5, and puts it in the notification. Upon receiving the notification, your backend server can verify whether sign is correct using the same algorithm, and thus certify if the message is truly from Tencent Cloud backend.
Note:

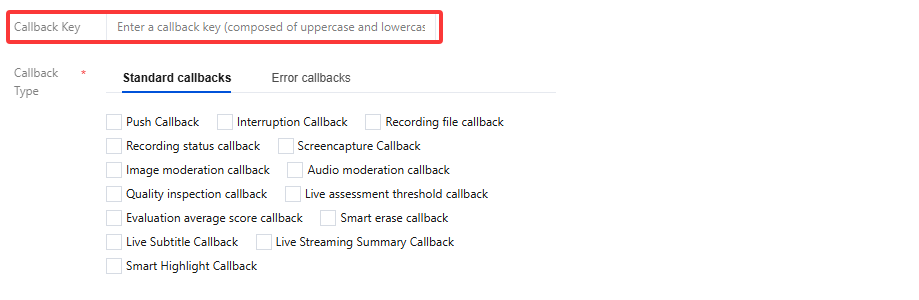

key is the callback key in Feature Configuration > Live Stream Callback, mainly used for authentication. To protect your data security, it is recommended that you fill out the related information.
﻿
﻿
﻿
Recording status callback message parameters
Field Name
Type
Description
appid
int
User APPID﻿
appname
string
Push path
domain
string
Push domain name
event_time
int
Event time
event_type
int
Event type
record_detail
string
file_format: file format
1:FLV
2:HLS
3:MP4
4:AAC
5:MP3
record_bps:Bitrate
start_model:Task initiation method
1:Initiation via recording template rules
5:Initiation via API call
record_content: Recording content
1: Original stream
2: Watermarked stream
3: Transcoding stream
source_type: Recording stream type
1: Live recording
2: Relay recording
codec_temp_id: Transcoding template ID
recordevent
string
record_start_succeeded : Successful recording startup
record_start_failed: Failed recording startup
record_paused : Recording pause
record_resumed : Successful recording continuation
record_error : Recording anomalies
record_ended : Ended recording
seq
string
Message sequence number
session_id
string
Recording task ID
stream_id
string
Live stream name
Sample callback message
{
    "appid":123456789,
    "appname": "live",
    "domain":"****.livepush.myqcloud.com",
    "event_time":1700207929,
    "event_type":332,
    "record_detail":"{\\\\"file_format\\\\":2,\\\\"record_bps\\\\":0,\\\\"start_model\\\\":1,\\\\"record_content\\\\":1,\\\\"source_type\\\\":2,\\\\"codec_temp_id\\\\":0}",
    "record_event":"record_ended",
    "seq": "3266441426274648065",
    "session_id":"2918085116267032069",
    "stream_id":"2991615887188599295"
}
﻿
﻿
﻿
