Last updated: 2024-03-26 10:26:33

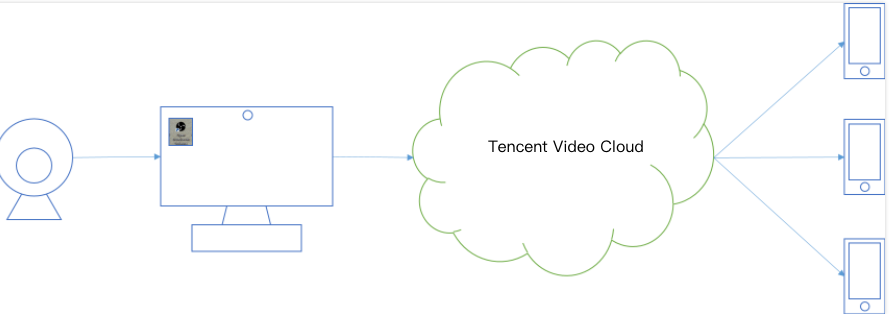

    The nature of CSS is a streaming process, similar to the live broadcast of TV channels sent to audience through cable networks. To complete this process, CSS needs to have a capture and push device (similar to a camera), a cloud live streaming service (similar to a cable network), and a playback device (similar to a TV set). These devices can be smart devices such as mobile phones, PCs, and tablets as well as web browsers. We provide complete software demos for different types of devices.


    1. Activate the CSS service.
    2. Select Domain Management, click Add Domain to add a push domain name with an ICP filing number. For more information, please see Adding Domain Name.
    CSS provides a default push domain name in the format of xxx.livepush.myqcloud.com. We recommend you not use it as the push domain name for your real business.

    Getting Push Address

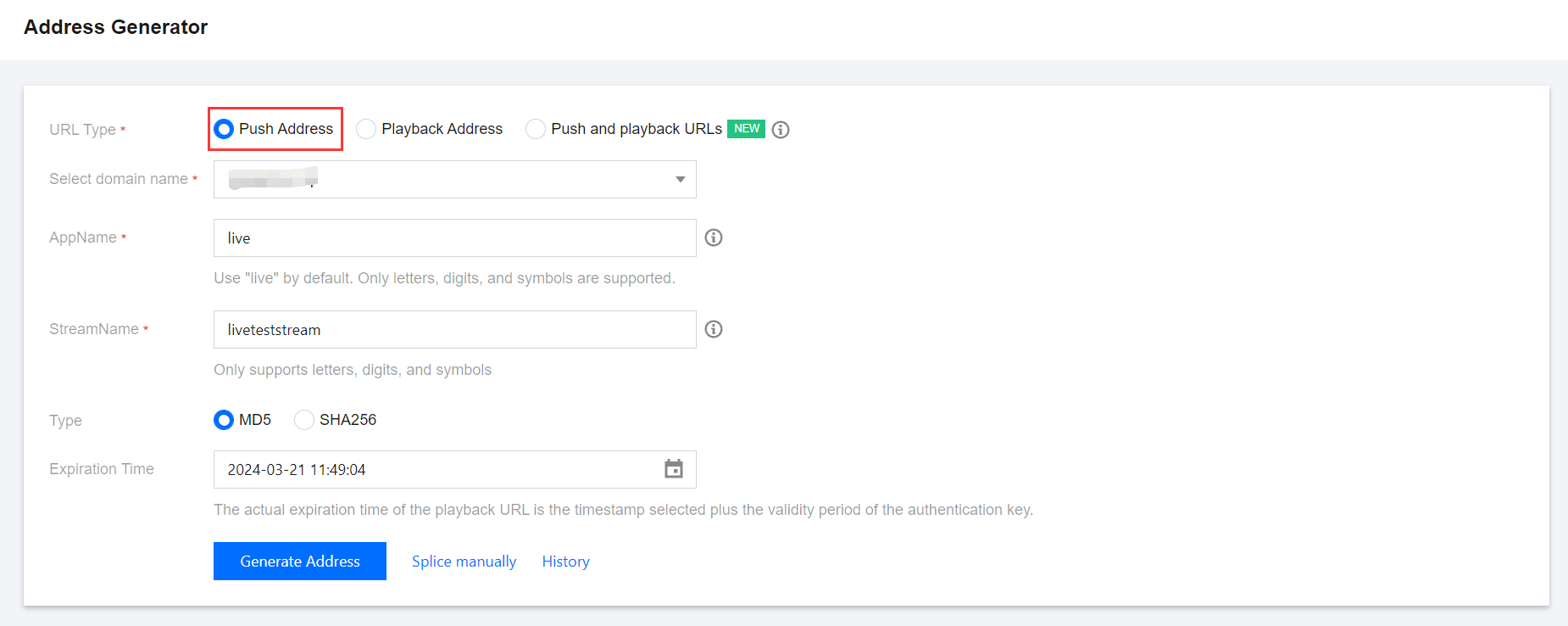

    1. Log in to the CSS console, select Toolkit > Address Generator to generate a push address and configure as follows:
    Select Push Address as the domain type.
    Select the push domain name you added in domain management.
    Enter an AppName (live by default). This is used to differentiate the paths of different applications under the same domain name.
    Enter a custom StreamName, such as liveteststream.
    Select an encryption type based on the security needs and performance considerations. The available encryption types are MD5 or SHA256, with MD5 being the default option.
    Select the expiration time of the address, such as 2024-03-21 11:49:04.
    2. Click Generate Address.
    To ensure the security of your live streams, the system will automatically enable push authentication. You can also select the push domain name to be modified in Domain Management and click Manage on the right to enter the domain name details page and customize the authentication information in Push Configuration. The push address is in the following format: rtmp://domain/AppName/StreamName?txSecret=Md5(key+StreamName+hex(time))&txTime=hex(time)
    In addition to the above method, you can also select a push domain name in Domain Management in the CSS console, click Manage, select Push Configuration, enter the expiration time of the push address and the custom StreamName, and click Generate Push Address to generate a push address. -If you need a persistent push address, you can enter Domain Management, select a push domain name, click Manage, and select Push Configuration for calculation and generation by referring to the sample code in Push Address Sample Code. For more information, please see How can I view the push sample code?.

    Live Push

    You can use the following methods to implement live push based on your business scenario:

    Scenario 1. PC push

    For PC (Windows/macOS), you can choose to install OBS or XSplit for push. The former is a free open-source video recording and streaming program that supports operating systems such as Windows, macOS, and Linux, while the latter is a paid program that offers a standalone installer for live game streaming. For non-game live streaming, we recommend you use BroadCaster.
    This document uses push with OBS as an example to describe the steps. Assume that the prepared push address is:
    1. Go to OBS official website to download and install the push tool.
    2. Open OBS and click Controls > Settings at the bottom to enter the settings page.

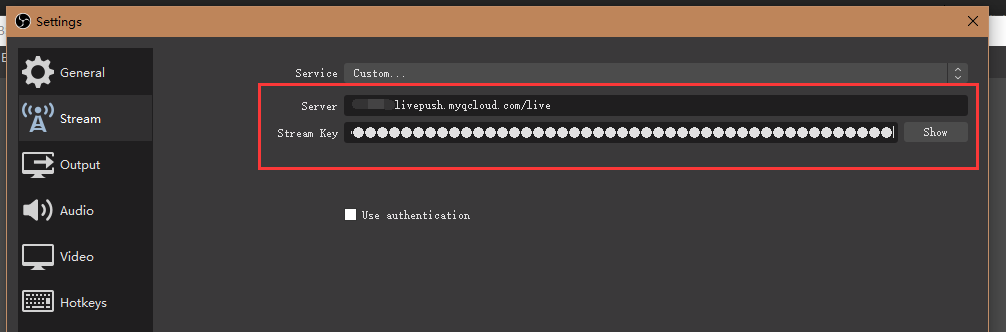

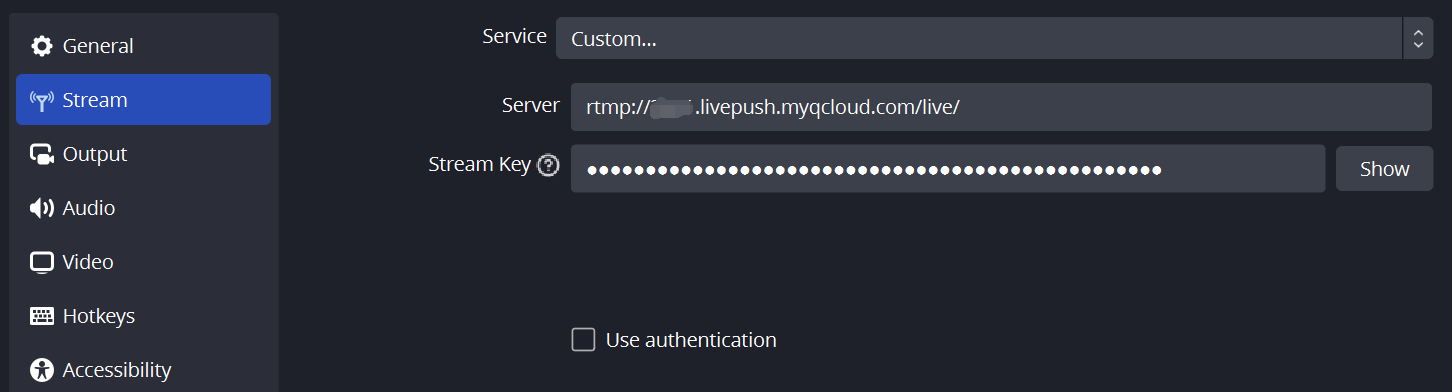

    3. Click Stream to enter the push configuration page and set as follows:
    3.1 Select "Custom" as the service type.
    3.2 Enter the first half of the push address as the server, such as rtmp://xxxx.livepush.myqcloud.com/live/.
    3.3 Enter the second half of the push address as the stream key, such as xxxx?bizid=xxxx&txSecret=xxx&txTime=58540F7F.
    3.4 Click OK in the bottom-right corner.
    4. Click Controls > Start Streaming to test streaming. For more information on how to use OBS, please see Push via OBS.

    Scenario 2. Web push

    1. Log in to the CSS console.
    2. Select Toolkit > Web Push.

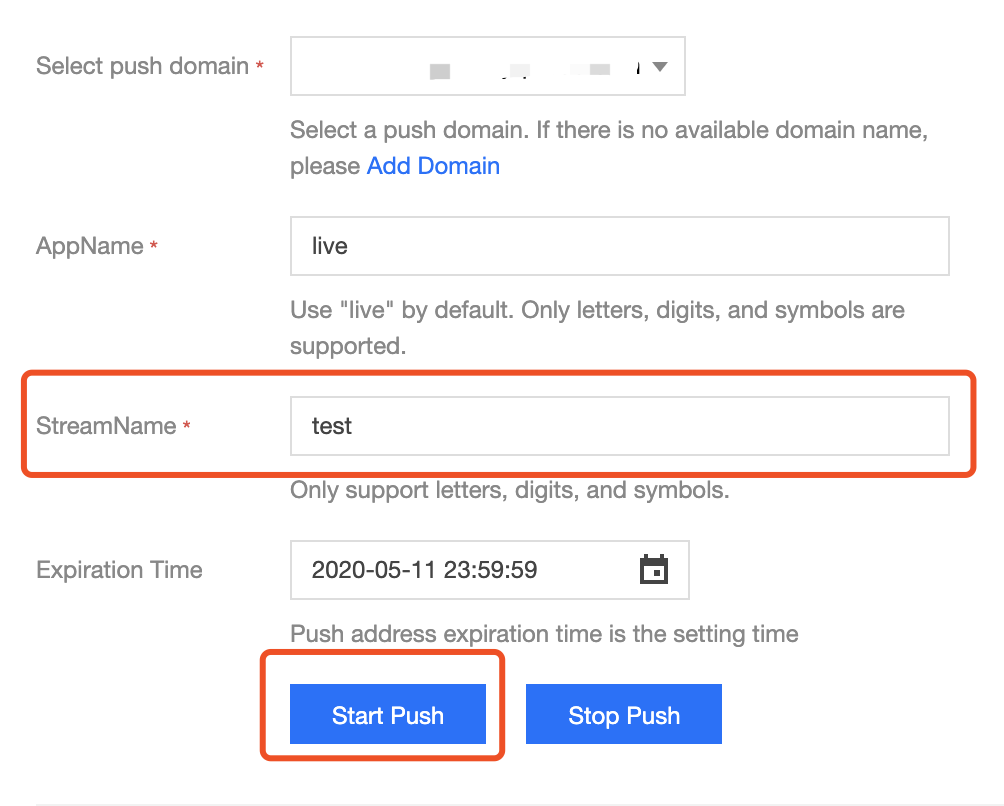

    3. Perform the following settings on the web push page:
    You can choose Single stream or Multiple streams. For detailed operational procedures, see Web Push.
    After deciding on the collection method, configuration, and push settings.

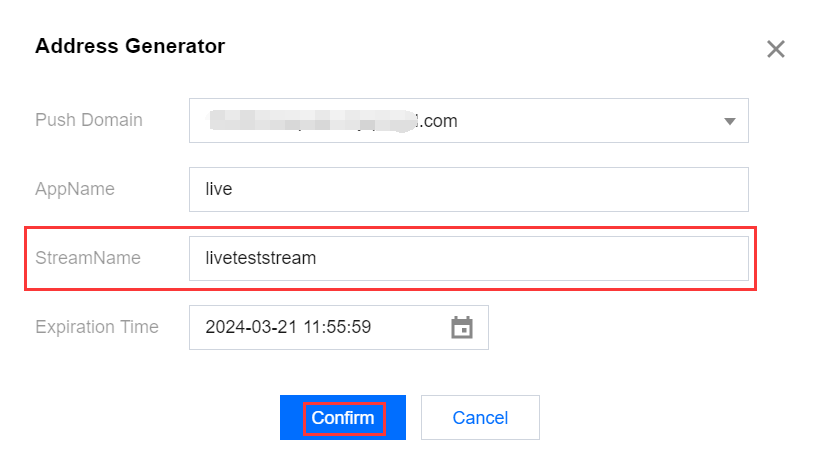

    Click Generate to proceed to the address generator configuration page.
    Select a push domain name.
    Enter an AppName (live by default). This is used to differentiate the paths of different applications under the same domain name.
    Enter a custom StreamName, such as liveteststream.
    Select an expiration time, such as 2024-03-21 11:55:59.
    4. Click Start Push and grant the camera permission to start the push.
    The web push feature requires that your device have a camera installed and its browser support the Flash plugin to call the camera permission.

    Scenario 3. Live SDK push

    If you need to integrate only live push into your existing application, follow the steps below:
    1. Download the MLVB SDK.
    2. Complete the integration as instructed in the iOS or Android integration document.
    The live SDK is a collection of mobile live streaming services. It demonstrates in the form of free source code how to use Tencent Cloud CSS, VOD, IM, and COS to build the most appropriate live streaming solution for your business. For more details, see Mobile Live Video Broadcasting (MLVB) SDK.
